E N G I N E A N D G E N E R A T O R ( B I E N E R G Y M O D E L S )

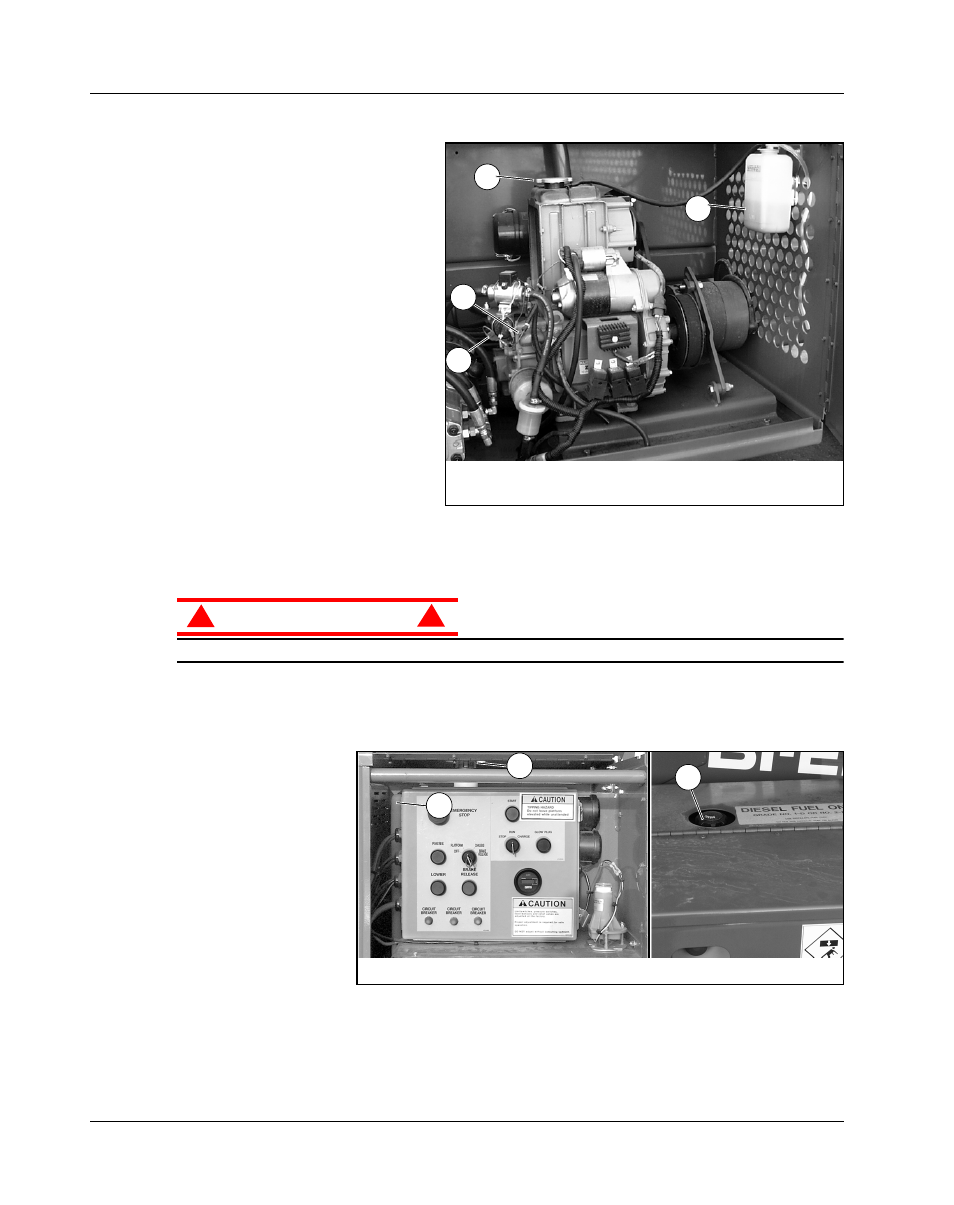

Figure 11: Engine
C OOLANT
The coolant recovery tank is mounted
on the inside of the door of the power
module.
1. Remove the cap on the coolant
recovery tank.
2. Add coolant to the “FULL” mark.
NOTE: Never remove the radiator cap when
the engine is hot.
O IL
The engine must not be running
when you check and replenish the
engine oil. Refer to the Service Manual
to change the oil filter.
1. Remove the oil dipstick and check
the level indicator marks.
2. If the level is low, remove the oil filler cap.
3. Replenish with the proper engine oil (refer to the engine service manual that came with the machine).
C A U T I O N ! !
DO NOT check coolant when engine or radiator is hot; hot coolant can cause severe burns.
F UEL
Figure 12: Fuel Supply
The fuel tank for is
located in the Control
Module, behind the
chassis controls. The
tank is translucent.
Check the fuel level by
observing the level of
the liquid through the
tank.
1
2
1 Radiator Cap
2. Coolant Recovery Tank 3. Oil Filler Cap
4. Oil Dipstick
4
3
1
2
2
1 Fuel Tank 2. Fuel Filler Cap
