DISPLAY RACK #89000

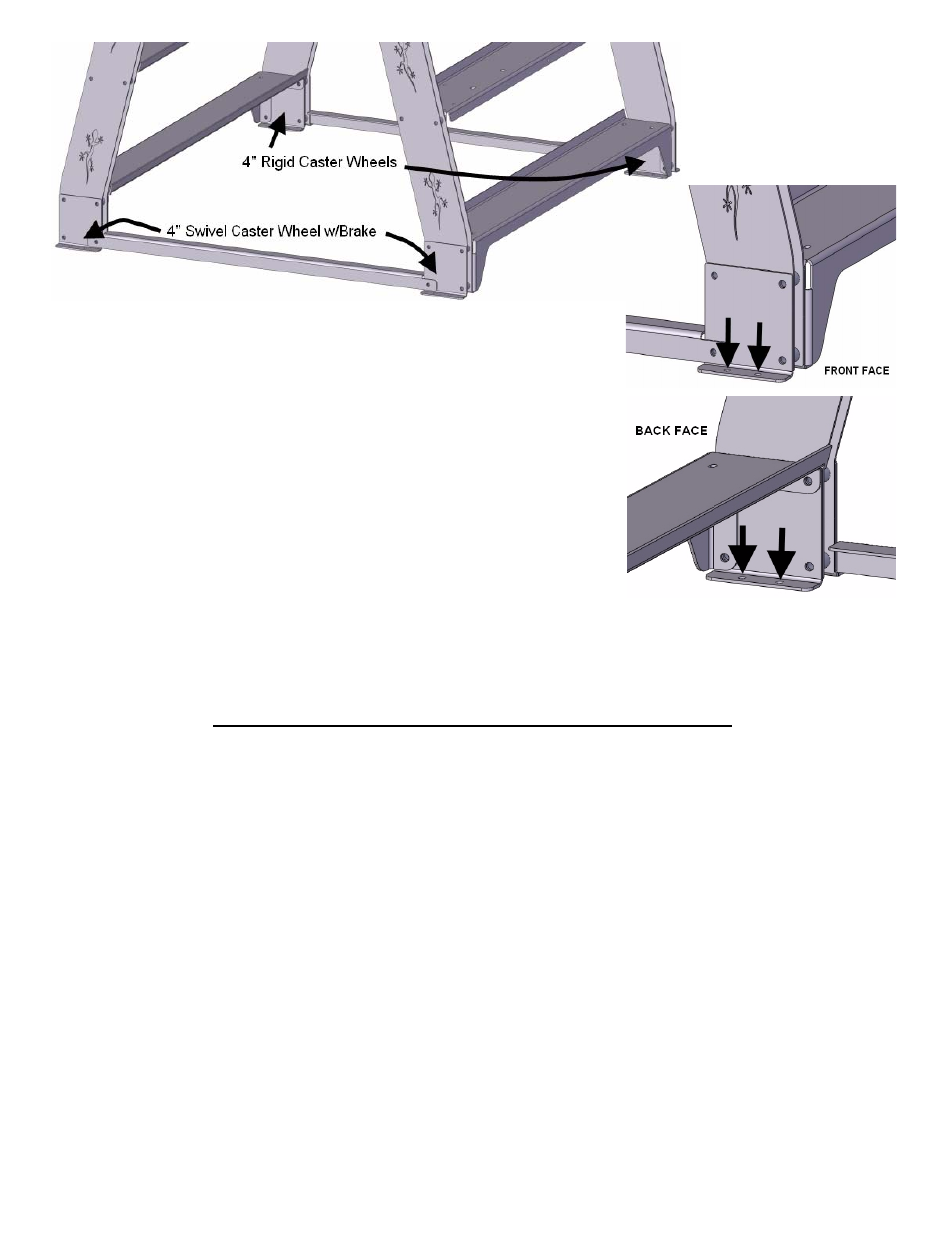

Step 19:
Install 4 kit 5/16”x 3/4” bolts, washers & flange nuts through two
kit caster wheel mount plate(0-11); continue through kit 4”
swivel caster wheel with brake as shown in image.
(Reference arrows for placement.)
(Repeat steps to all caster mount plates and casters.)

Step 20:
Install 4 kit 5/16”x 3/4” bolts, washers & flange nuts through
two kit caster wheel mount plate(0-11); continue through kit
4” rigid caster wheel as shown in image.
(Reference arrows for placement.)
(Repeat steps to all caster mount plates and casters.)

Step 21:

ALL KIT HARDWARE MAY BE TIGHTENED AT THIS STAGE
