7 DISPLAY RACK #89000

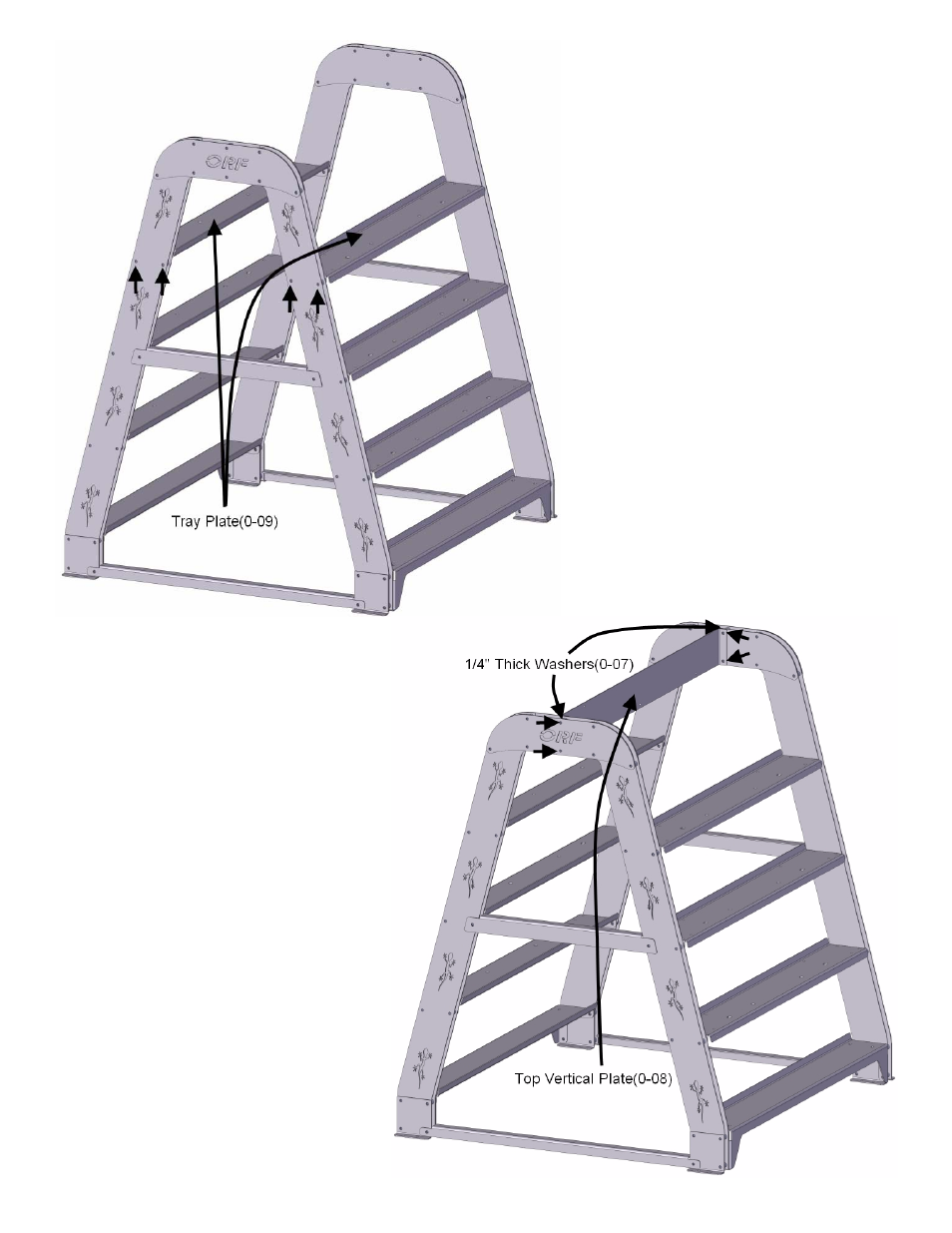

Step 15:
Locate two kit tray plates (0-09)
Step 16:
Use 4 kit 3/8”x 2” bolts, washers,
flange nuts and 4 kit 1” spacer tubes
(In-between legs) through both kit
legs (0-01) & (0-02) to assemble two
kit tray plates (0-09) onto the display
“A”-frame loosely.
(Reference arrows for placement.)
(Repeat steps to second tray.)
Step 17:
Locate two kit top vertical plates (0-08)
Step 18:
Use 4 kit 3/8”x 2 1/4” bolts, washers,
flange nuts and 4 kit 1” spacer tubes,
combined with 4 kit 1/4” spacers (wash-
ers) (0-07) (In-between top plate)
through both kit top plates (0-03 / 0-04)
to assemble kit top vertical plate (0-08)
onto the display “A”-frame loosely.
(Reference arrows for placement.)
