OR-Fab 89000 ORF PRODUCT DISPLAY RACK - Manual (Page 12)

12 DISPLAY RACK #89000
Step 7:
Locate JK Rear Tire Carrier Rack
Step 8:

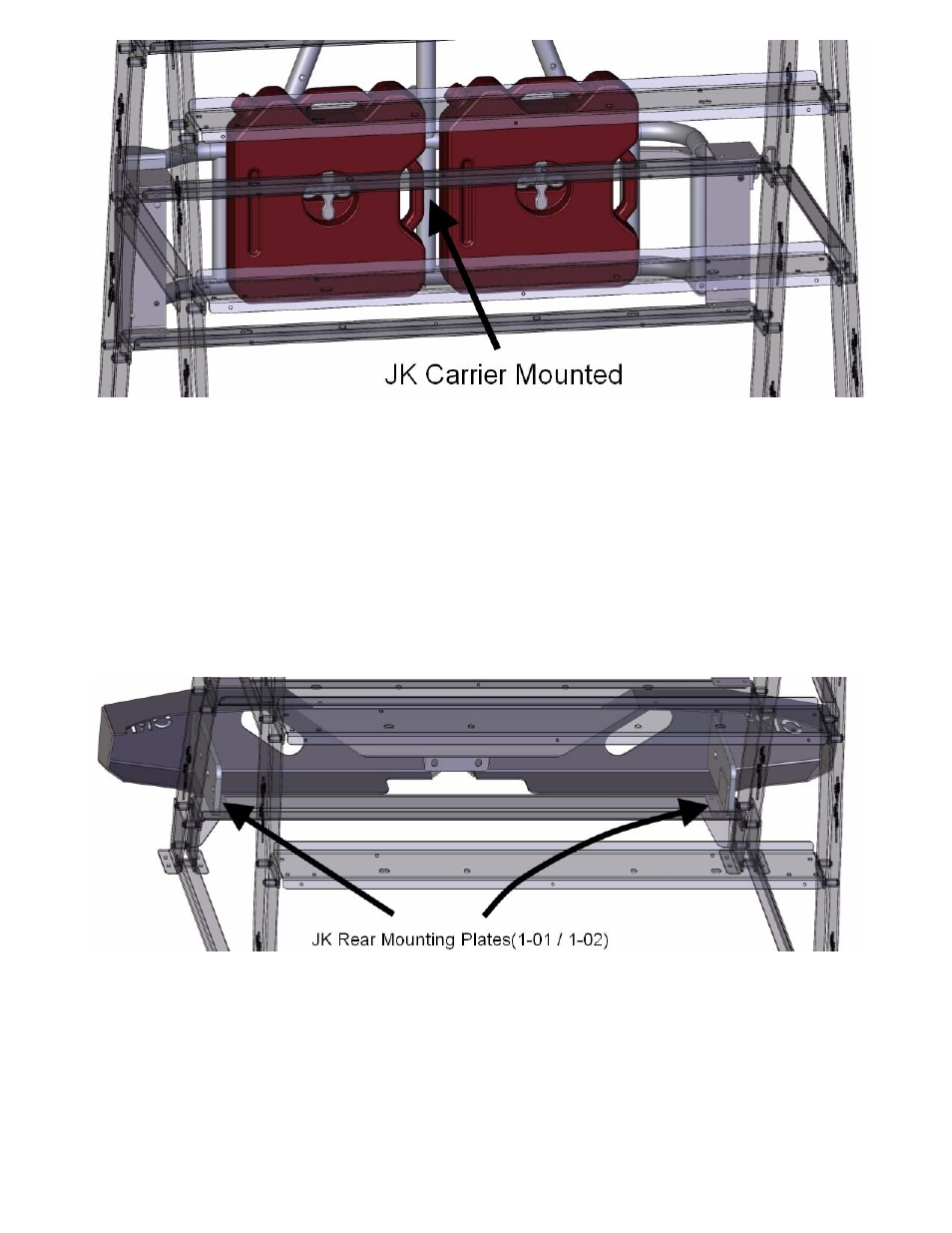

Use JK tire carrier instructions to complete installation of JK tire carrier onto the JK landing block
and hinge bracket as shown in image.
(Reference carrier instructions for final assembly of carrier onto display rack.)
Step 2:
Use four kit 5/16” bolts, washers & flange nuts to secure two kit rear bumper mount
plates (1-01 / 1-02) onto the kit bottom display tray(0-10) as shown in images.
(Reference arrows for placement.)
Step 1:
Locate JK Rear Bumper and two kit rear bumper mount plates(1-01 / 1-02)
JK Rear Bumper Installation
