2-2
Installation Guidelines
5975398 BARCODATA 3200 110797

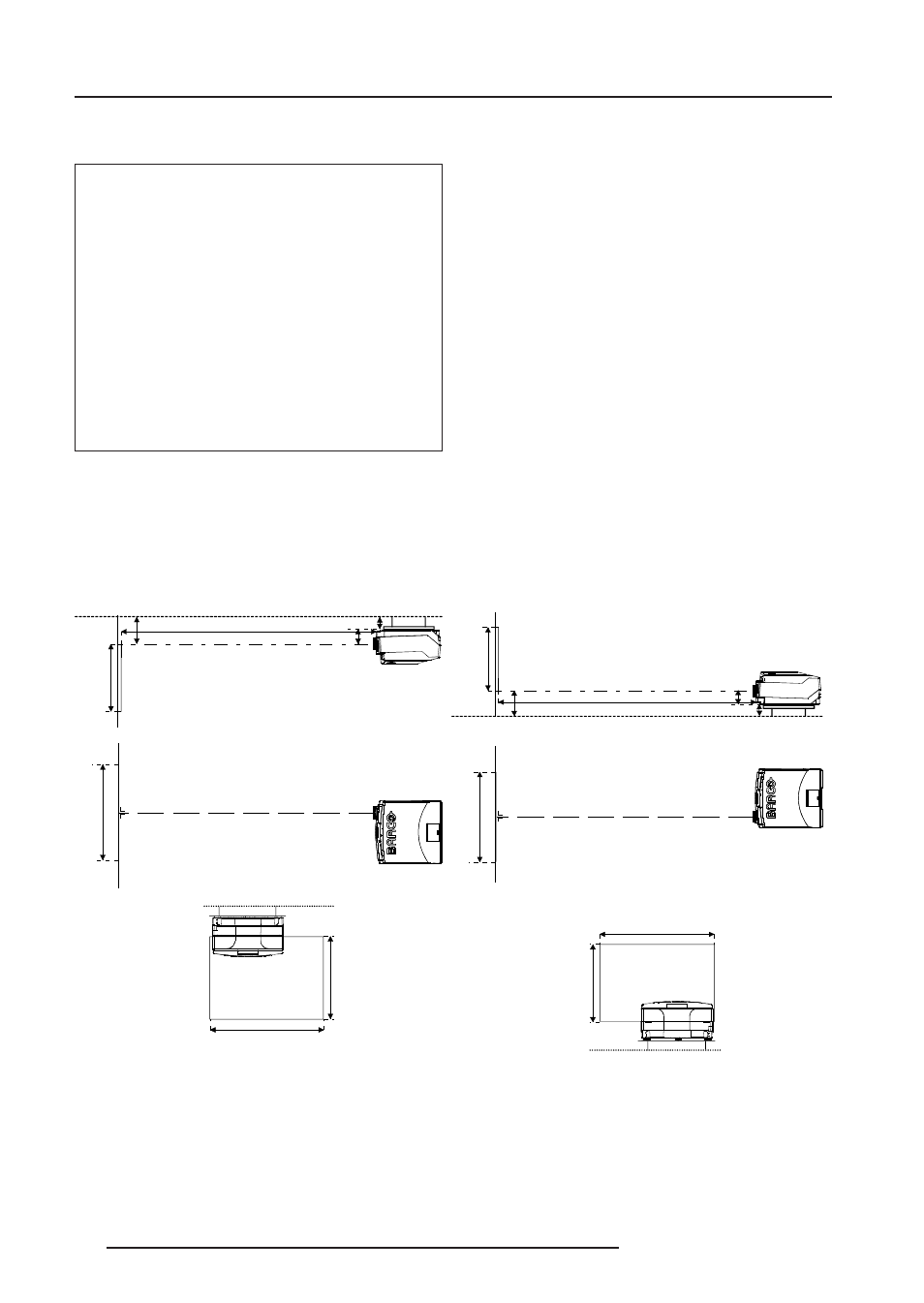

* Where to install the projector?
Definitions of the Abbreviation on drawings
B = Distance between ceiling and top of the screen or
between floor and bottom of the screen.
A = Correction value, distance between bottom side of
projector (without feed) and middle of the lens. Value to be
subtracted from B to obtain the correct installation position. (A
value is a constant value for all screen widths and type of
lenses, A = 140.5 mm.)
CD = Total distance between projector and ceiling or projector
and floor.
SW = Screen width.
SH = Screen height (image height).
PD = Projector Distance, distance between screen and
projector.
Lens type selection.
a) determine the required screen width.
b) determine the approximate position of the projector in the projection
room with regard to the screen and measure the
projector-screen distance (PD).
c) use the lens formulas in appendix B to find the best corresponding
PD with regard to the measured projector-screen distance for the
required screen width.
The desired lens is determined (the order number is given in the tabel
in the same appendix B).
Start the installation procedure for the projector as described in
the manual.
Inputs and computer video format input compatibility :
Some examples :
VIDEO and S-VIDEO
COMPONENT VIDEO
RGB ANALOG with STANDARD SYNC (SYNC ON GREEN or
SEPARATE SYNC)
RGB ANALOG with TRI-LEVEL SYNC (SYNC ON GREEN or
SEPARATE SYNC)
VGA : 640 x 480 pixels
MAC : 640 x 480 pixels
Super VGA : 800 x 600 pixels
XGA : 1024 x 768 pixels
Sources with pixel clock < 80 MHz
Screen
PD B
Floor
Projector
CD
A
CD = B - A
CD = height of table + supporting feet
SH
Optical axis projection lens
SH
SW
SIDE VIEW
BACK VIEW
Screen
BOTTOM VIEW
SW
Floor
* How to install a projection lens?
The projector is supplied without any lens. The following lenses are
available as an option (order numbers are given in appendix B) :
MD(1.2:1)
MD(2.3:1)
MD(3.4:1)
MD(5.0:1)
MD(6.0:1)
MD(7.0:1)
MD(1.7-3:1)
MD(3.0-6.0:1)
How to install the lens?
Remove the foam rubber in the opening of the lens holder.
- Take the new lens out of its shipping carton and remove the lens
covers.
- Turn the lens into the lens holder by turning clockwise.
- Focus the lens (see appendix B, 'Lenses') and secure the
correct position with the fastener ring by turning this ring clockwise.
Screen
PD B
Ceiling
Projector
CD
A
CD = B - A
SH
Optical axis projection lens
SH
SW
SIDE VIEW
BACK VIEW
Screen
BOTTOM VIEW
SW
Ceiling
