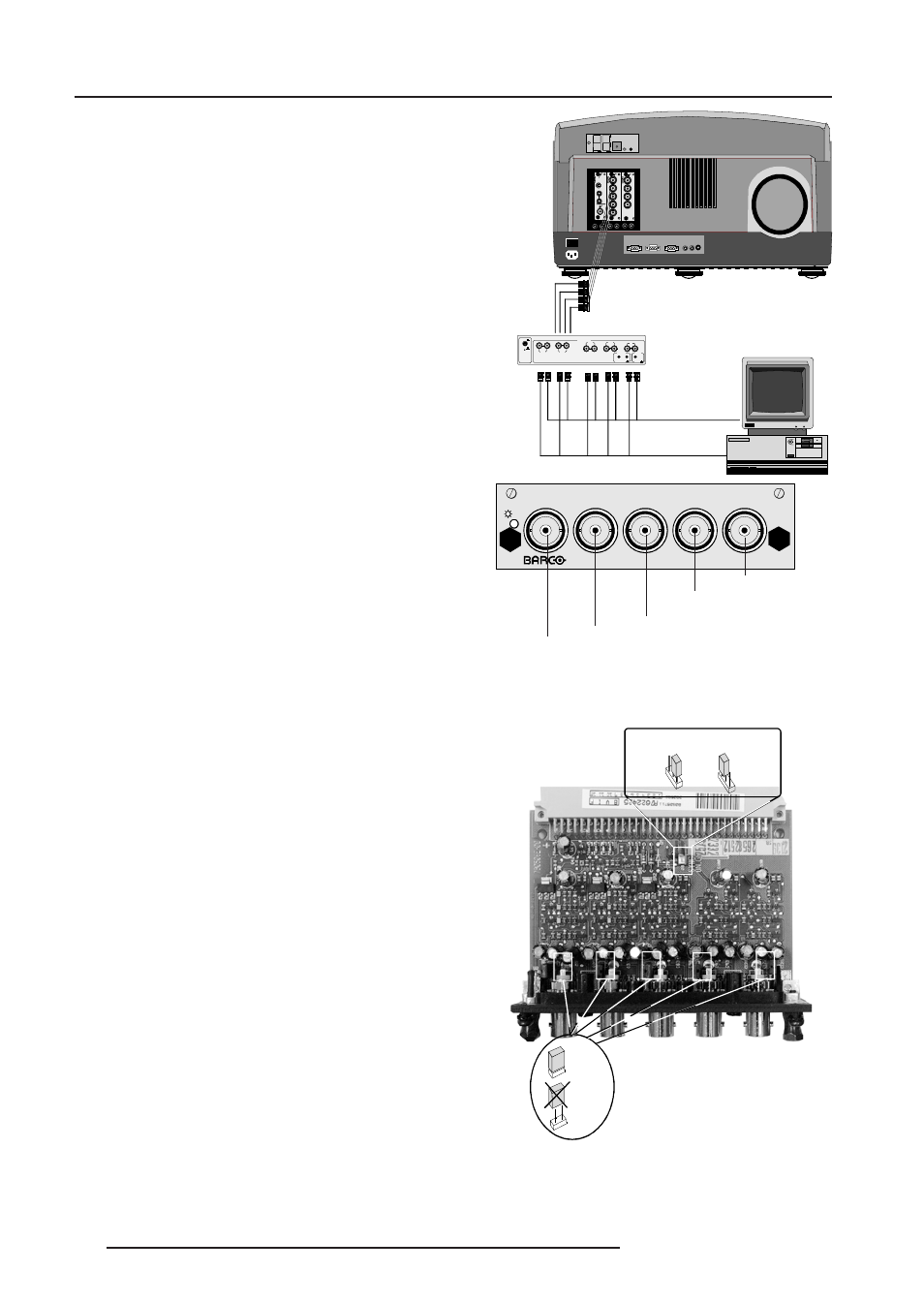

RGB analog input module.
RGB analog input terminals with separate Horizontal and Vertical
sync inputs(RGB-HV), with Composite sync input(RGB-S) or with
Sync signals on green(RGsB).
Always use an interface when a computer and local monitor have
to be connected to the projector. Interfaces to be applied :
Universal analog interface.
Order number : R9826100.
RGB 120 MHz analog interface.
Order number : R9826570.
VGA interface
Order number 120V : R9828079.
Order number 230V : R9828070
MAC interface
Order number 120V : R9828059
Order number 230V : R9828050
MAGIK interface
Order number 120V : R9828129
Order number 230V : R9828120
RGBS/RGsB analog : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if sync on green
Vert. sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. sync / Composite sync :
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
RGB input selection :
Key in the corresponding slot number on the RCU or the local keypad.
Straps on module level :
Floating or non-floating input.
Red : J3 : strap "yes" : non floating strap "no" : floating
Green : J4 : strap "yes" : non floating strap "no" : floating
Blue : J5 : strap "yes" : non floating strap "no" : floating
H/C : J6 : strap "yes" : non floating strap "no" : floating
V : J7 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection : strap on module level.
J8 : see drawing
Factory preset : separate sync.
Sync selection on the Input Slots menu.
The horizontal sync input can be set as separate sync input or as
separate sync + video input. To change this setting, press ADJUST
or ENTER key to start up the Adjustment mode..
Ay‚h‡vtГ‚ Г‚Гsy‚h‡vtÃvƒˆ‡
Floating
Non-Floating
E ' ÃT ’  p Æ r yr p ‡v‚ 
T r ƒ h h ‡ r Æ ’  p T ’  p   Ãt r r 
- - - - -
Vert. sync
Hor. sync or Composite
sync
Blue
Green
Red
