7-11
Random Access Adjustment Mode
5975398 BARCODATA 3200 110797
720 pixels
4
8
0
p
ix
e
ls
Scale [1:1]
Scale [1:x]

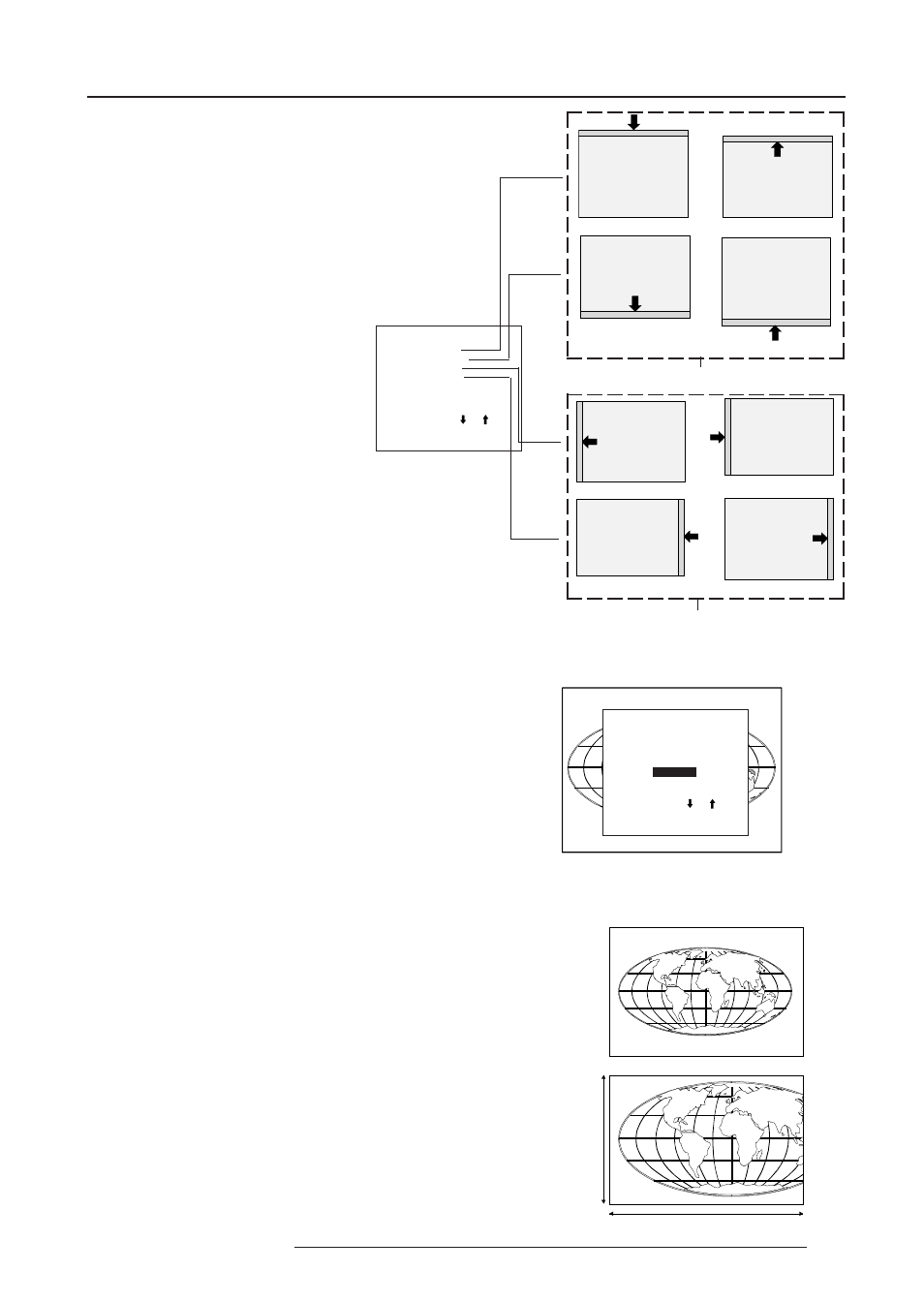

Adjustment of the blanking on the top of the image
Adjustment of the blanking on the bottom of the image
Correct by pushing the control disk up or down
BLANKING
TOP
BOTTOM
LEFT
RIGHT
Select with or
then
to return.
Adjustment of the blanking on the left side
Adjustment of the blanking on the right side
Correct by pushing the control disk to the right or to the left
Scale [1:x]
When 'Scale [1:1]' is selected, the real input signal without image
conversion is displayed on the screen with a resolution fo 720x480
pixels. Parts of the image cannot be displayed and will be lost.
Press ENTER to toggle scale between [1:1] and [1:x]. When toggled
to [1:x] the full image will be displayed.
Note : When Scale [1:1], the blanking is OFF.
GEOMETRY
SHIFT
SIZE
SIDE KEYSTONE
BLANKING
SCALE[1:x]
OPTIONS
Select with or
then
to return.
