Random Access Adjustment Mode
5975398 BARCODATA 3200 110797
Select with or
then
to return.
0 2.5
1 2.4
Sync slow/fast
Highlight sync by pushing the control disk up or down and press
ENTER to toggle between SLOW and FAST.
Note : Sync is normally used in the SLOW position. The FAST
position is used to compensate for unsteady sync pulses from older
video playback equipment.

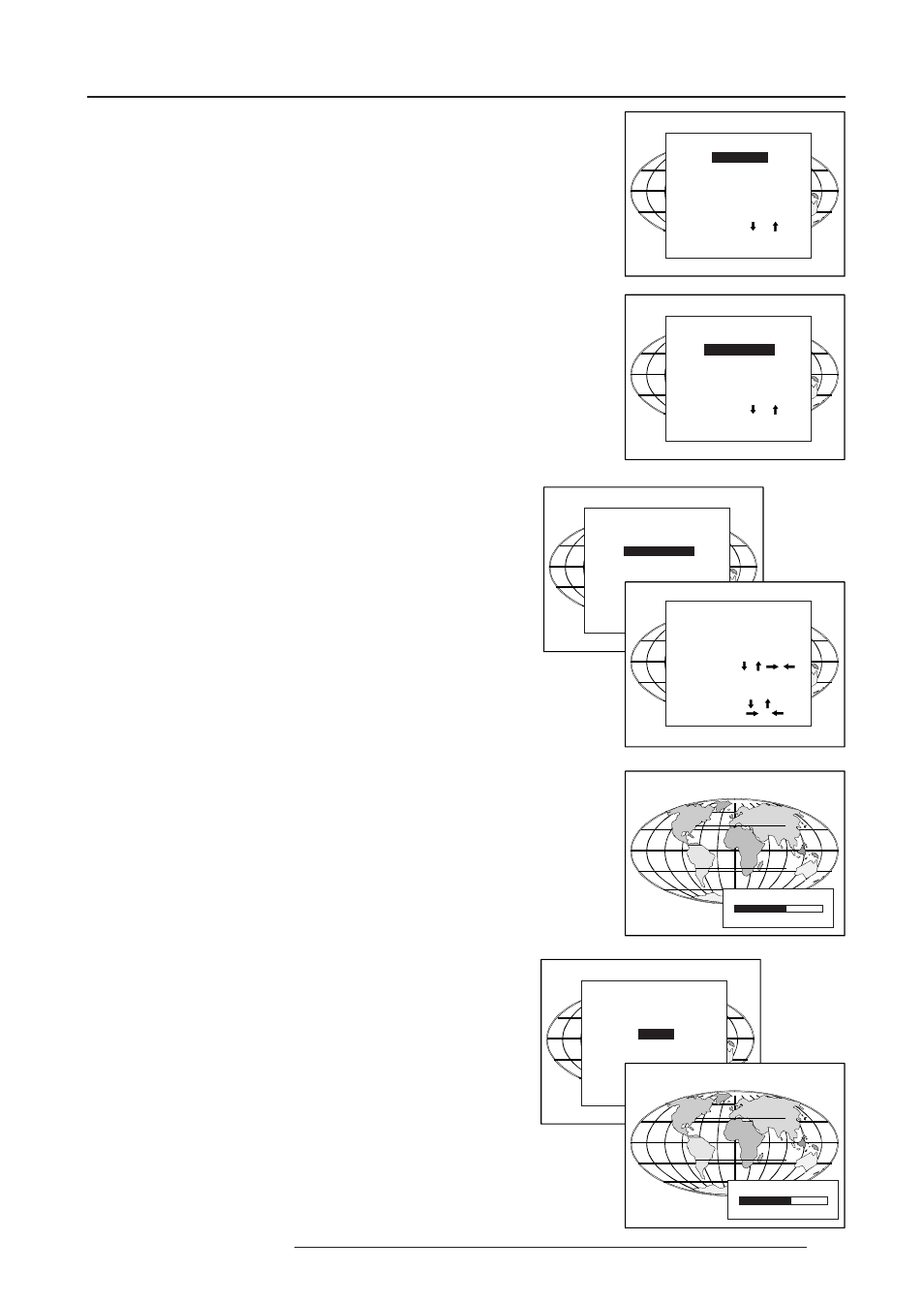

PICTURE TUNING
SYNC [SLOW]
STILL VIDEO [ON]
COLOR BALANCE
GAMMA
Select with or
then
to return.
Select with or
then
to return.
PICTURE TUNING
SYNC [SLOW]
STILL VIDEO [ON]
COLOR BALANCE
GAMMA
Still Video
This function is only used for stationary interlaced images.
Highlight Still Video by pushing the control disk up or down and press
ENTER to toggle between ON and OFF.
Still Video : ON : the displayed image contains less jitter and gives
a sharper image.
Still Video : OFF : for moving picture.
Color Balance
Highlight Color Balance by pushing the control disk up or down and
press ENTER to select the color balance selection menu.
The next choices are possible :
Fixed color balance :
- 3200 K (reddish)
- 6500 K (white)
- 9300 K (bluish)
Custom white balance.
Push the control disk up or down to select Fixed Color Balance or
Custom Color Balance.
If Fixed Color Balance is selected, use the control by pushing it to the
right or to the left to select one of the 3 prepogrammed color
temperatures.
When Custom Color Balance is selected, push the control disk up or
down to adjust red and push the control disk to the right or to the left
to adjust blue (range 0 to 2.5) in comparison with the green color
(value 1).
PICTURE TUNING
SYNC : SLOW
STILL VIDEO : ON
COLOR BALANCE
GAMMA
COLOR BALANCE
Fixed color balance
3200 6500 9300
Custom white balance
Select with , , ,
then
to return.
For custom adjust
red with or
blue with or
GAIN RED
Gamma
With the gamma correction adjustment, it is possible to bring the
details in dark image parts more to the front (lower image values) or
to reduce the importance of these details (higher gamma values).
To change the gamma value, highlight Gamma by pushing the control
disk up or down and press ENTER.
PICTURE TUNING
SYNC [SLOW]
STILL VIDEO [ON]
COLOR BALANCE
GAMMA
GAMMA
