Unpacking & Dimensions
5975398 BARCODATA 3200 110797
310a.DRW

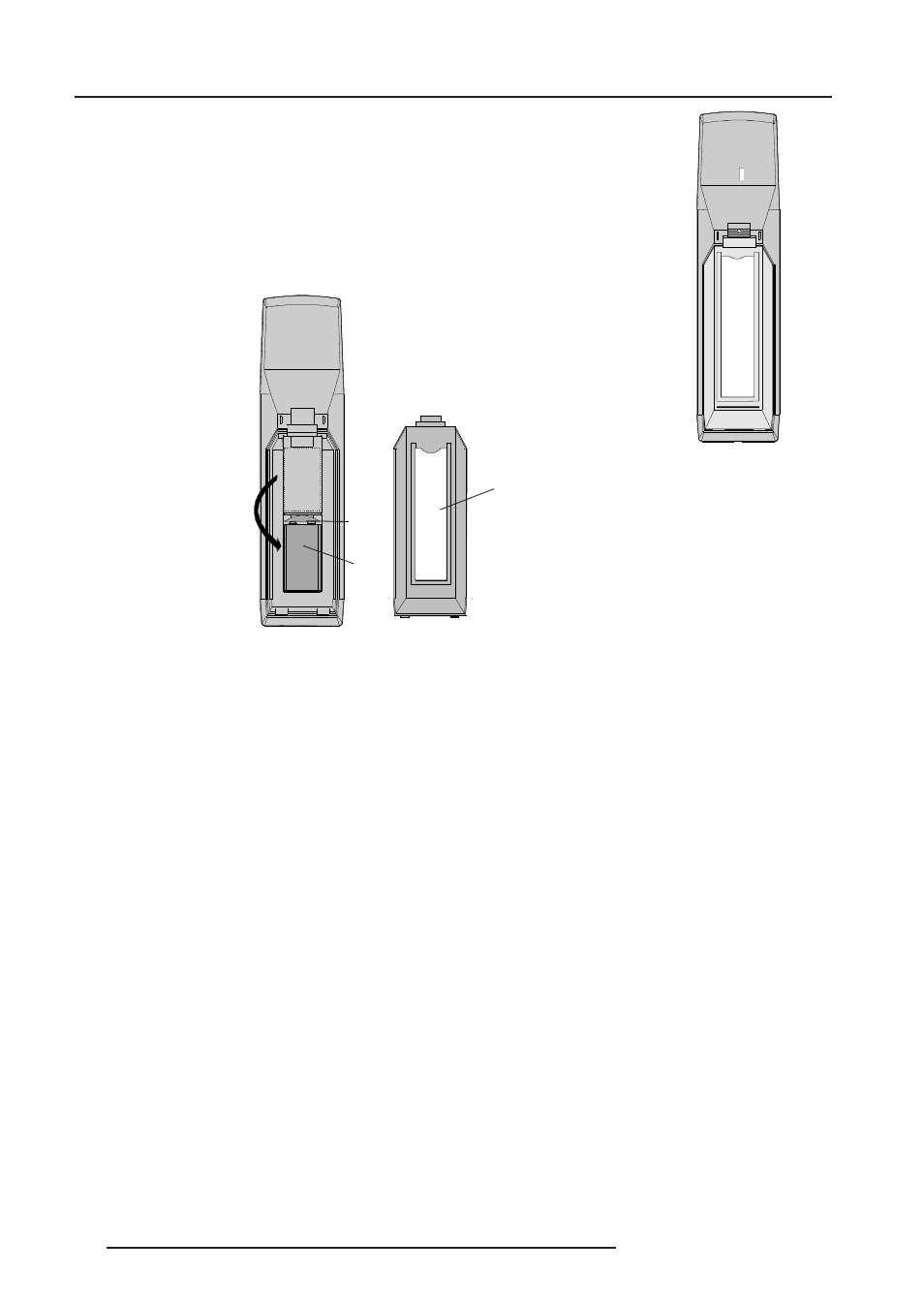

Battery installation in the RCU.
A battery is delivered inside the plastic bag with the power cord. Before using the RCU, first install the
battery.
Remove the battery cover on the backside of the remote control by pushing the indicated handle a little
to the bottom of the RCU. Lift up the top side of the cover at the same time (fig. 1).
Insert the new 9 V battery in the lower compartment and connect the battery to the contact plate.
Insert the battery into the lower compartment and put the cover back.
Note : projector address has to be programmed on the RCU before using the RCU (see chapter
'Controlling').
fig.1
fig.2
Insert here the 'Insert card
RCU' which you can cut out
on the last page of this manual.
Contact
plate
Battery
