4-7
Connections
5975398 BARCODATA 3200 110797
Ay‚h‡vtГ‚ Г‚Гsy‚h‡vtÃvƒˆ‡
Floating
Non-Floating
E ' à T ’  p Æ r y r p ‡v‚ 
T r ƒ h h ‡ r Æ ’  p T ’  p   Ãt r r 
- - - - -
ST!"!ÃDI ST!"!ÃPVU 8PHHÃQPSU 6V9DPÃPVU &75/
S
-
V I D E O
98 27900
V ID
E O
L
R
A
U
D
I
O
W D9 @ P T W D9 @ P ÃDI Q V U
O
n
O
n
R - Y
Y
B - Y
S
O
n
98 27930
8 P H Q P I @ I U ÃW D9 @ P ÃDI Q V U
R
G
B
H
/ C
V
O
n
S B 7 Ã" G @ W @ G ÃT ` I 8 ÃDI Q V U
98 27920
56
FRQQHFWLRQ

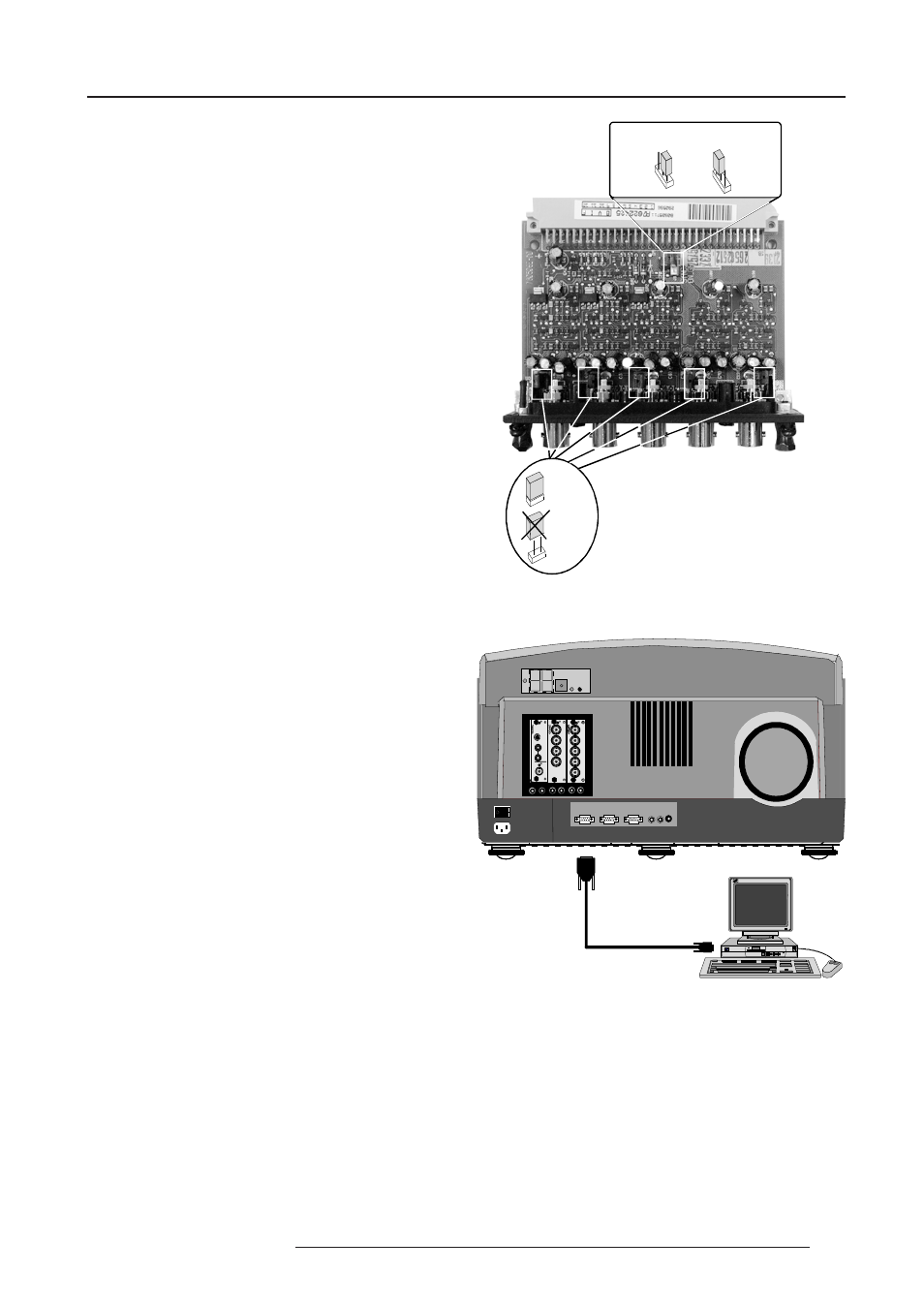

Straps on module level :
Floating or non-floating input.
Red : J3 : strap "yes" : non floating strap "no" : floating
Green : J4 : strap "yes" : non floating strap "no" : floating
Blue : J5 : strap "yes" : non floating strap "no" : floating
H/C : J6 : strap "yes" : non floating strap "no" : floating
V : J7 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection.
J8 : separate sync or sync on green.
Factory preset : separate sync.
Connecting a computer, e.g. IBM PC (or
compatible), Apple Macintosh to the RS 232 input
of the projector.
The projector has a RS232 port that allows it to communicate with a
computer.
Applications : remote control and data communications.
a) remote control :
- easy adjustment of projector via IBM PC (or compat-
ible) or MAC connection.
- allow storage of multiple projector configurations and
set ups.
- wide range of control possibilities.
- address range from 0 to 255.
b) data communications :
- sending data to the projector or copying the data from
the projector to a hard memory device.
Set up of the baud rate for communication with a
computer.
The communication speed between projector and computer, e.g.
PC or MAC, has 8 possible speeds. With DIP switches S2(1,2,3)
on the controller unit, it is possible to select the baud rate
(communication speed).
If the baud rate setting is different from the used communication
speed, call an authorised service technician to change the baud
rate setting.
