Location and Functions of Control
5975398 BARCODATA 3200 110797
COLOR PHASE
SHARPN TINT BRIGHTN
STANDBY
ENTER
TEXT
EXIT
PAUSE
&2175$67
- +
- +
- +
- +
- + 0 9
7 8
6 5
4 3
2 1
(17(5
3$86(
- +
3+$6(
)5((= 7(;7
(;,7 69E
699S
T 7`
TC6SQI TT
I
8PGPS
%5,*+71(66
8PI S6T
087(
- +
76G6I8
- +
75(%/(
- +
WPGVH
- +
76TT
C GQ
ÃÃÃ4

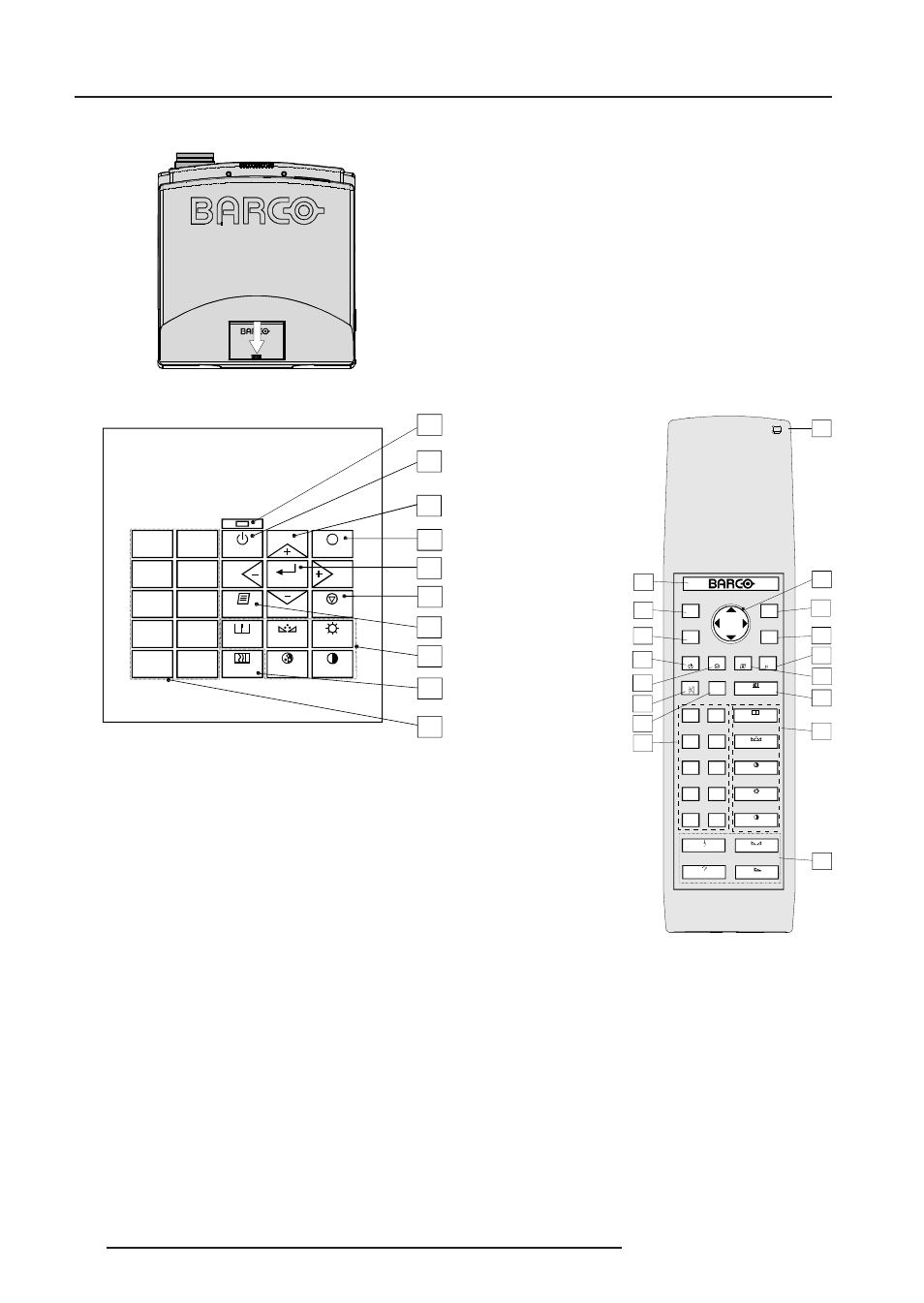

Control Panel Terminology
a. Local keypad
Gaining access
The keypad is located behind a door, screened with the name of the
projector.
To open the door, push once on the indicated side of the door and
turn it to the front side of the projector.
b. Remote control
This remote control includes a battery powered infrared (IR) trans-
mitter that allows the user to control the projector remotely.
This remote control is used for source selection, control,
adaptation and set up. It includes automatic storing of :
- Picture controls (Brightness, Sharpness...)
- Settings
Other functions of the remote control are :
- Switching between standby and operational mode.
- Switching to "pause" (blanked picture, full power for immediate
restarting)
- Direct access to all connected sources.
- Variable adjustment speed : when pushing continuously on the
control stick or the picture keys, the adjustment will be executed
in an accelerated fashion.
Local keypad
Remote Control (RCU)
