Random Access Adjustment Mode
5975398 BARCODATA 3200 110797
Select with or
then
Select with or
then
Before using a new source, a correct file has to be installed. The
projector's memory contains a list of files corresponding to the most
used sources. When the new source corresponds with one of these
files, the file can be loaded and saved for future use. When there is
a little difference, the file can also be loaded and than edited until the
source specs are reached.
Highlight
File Service
by pushing the control disk up or down and
File annotation :
xxxxXxxxx : active pixel rating
x : source number
xxx : file extension, first character is C (for custom made
files) or S (for standard files).
The second and third character is used for a following
number (=file index)
file index for custom files : 00 to 63.
xxxxxxxx.xxx x xxxxXxxxxi
xxxxxxxx : base name, 8 characters.
i or blanc : i = interlaced, blanc = not
interlaced
press ENTER to select. The File service menu will be displayed.
ENTER displays the File Service menu;
EXIT returns to the Path selection menu.
ADJUST returns to operational mode.
The following file manupulations are possible :
- Load : installation of a file for a new source.
- Edit : editing a loaded file to the source specs.
- Rename : renaming a file.
- Copy : copying a file to a new file.
- Delete : deleting an existing file.
- Options : way of sorting the files.
Load file
Push the control disk up or down to select LOAD and press ENTER to
display the Load menu.
The Load menu displays the corresponding files depending on the
installed filter.
This filter can be "Fit" or "All". To change the filter, push the control disk
to the right to select "filter list" (filter list will be hightlighted) and press
ENTER to toggle the annotation between brackets.
"All" : all files that can be loaded will be displayed.
"Fit" : only the best fitting files will be displayed (with a distinction of ± 2
lines and line duration distinction of ± 300 ns)
Push the control disk up or down to select the most fitting file and press
ENTER to select.
When scrolling through the files, the image will be adapted according the
settings of the selected file (on line adaptation). When the best fitting
image is displayed, press ENTER to select this file. A confirm Load file
menu will be displayed with the new created file and the on which the new
file is based on.
Press ENTER to confirm your new creations or EXIT to return to the load
file menu.
If the displayed image is not yet as it has to be, select the most
corresponding file and go to the Edit menu to change the file settings.
During a load file, the actual active file is displayed next to the indication
'Active file'.

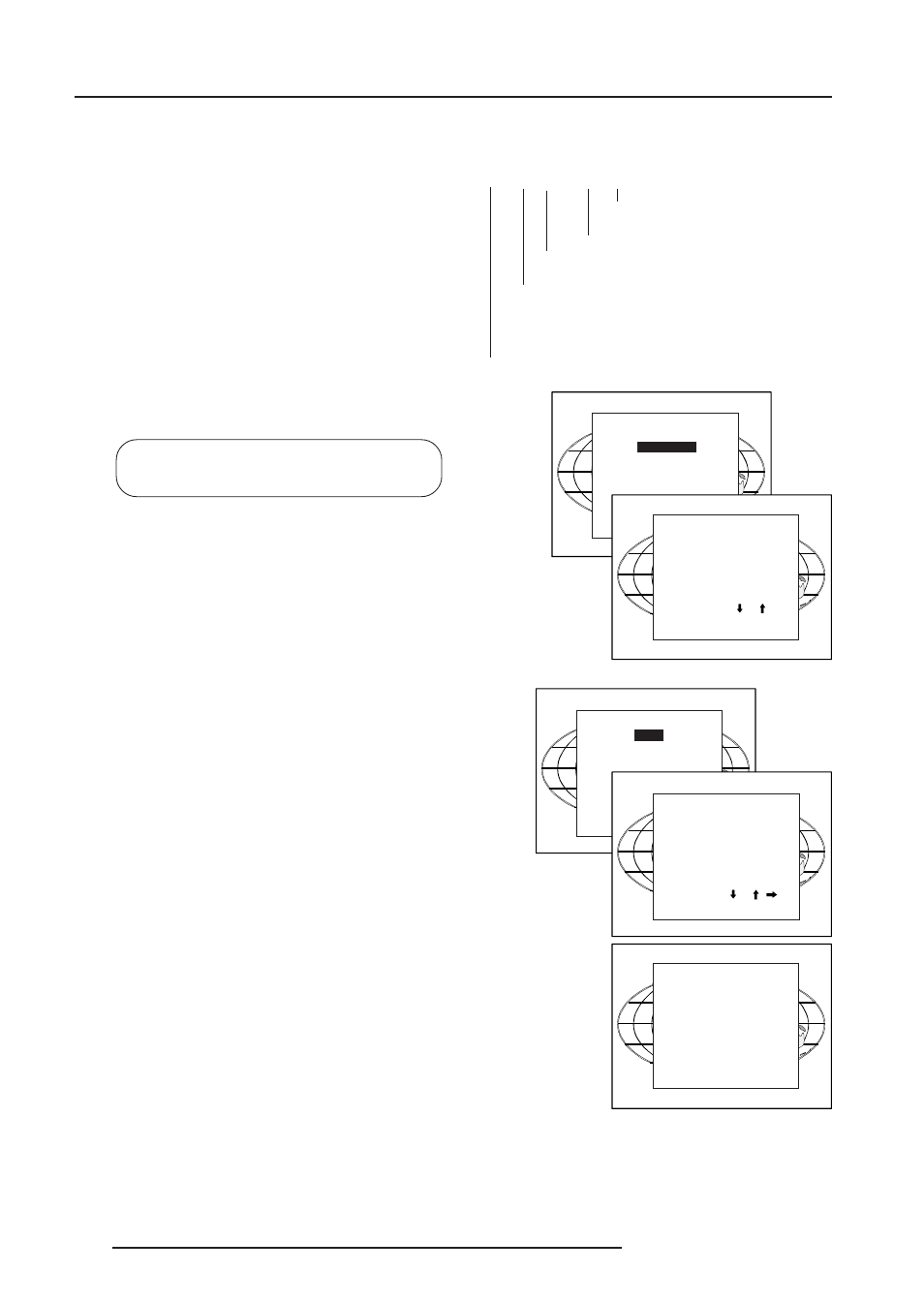

RANDOM ACCESS
ADJUSTMENT MODE
FILE SERVICE
PICTURE TUNING
AUDIO TUNING
GEOMETRY
FILE SERVICE
LOAD
EDIT
RENAME
COPY
DELETE
OPTIONS
Select with or
then
FILE SERVICE
LOAD
EDIT
RENAME
COPY
LOAD FILE
FILTER LIST [All]
Filename
Src
Resolution
-----------------------------------------------------
pal .s01
1
675x278i
pal .c01
1
675x278i
secam .s03
3
675x278i
-----------------------------------------------------
Active file : pal.c50
Select with or ,
