Random Access Adjustment Mode
5975398 BARCODATA 3200 110797
Select with or
then
to return.

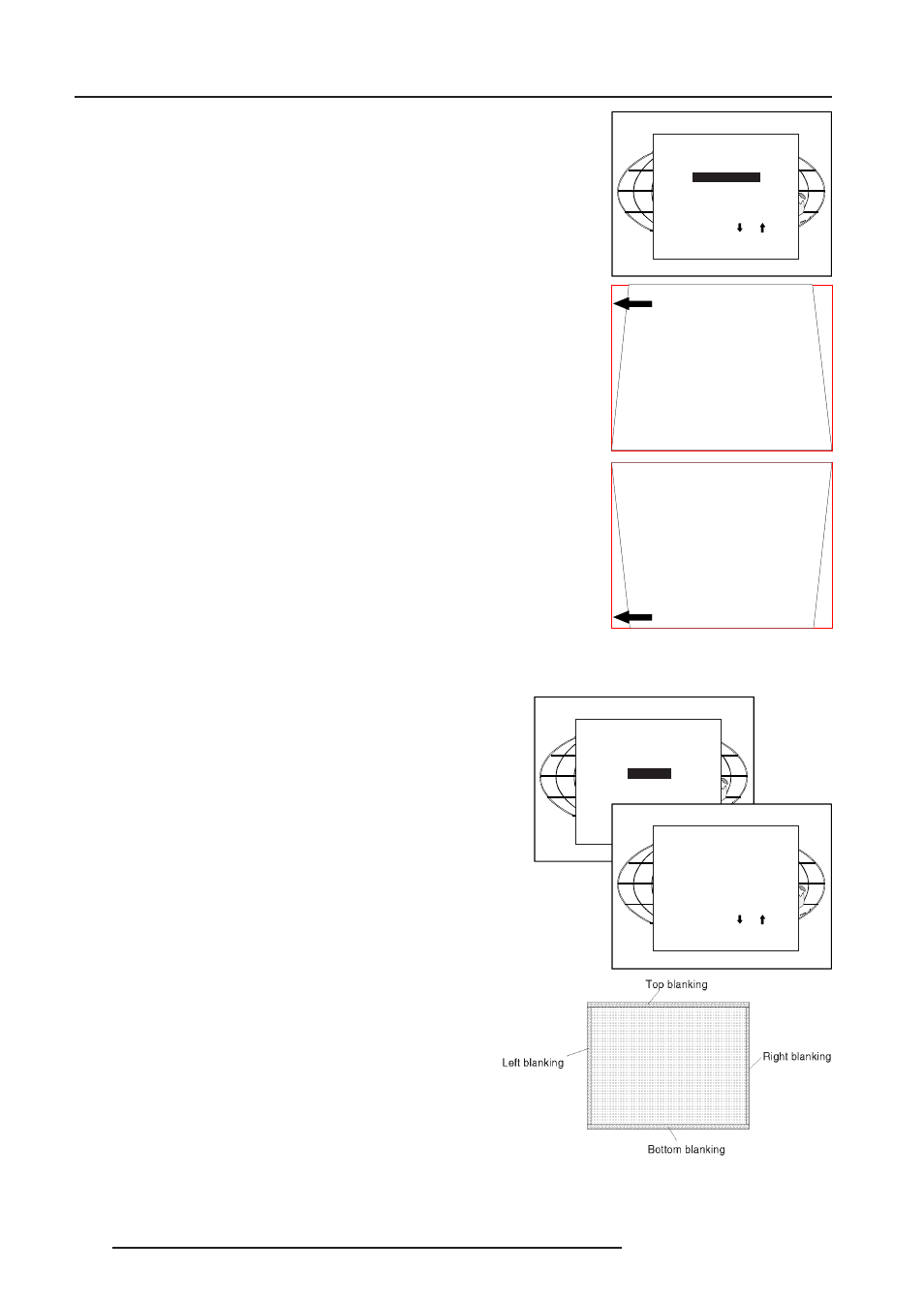

Side keystone
Highlight Side Keystone by pushing the control disk up or down and
press ENTER to select.
The side keystone adjustment is used to align the image if the
projector is mounted as a non standard projection angle.
Push the control disk to the right or to the left to adjust the keystone
of the image.
When the upper part of the image is wider than the lower part of the
image, push the control disk to the left. The number indication below
the bar scale will be negative.
When the upper part of the image is smaller than the lower part of the
image, push the control disk to the right. The number indication below
the bar scale will be positive.
Blanking
Highlight Blanking by pushing the control disk up or down and press
ENTER to select.
Blanking adjustments affect only the edges of the projected image
and are used to frame the projected image on to the screen and to
hide or black out unwanted information (or noise). A '0' on the bar
scale indicates no blanking.
The following blanking corrections are possible :
- top blanking
- bottom blanking
- left blanking
- right blanking
GEOMETRY
SHIFT
SIZE
SIDE KEYSTONE
BLANKING
SCALE[1:x]
OPTIONS
Select with or
then
to return.
GEOMETRY
SHIFT
SIZE
SIDE KEYSTONE
BLANKING
SCALE[1:x]
OPTIONS
BLANKING
TOP
BOTTOM
LEFT
RIGHT
RESET
Select with or
then
to return.
