Barco R9001190 - Manual (Page 17)

4-6
Connections
5975398 BARCODATA 3200 110797
R G B H / C V
On
SB7Ã"G@W@GÃT`I8ÃDIQVU
9
8
2
7
9
2
0
Ay‚h‡vtГ‚ Г‚Гsy‚h‡vtÃvƒˆ‡
Floating
Non-Floating
T’pÆryrp‡v‚
T r ƒ h h ‡r Æ ’  p T ’  p Г‚  Г`
- - - -
-
-
I ‚ € h yÃT ’  p U vyr‰ryÃT’p
-
-
Audio amplifier VCR S-VHS
ST!"!ÃDI ST!"!ÃPVU 8PHHÃQPSU 6V9DPÃPVU &75/
S - V I D E O
98 27900
V
I D E
O
L
R
A U D IO W D9 @ P T W D9 @ P ÃDI Q V U
O
n
O
n
Audio
Audio to amplifier
R - Y
Y
B
- Y
S
O
n
98 27930
8 P H Q P I @ I U ÃW D9 @ P ÃDI Q V U
R
G
B
H
/
C
V
O
n
S B 7 Ã" G @ W @ G ÃT ` I 8 ÃDI Q V U
98 27920
Vert. 3 level
sync
Blue
Green
Red
Hor. or composite
3 level sync

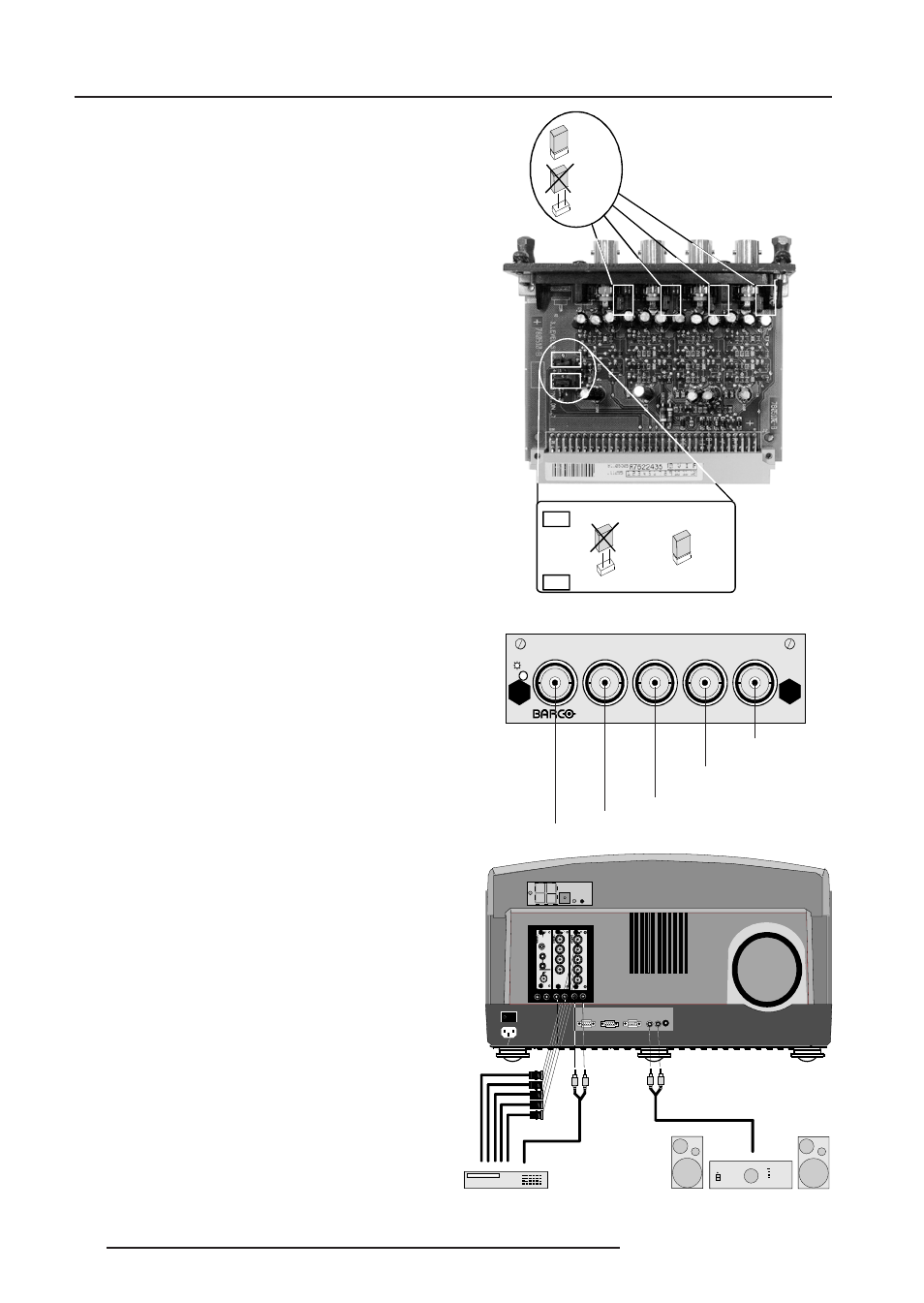

RGB3S/RG3sB input module.
Connect your RGB signals with Tri-level sync, e.g. a professional
VCR to the RGB 3 level sync input module.
RGB3S/RG3sB analog : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if Tri-level sync on green
Vert. Tri-level sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. Tri-level sync / Composite Tri-level sync:
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
Input selection :
Key in the corresponding slot number on the RCU or the local
keypad.
Indication on the input slot menu :
RGB3L-SS = RGB with separate Tri level sync.
RGB3L-SOG = RGB with Tri level sync on green.
Straps on module level :
Floating or non-floating input.
R-Y : J3 : strap "yes" : non floating strap "no" : floating
Y : J4 : strap "yes" : non floating strap "no" : floating
B-Y : J5 : strap "yes" : non floating strap "no" : floating
S : J6 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection.
J8 :
strap "no" : separate sync
strap "yes" : sync on Y.
J9 :
strap "yes" : Tri-level sync
strap "no" : normal sync.
Factory preset :
separate sync and
normal sync.
