Barco R9001960 User Manual
Page 37
4. Getting Started
Hardwired Remote Input
1. Plug one end of the remote cable in the connector on the bottom of the RCU.
2. Plug the other end in the connector in the front panel of the projector labelled RC. (image 4-7)

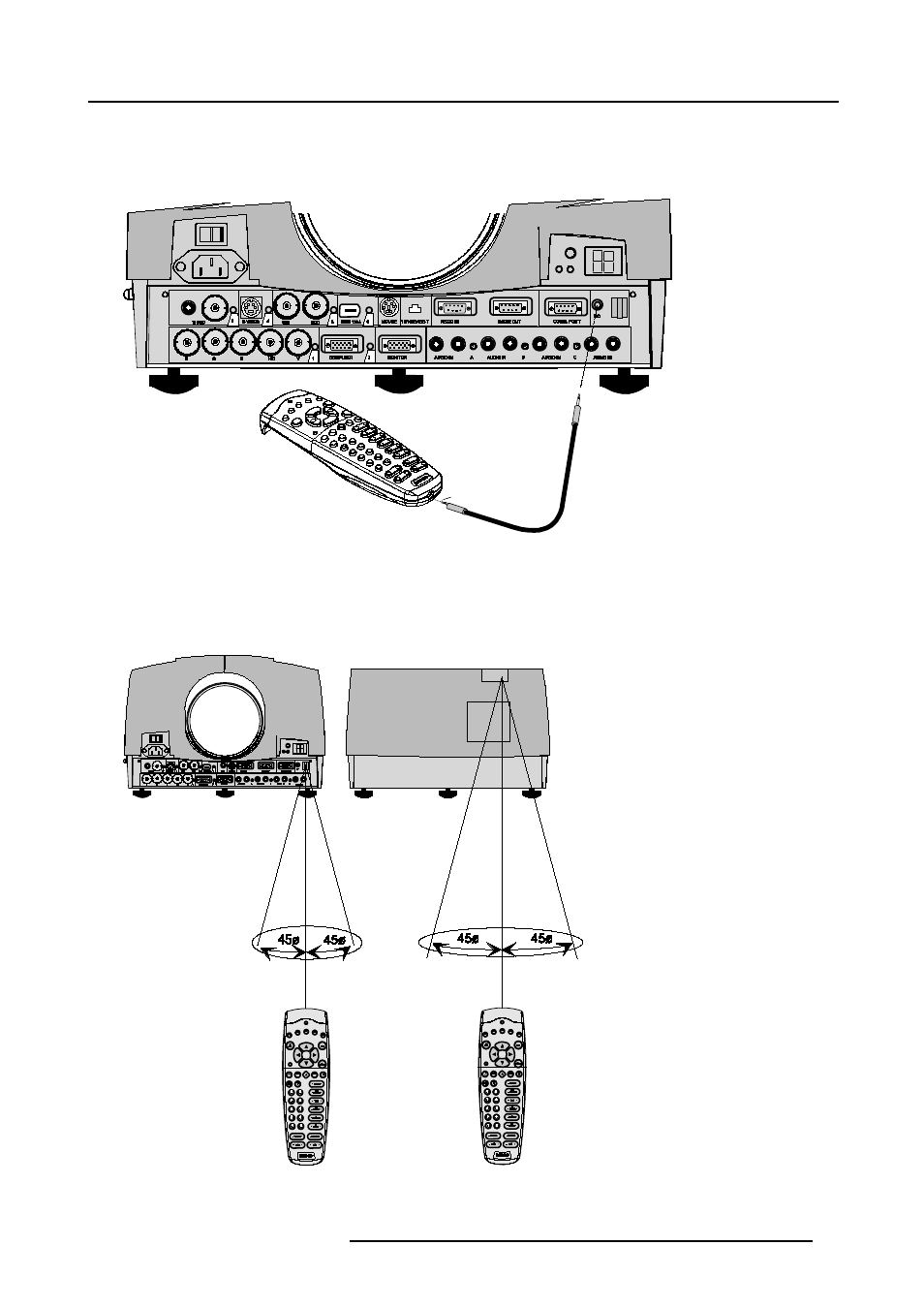

Image 4-7
Wired RCU connection to the projector
Directly to one of the IR sensors of the projector.
When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft in a straight line). The
remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote
control unit and the projector IR sensor.
Image 4-8
RCU directly to the IR sensor
R5976182 BARCOREALITY 6500 30012001
33
