B. BARCO Control Manager

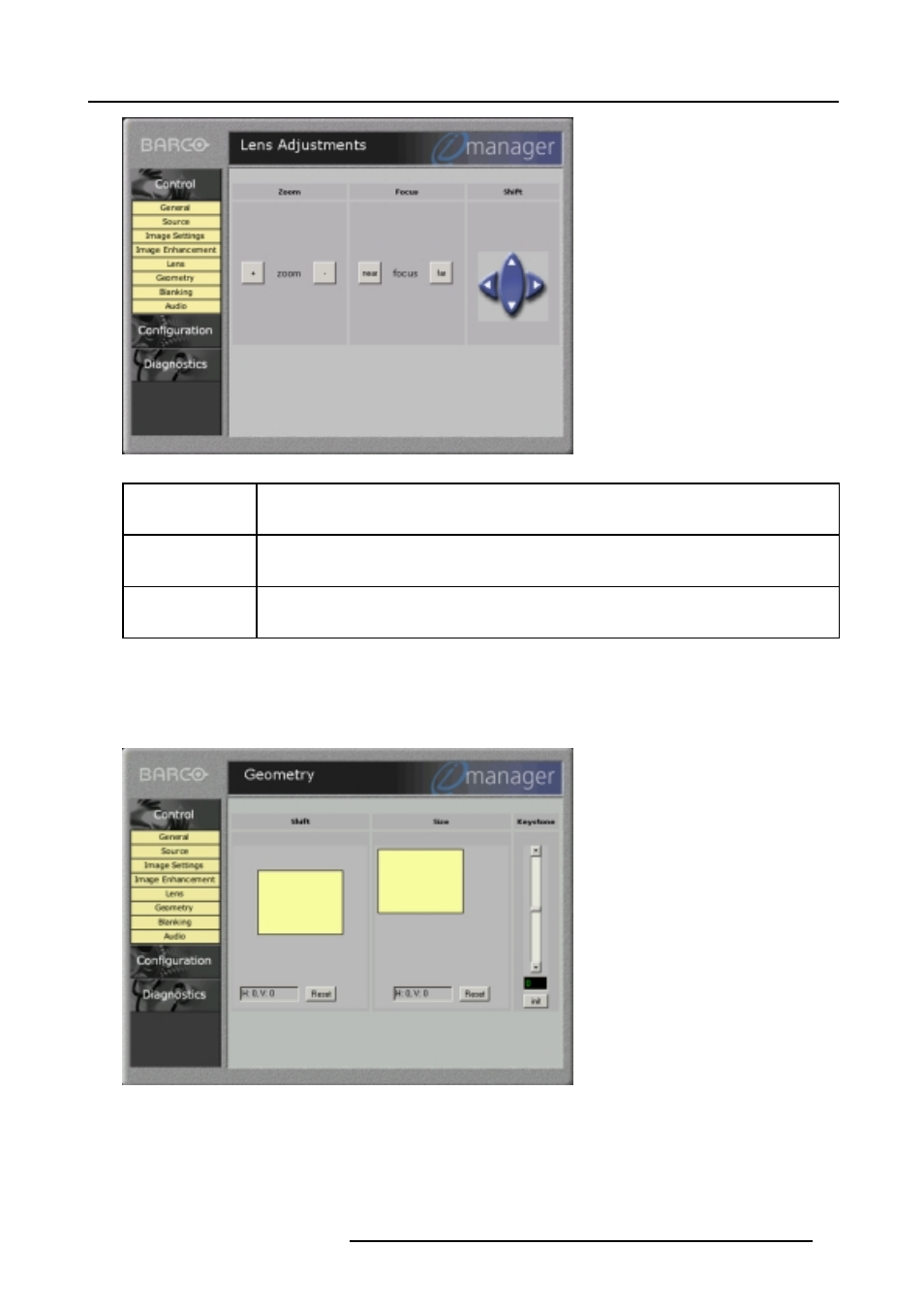

Image B-10
Lens adjustment
Zoom click on ’+’ to zoom out
click on ’-’ to zoom in
Focus click on ’near’ for a image which is focussed in front of the screen
click on ’far’ for a image which is focussed behind the screen
Lens shift click on the arrow up or down to shift the image in a vertical direction ( - 2 mm to + 20 mm)
click on the arrow left or right to shift the image in a horizontal direction ( - 5 mm to + 5 mm)
B.4.7 Geometry adjustment
What can be adjusted
Shift, Size and Keystone can be adjusted.
Image B-11
Geometry adjustment
R5976182 BARCOREALITY 6500 30012001 99
