3. Connections
How to connect a SDI source ?
1. Connect the out of your SDI source to the BNC SDI input of the projector.
Note:
The input is always 70 ohm terminated.
2. If loop through is needed, use the SDO output to connect to next device.
Note:
The output impedance of the SDO is 75 ohm.
How to select slot 5
1. Key in 5 on the RCU or the local keypad.
When a RCVDS05 is connected to the projector, the SDI input is available by keying in 85 on the RCU.
3.5.8 IEEE 1394 input
What can be connected ?
This input allows to display video in DV format on the 1394 bus (also called Firewire
TM
or i.Link
TM
). When a DV camcorder is in
camera mode or in VCR mode, playing a tape, it will broadcast the compressed video and audio on the 1394 bus.
DV format
Digital Video format
How to connect ?

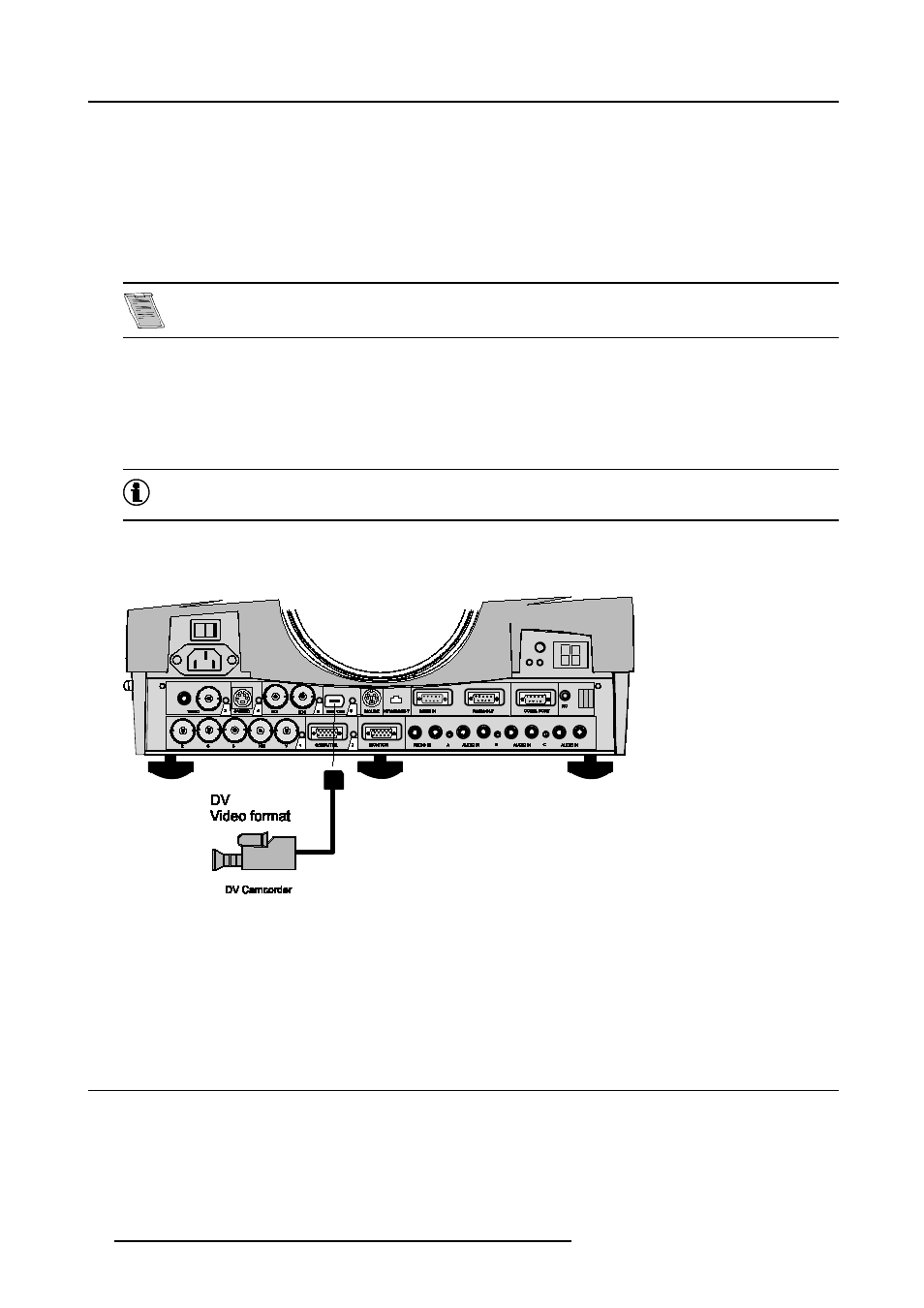

1. Connect the output of your DV source to the IEEE 1394 input of the projector. (image 3-7)
Image 3-7
IEEE connection to the projector
How to select slot 6?
1. Key in 6 on the RCU or the local keypad.
Note:
When slot 6 is selected, the projector will automatically detect the presence of video on the bus and display it. If not,
the 1394 setup command in the Random access adjustment mode can be used to start the decoding manually (only for
sources that not fully implement the AV/C protocol).
3.6 Communication connections
Overview
•
•
Communication with peripherals
•
•
24
R5976182 BARCOREALITY 6500 30012001
