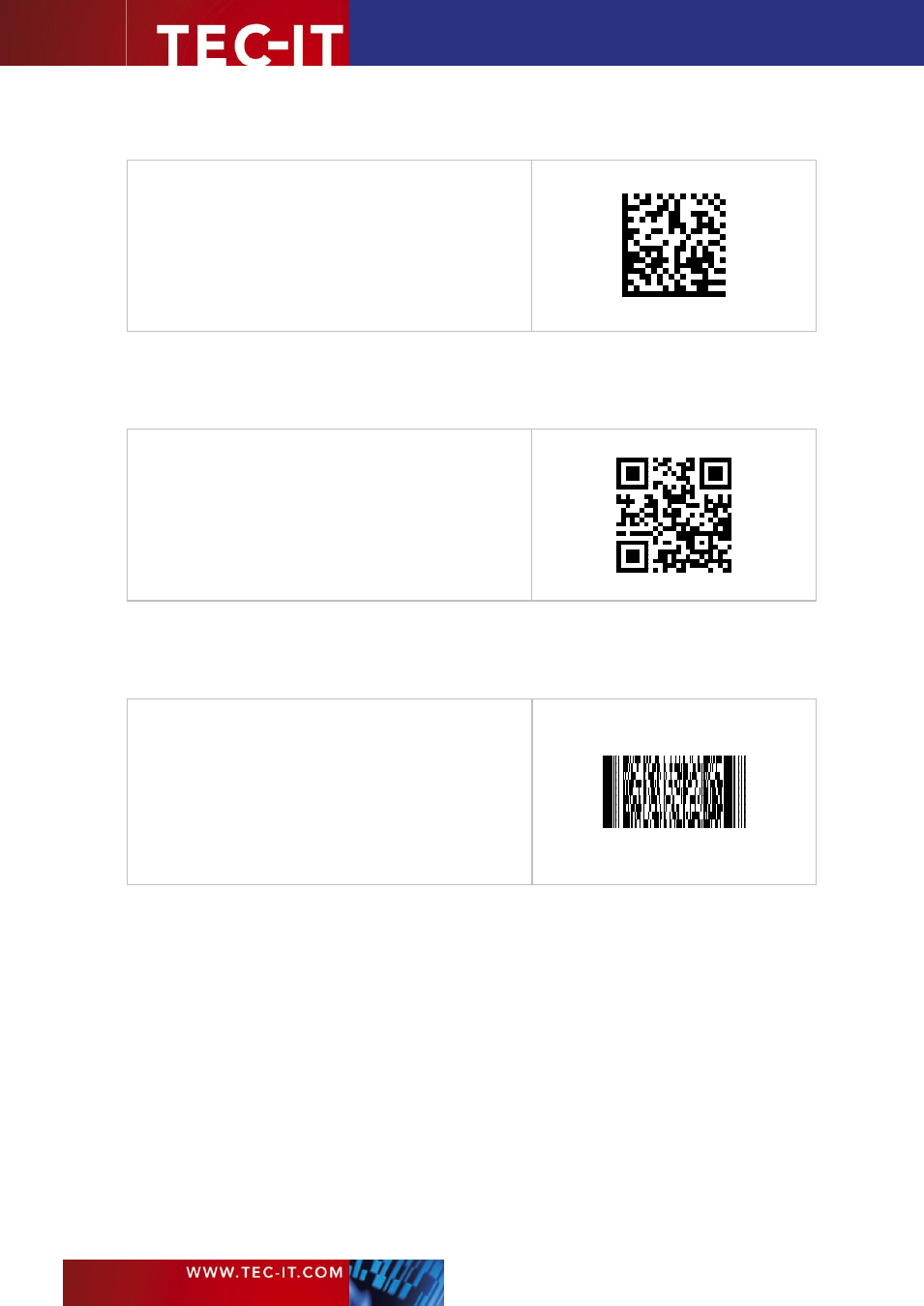

6.3.12 HIBC PAS Data Matrix
Symbology number:
103
Valid characters:
“0”..”9”, “A”..”Z”, “-“, “.”, Space, “*”, “$”, “/”,
“+”, “%”
Quiet zone:
left/right/ top/bottom: 1X
Module width:
--
Print ratio:
1:1
Ratio format:
1B:1S
Default check digit:
Modulo 43 (eCDMod43)
Size:
.001 till 14.0 square inch
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
HIBC PAS Data Matrix is based on the 2D symbology Data Matrix. The data format corresponds to
the HIBC PAS Format described above. An additional modulo 43 check digit is required.
6.3.13 HIBC PAS QR-Code
Symbology number:
105
Valid characters:
“0”..”9”, “A”..”Z”, “-“, “.”, Space, “*”, “$”, “/”,
“+”, “%”
Quiet zone:
left/right/ top/bottom: 4X
Module width:
--
Print ratio:
1:1
Ratio format:
1B:1S
Default check digit:
Modulo 43 (eCDMod43)
Size:
--
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
HIBC PAS QR-Code is based on the 2D symbology QR-Code. The data format corresponds to the
HIBC PAS Format described above. An additional modulo 43 check digit is required.
6.3.14 HIBC PAS PDF417
Symbology number:
107
Valid characters:
“0”..”9”, “A”..”Z”, “-“, “.”, Space, “*”, “$”, “/”,
“+”, “%”
Quiet zone:
left/right: 2X
Module width:
--
Print ratio:
1:2:3:4:5:6:7:8:1:2:3:4:5:6
Ratio format:
1B:2B:3B:4B:5B:6B:7B:8B:
1S:2S:3S:4S:5S:6S
Default check digit:
Modulo 43 (eCDMod43)
Size:
X >= 0.19 mm
.
.
.
.
.
.
.
.
.
HIBC PAS PDF417 is based on the 2D symbology PDF417. The data format corresponds to the
HIBC PAS Format described above. An additional modulo 43 check digit is required.
