T EC - I T B a r c o d e So f t w a re R e f e re n c e

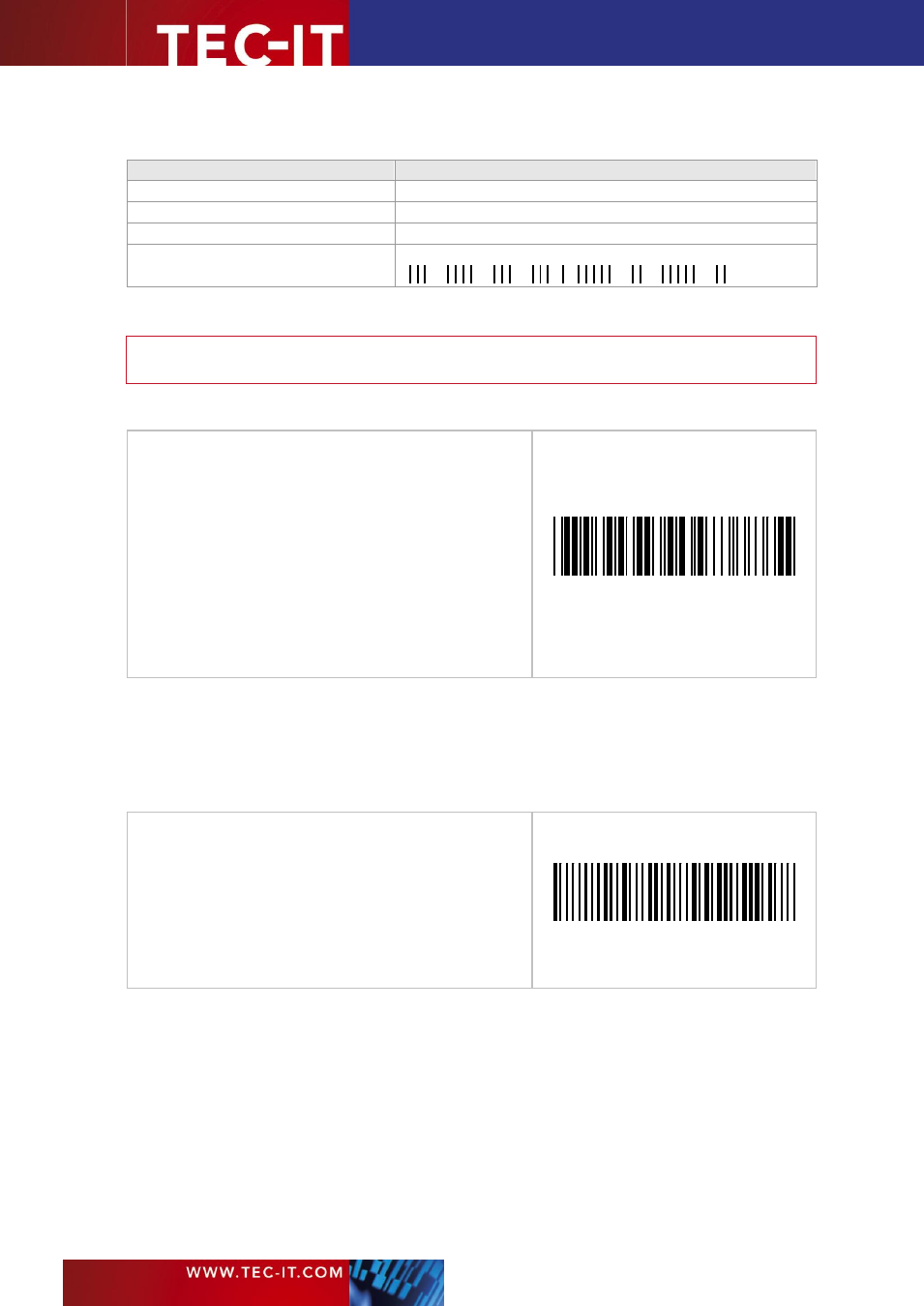

6.1.54.1 Example
Description
Value
Post number
305-600
Barcode Text property
305600 (no hyphen, 6 digits)
Encoded data in the symbol
006503
6
The check digit (7
th
digit marked
red
) will be calculated automatically.
.
Parameters: width = 70, height = 4 mm, module width = 0.417 mm
►
Hint: Will be scanned from right to left, so the data is encoded in the reverse order. The
check digit will be added at the right side, so it is the first digit read by a scanner.
6.1.55 LOGMARS
Symbology number:
50
Valid characters:
“0”..”9”, “A”..”Z”, “+“, “-”, “*”, “/”, ”.”, ”$”,
Space
Quiet zone:
left/right: 10X, min. ¼ inch
Module width:
X>=0.19 mm
Standard print ratio:
1:3:1:3
Ratio format:
1B:2B:1S:2S
Default check digit:
None (eCDNone)
Possible check digits:
Modulo 43 (eCDMod43), Modulo 11
Weight 7 (eCDMod11W7)
Symbol size:
H>=15% of L (H>=6.3 mm!)
H: Height of barcode symbol without
human readable text
L: Width of barcode
AB12$+
This is a special variant of Code 39 used by the U.S. Department of Defense. This standard defines
acceptable ranges for a number of variables, include density, ratio, bar height, and size of the
human-readable interpretation line. The modulo 43 check digit, optional for Code 39, is defined and
recommended in the specification.
6.1.56 MSI
Symbology number:
47
Valid characters:
“0”..”9”
Quiet zone:
left/right: 12X
Module width:
--
Standard print ratio:
1:2:1:2
Ratio format:
1B:2B:1S:2S
Default check digit:
MSI 1 digit (eCDMSI1)
Possible check digits:
User supplied and MSI 2 digit (eCDMSI2)
Symbol size:
14 digits incl. check digits
012345674
The MSI-Code is a variant of the Plessey-Code. MSI uses various check digit calculation methods -
TEC-IT implemented the 2 most common used. Please contact TEC-IT if you need a different one.
