T EC - I T B a r c o d e So f t w a re R e f e re n c e

In conjunction with the symbology character "FNC1" this code is also known as UCC-128 / EAN-
128 barcode

– see section 6.1.40.

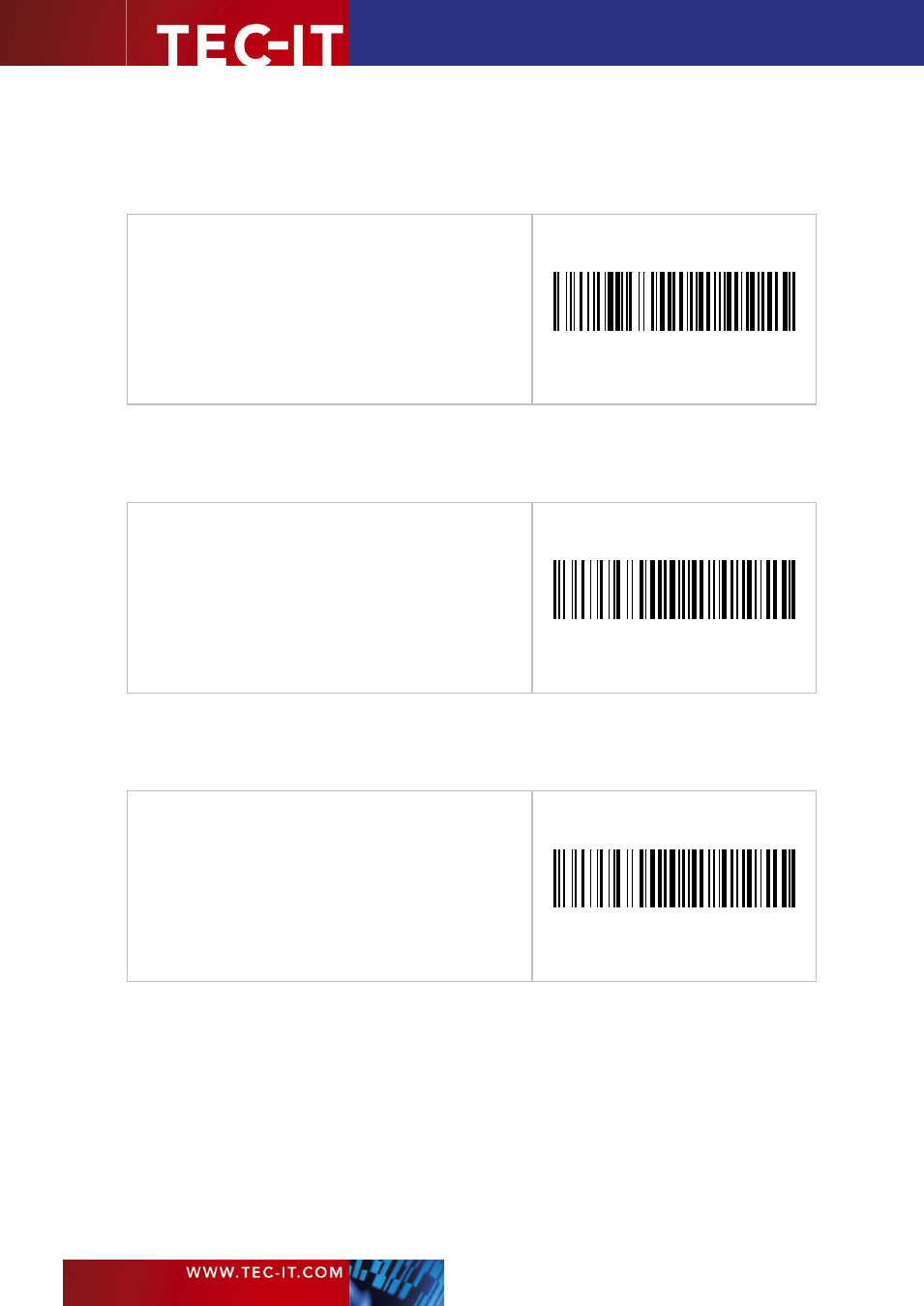

6.1.21 Code 128 Subset A

Symbology number:

Valid characters:

ASCII-characters between 0..127

Quiet zone:

left/right: 10X, min. ¼ inch

Module width:

X >= 0.19 mm

Standard print ratio:

1:2:3:4:1:2:3:4

Ratio format:

1B:2B:3B:4B:1S:2S:3S:4S

Default check digit:

Automatic (symbology specific).
Modulo 103 (eCDCode128)

Possible check digits:

Modulo 10, EAN-14

Symbol size:

ABab123+/-

This is a variant of Code128 which uses character set (subset) A. It is suitable for encoding upper
case characters + ASCII control sequences. It switches to other Code128 subsets when required.

6.1.22 Code 128 Subset B

Symbology number:

Valid characters:

ASCII-characters between 0..127

Quiet zone:

left/right: 10X, min. ¼ inch

Module width:

X >= 0.19 mm

Standard print ratio:

1:2:3:4:1:2:3:4

Ratio format:

1B:2B:3B:4B:1S:2S:3S:4S

Default check digit:

Automatic (symbology specific).
Modulo 103 (eCDCode128)

Possible check digits:

Modulo 10, EAN-14

Symbol size:

ABab123+/-

This is a variant of Code128 which uses character set (subset) B. It is suitable for encoding lower &
upper case letters. It switches to other Code128 subsets when required.

6.1.23 Code 128 Subset C

Symbology number:

Valid characters:

ASCII-characters between 0..127

Quiet zone:

left/right: 10X, min. ¼ inch

Module width:

X >= 0.19 mm

Standard print ratio:

1:2:3:4:1:2:3:4

Ratio format:

1B:2B:3B:4B:1S:2S:3S:4S

Default check digit:

Automatic (symbology specific).
Modulo 103 (eCDCode128)

Possible check digits:

Modulo 10, EAN-14

Symbol size:

ABab123+/-

This is a variant of Code128 which uses character set (subset) C. It is suitable for encoding digits. It
switches to other Code128 subsets when required.

6.1.24 Code 25

Uniform Symbology Specification ITF 2-5. Identical to Code 2 of 5 Interleaved. Another alias is USS
ITF 2-5.
