T EC - I T B a r c o d e So f t w a re R e f e re n c e

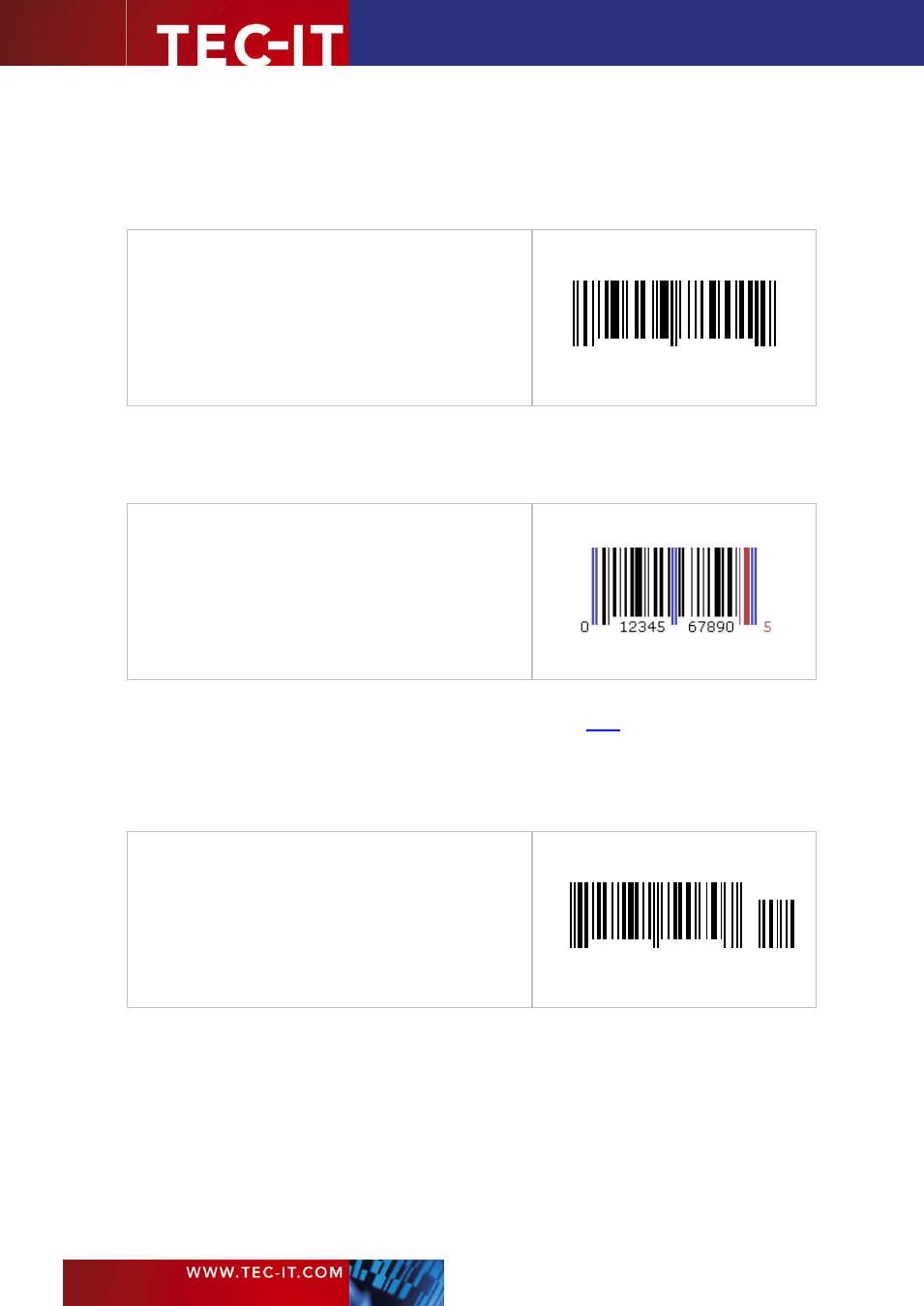

6.1.73 UCC-128
Same as the EAN-128 (see section 6.1.40).
6.1.74 UPC 12 Digits
Symbology number:
17
Valid characters:
“0”..”9”, 11 digits + 1 check digit
Quiet zone:
see UPC-A
Module width:
see UPC-A
Standard print ratio:
see UPC-A
Ratio format:
see UPC-A
Default check digit:
UPC-A (eCDUPCA)
Possible check digits:
User supplied
Symbol size:
see UPC-A
1
23456
78901
2
The symbologies UPC-A and UPC-12 are identical. The check digit is calculated automatically if not
specified in the input data (that is when only 11 digits are used for creating the code).
6.1.75 UPC Version A
Symbology number:
34
Valid characters:
“0”..”9”, 11 digits + 1 check digit
Quiet zone:
9X
Module width:
0,33 mm
Standard print ratio:
1:2:3:4:1:2:3:4
Ratio format:
1B:2B:3B:4B:1S:2S:3S:4S
Default check digit:
UPC-A (eCDUPCA)
Possible check digits:
User supplied
Symbol size:
H=26.26mm; B=37.29mm; variable size
UPC A is used for article bar-coding. It is used in the United States for marking of products in retail
applications (similar to EAN). The article number is maintained by
and product uniquely. The code (11 digits + 1 check digit) is built from one system-digit, 5 digits
manufacturer code and 5 digits product code. The check digit is calculated automatically if not
specified in the input data (that is when only 11 digits are used for creating the code).
6.1.76 UPC Version A, 2 Digits Add-On
Symbology number:
35
Valid characters:
“0”..”9”, 13 digits + 1 check digit
Quiet zone:
left: 9-12X, right: 5X
Module width:
see UPC-A
Standard print ratio:
see UPC-A
Ratio format:
see UPC-A
Default check digit:
UPC-A (eCDUPCA)
Possible check digits:
User supplied
Symbol size:
see UPC-A
7
25272
72070
12
Identical to UPC-A but with 2 add-on digits. The check digit will be calculated automatically if it is
not specified in the input data (e.g. 72527272070
7
12), The check digit is not displayed in the human
readable text.
