EP7309
High-Performance, Low-Power System on Chip
LCD Interface
Parameter Symbol Min Max Unit
CL[2] falling to CL[1] rising delay time t
CL1d
 10 25 ns
CL[1] falling to CL[2] rising delay time t
CL2d 80 3,475 ns
CL[1] falling to FRM transition time t
FRMd
300 10,425 ns
CL[1] falling to M transition time t
Md
 10
20 ns
CL[2] rising to DD (display data) transition time t
DDd
 10
20 ns
CL[2]
CL[1]
FRM
M
DD [3:0]
t
CL1d
t
FRM d
t
M d
t
DDd
t
CL2d

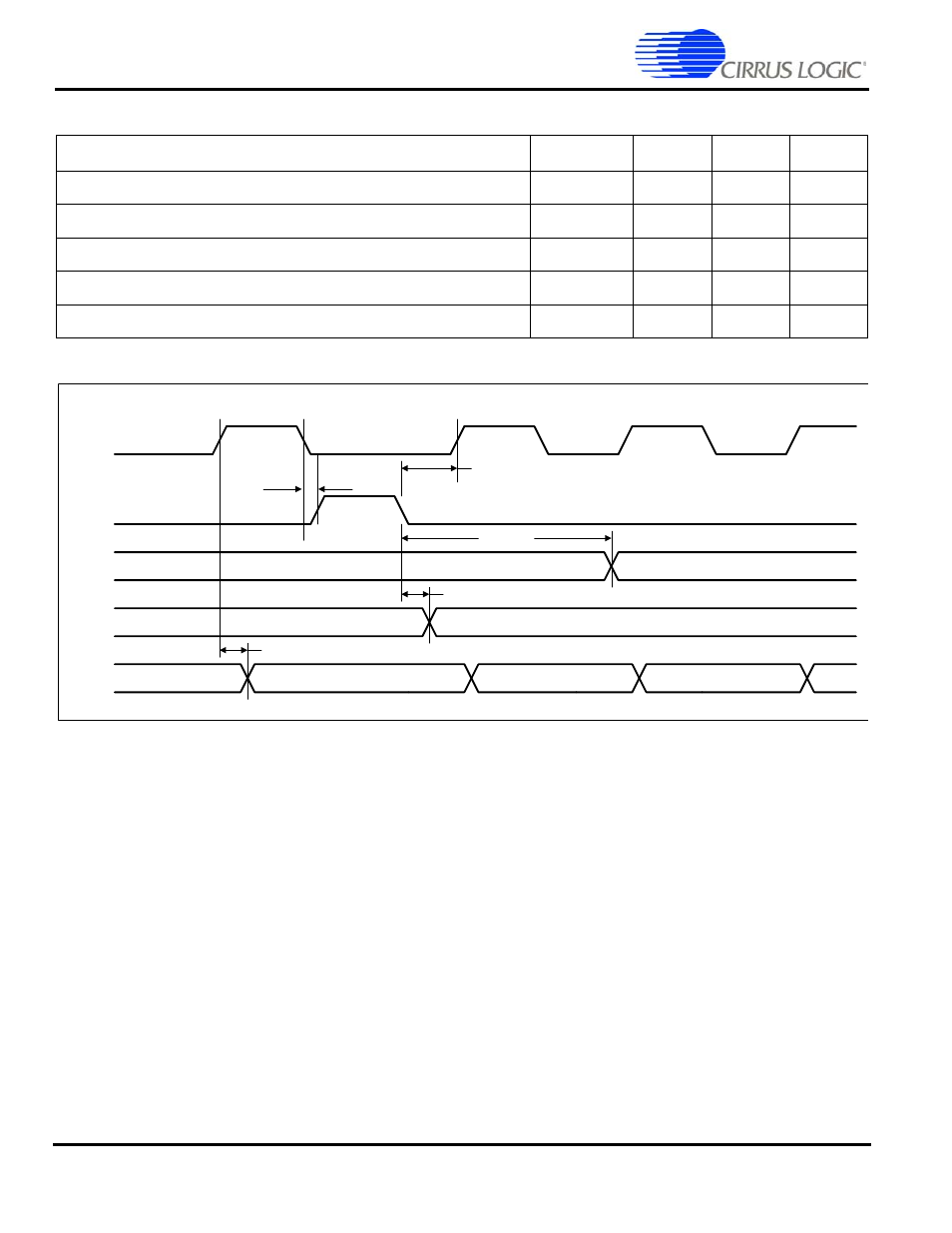

Figure 9. LCD Controller Timing Measurement
