AN366
AN366REV2 33

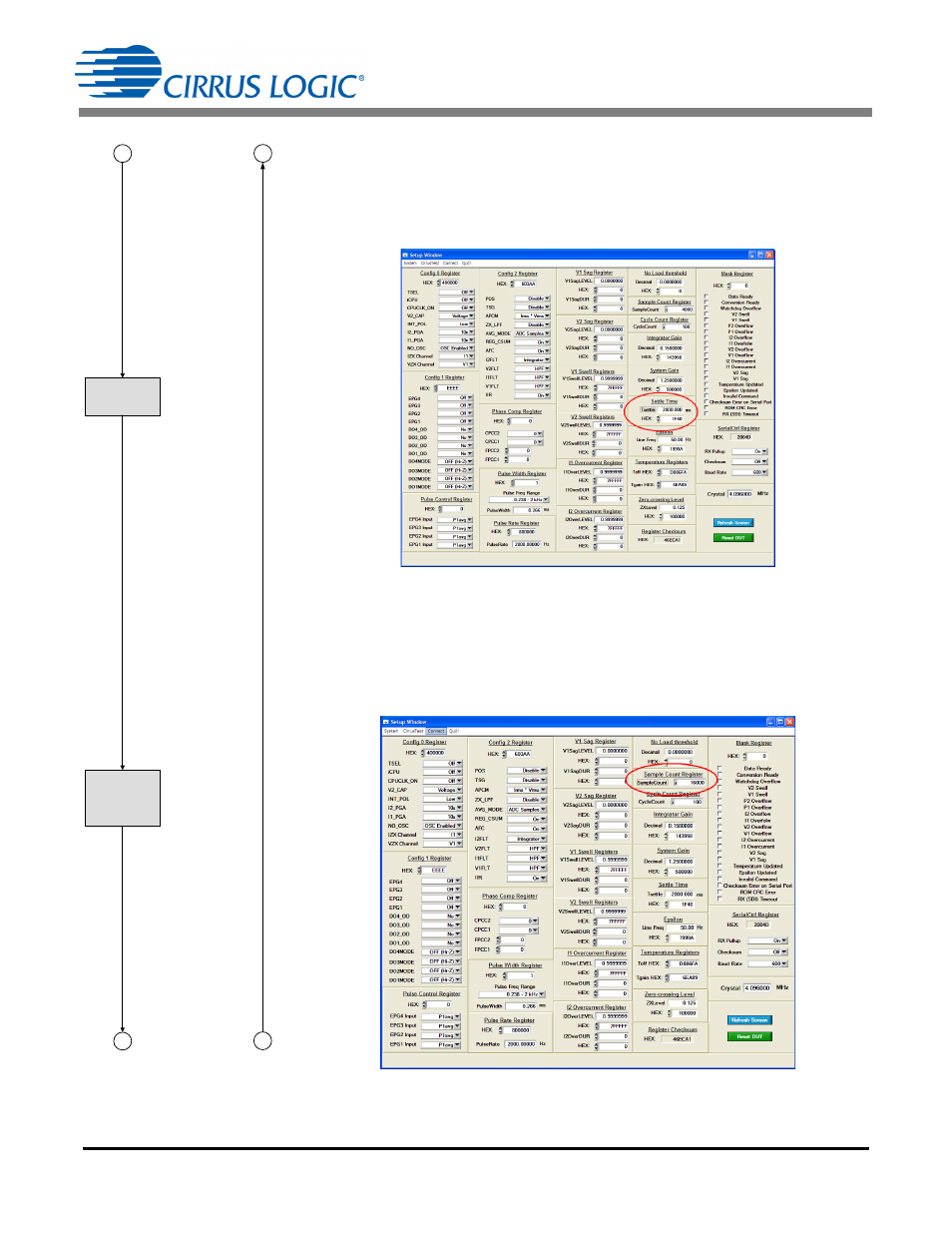

SET TSETTLE
(See Figure 26.)
SDI = 0x90
0x79 0x001F40 Write TSETTLE = 2000ms
SDO = 0xFF 0xFF 0xFFFFFF (Page 16, Register 57)
SDI = 0x90 0x39 0xFFFFFF Read TSETTLE = 2000ms
SDO = 0xFF 0xFF 0x001F40 (Page 16, Register 57)
Figure 26. Setup Window
SET SAMPLE COUNT
(See Figure 27.)
SDI = 0x90
0x73 0x003E80 Write Sample Count = 16,000
SDO = 0xFF 0xFF 0xFFFFFF (Page 16, Register 51)
SDI = 0x90 0x33 0xFFFFFF Read Sample Count = 16,000
SDO = 0xFF 0xFF 0x003E80 (Page 16, Register 51)
Figure 27. Setup Window
Tsettle =
2000 ms
SampleCount
(N) = 16,000
5
7 8
6
