AN366

AN366REV2

29

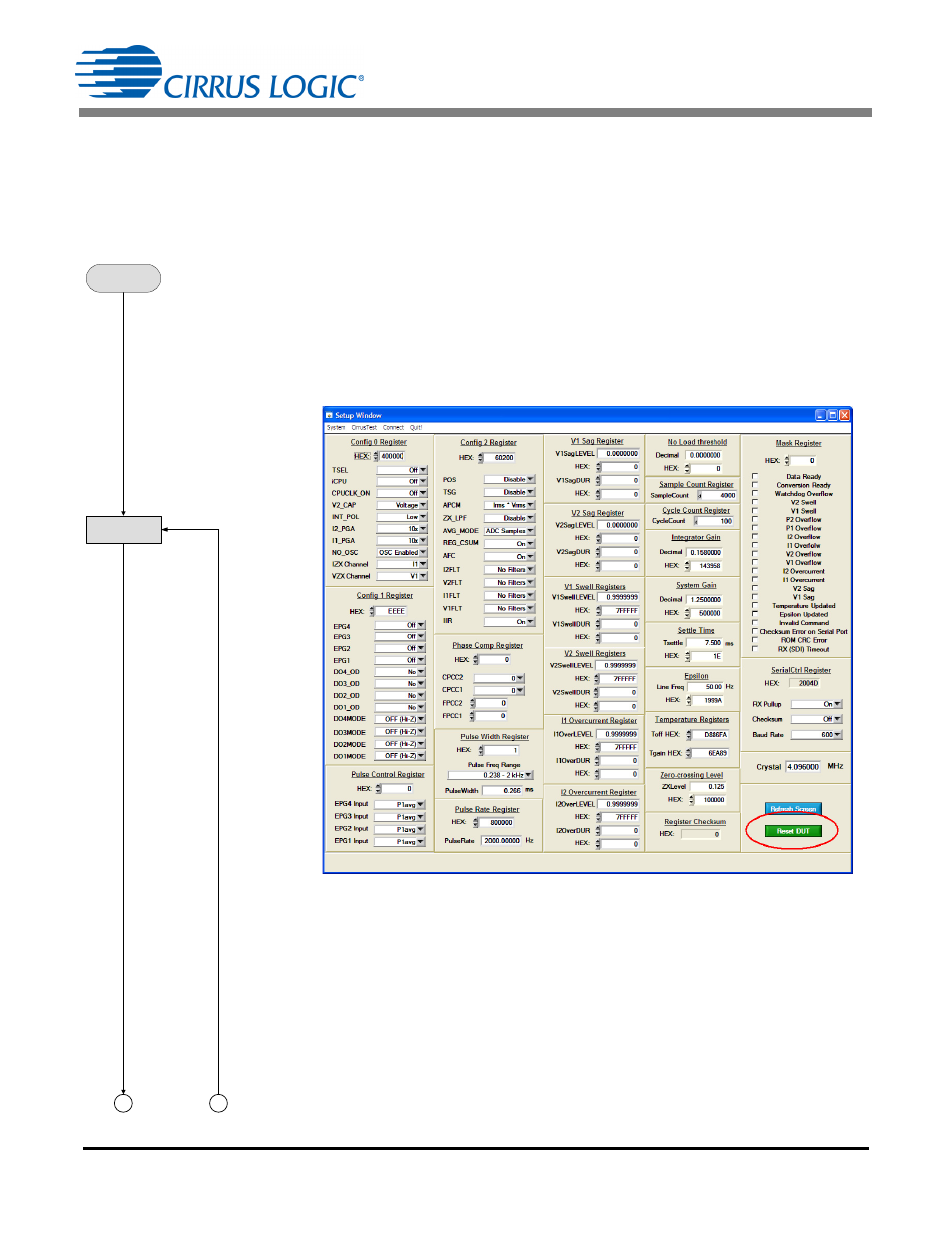

6.2 Main Calibration Flow Diagram Using the CDB5484

The following flow diagram shows the implemented of gain calibration using the CDB5484U and a PC as the
controller. The MTE source is used to provide the source voltage and load current. Each step of the flow shows
the CDB5484 GUI screen capture of execution and reading results. The register writes and reads are all identi-
fied for easy compares to the GUI screen. The GUI is not promoted for production level calibration but does pro-
vide an excellent debugger for customer flow evaluation.

POWER UP
Power up CDB5484U per data sheet using terminals J36 and J37.

RESET
(See Figure 20.)
SDI = 0xC1

Reset CS5484 software Reset.

Figure 20. Setup Window

RESET

POWER UP

1

2
