RESTORE NO LOAD CONFIGURATION
(See Figure 15.)
P1 Offset
SDI = 0x90
0x64 0x000003
Write Register P1 Active Power Offset
SDO = 0xFF
0xFF 0xFFFFFF
(Page 16, Register 36)
SDI = 0x90
0x24 0xFFFFFF
Read Register P1 Active Power Offset
SDO = 0xFF
0xFF 0x000003
(Page 16, Register 36)
Q1 Offset
SDI = 0x90
0x66 0x000002
Write Register Q1 Reactive Power Offset
SDO = 0xFF
0xFF 0xFFFFFF
(Page 16, Register 38)
SDI = 0x90
0x26 0xFFFFFF
Read Register Q1 Reactive Power Offset
SDO = 0xFF
0xFF 0x000002
(Page 16, Register 38)
P2 Offset
SDI = 0x90
0x6B 0x000001
Write Register P2 Active Power Offset
SDO = 0xFF
0xFF 0xFFFFFF
(Page 16, Register 43)
SDI = 0x90
0x2B 0xFFFFFF
Read Register P2 Active Power Offset
SDO = 0xFF
0xFF 0x000001
(Page 16, Register 43)
Q2 Offset
SDI = 0x90
0x6D 0x000002
Write Register Q2 Reactive Power Offset
SDO = 0xFF
0xFF 0xFFFFFF
(Page 16, Register 45)
SDI = 0x90
0x2D 0xFFFFFF
Read Register Q2 Reactive Power Offset
SDO = 0xFF
0xFF 0x000002
(Page 16, Register 45)
SINGLE CONVERSION
(See Figure 16.)

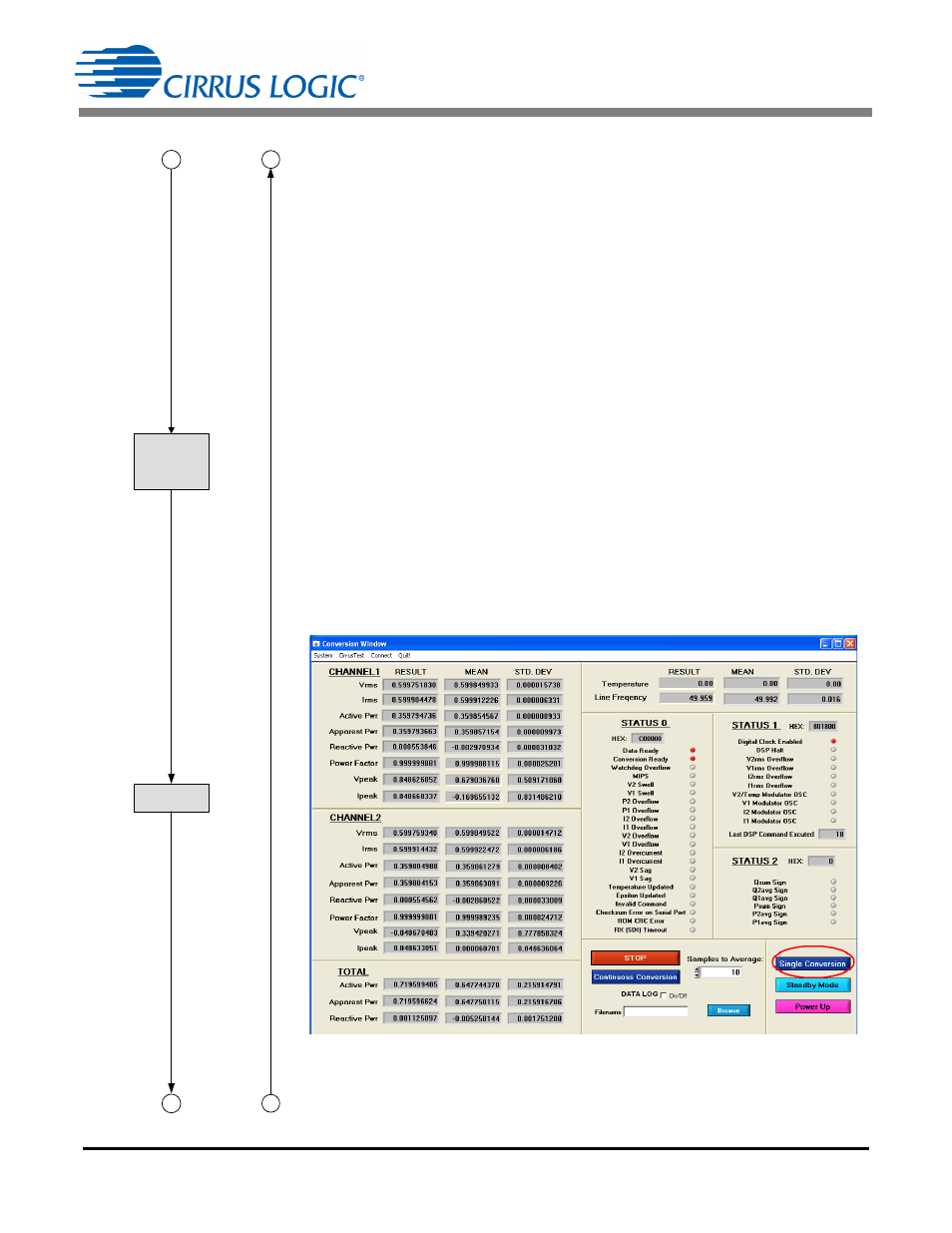

Figure 16. Conversion Window
From NVM
RESTORE
NO LOAD
CONFIGURATION
10
9
8
7
SINGLE
CONVERSION
