6 Commissioning, operation
WIKA Operating Instruction, Model Pascal ET and Pascal ET/IS 37
GB
By selecting I/O the procedure requires to select the type and the range of the sensor to be used.
The sensor is identified by the measurement range and the measurement mode (g = gauge
pressure or a = absolute pressure). This information is displayed under the writing PE-1 (first
external sensor) or PE-2 (second external sensor). See the the figure below as example:

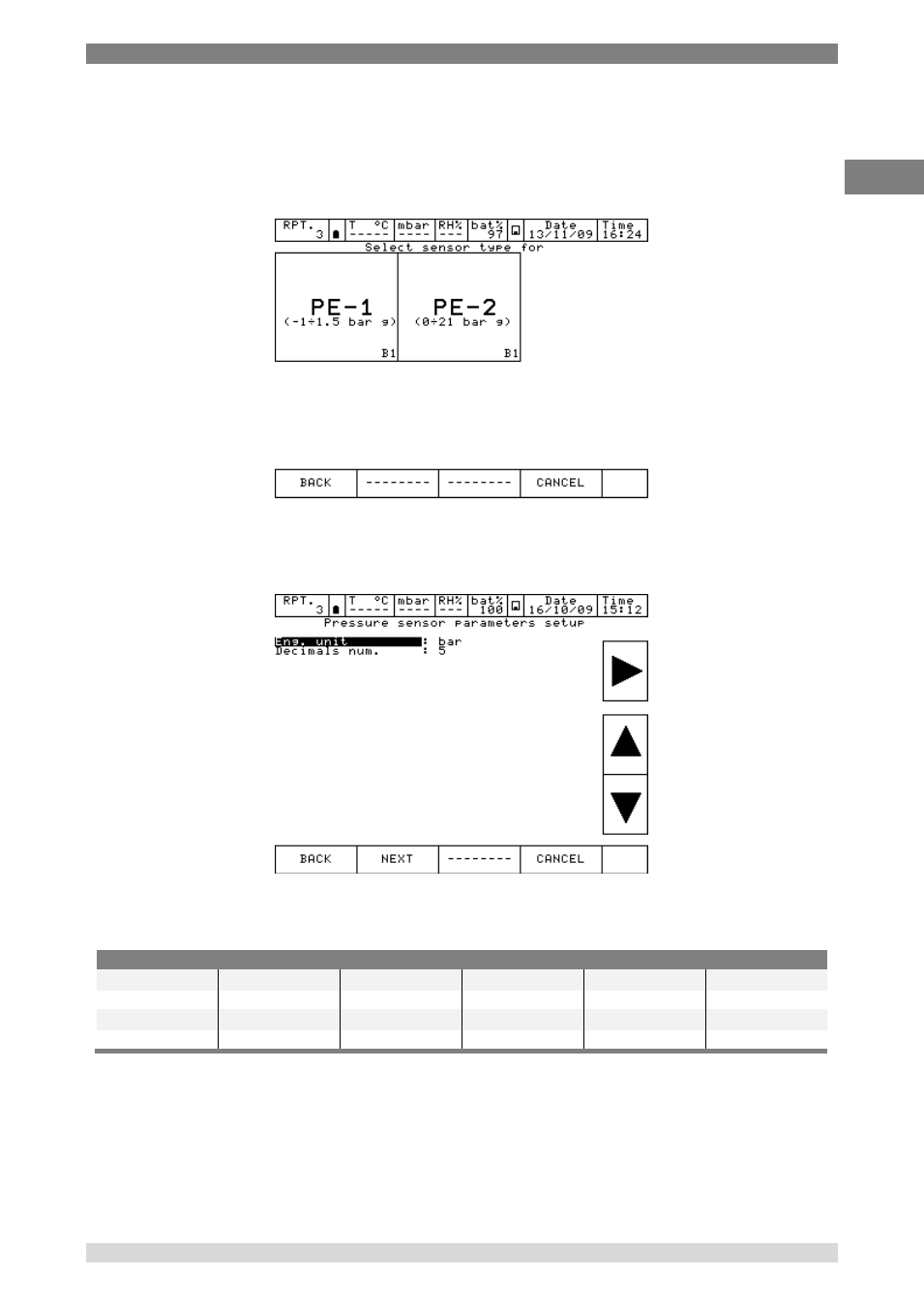

Figure 26 – Pressure sensor selection
When the sensor has been selected, the next page helps to set the engineering unit and related
number of decimals.
Figure 27 – Pressure sensor parameters selection
The pressure engineering units available are:
Measure unit
bar mbar ftH
2
O@4°C inH
2
O@4°C inHg@0°C psf
psi atm torr mH
2
O@4°C cmH
2
O@4°C mmH
2
O@4°C
mHg@0°C cmHg@0°C mmHg@0°C kg/m 2 @g_std kg/cm 2 @g_std MPa
kPa hPa Pa
