8 Care and maintenance
S Recommendation:
Return the product to Festo for inspection after every 10,000 kilometres run.
S Do not adjust screws or threaded pins for which there are no direct demands
for modification in the operating instructions.
Lubricating the roller guide
S Lubrication interval: as required, in principle at least after 10.000 km.
S Note that lubrication must be carried out more frequently:
ć in dusty and dirty environments,
ć with very short work strokes (running−in at a position).
S Lubricate the FDG−...−ZR−RF at the lubricaĆ
tion nipples on both sides of the slide.
Oil: e.g. Constant OY 390 from Klüber,
München
Grease gun: see Accessories.
Fitted into restricted spaces:
S Use blast pipe B (axial opening) or C
(radial opening) instead of the stanĆ
dard blast pipe A.
S Move through the rated stroke once completely in order to distribute the oil
evenly in the interior of the FDG−...−ZR−RF.
At each maintenance procedure:
S Check that the slide is set free of play and distortion.
If you find something unusual, see the chapter Eliminating faults".
9 Repairs
Faults during operation
S Make sure that the FDG−...−ZR−RF is overhauled only by our repair service
(e.g.Ăif there is play between the slide and the guide).
In this way you will prevent damage to the axis at a later stage. The repair
procedures require settings with very accurate adjustments.

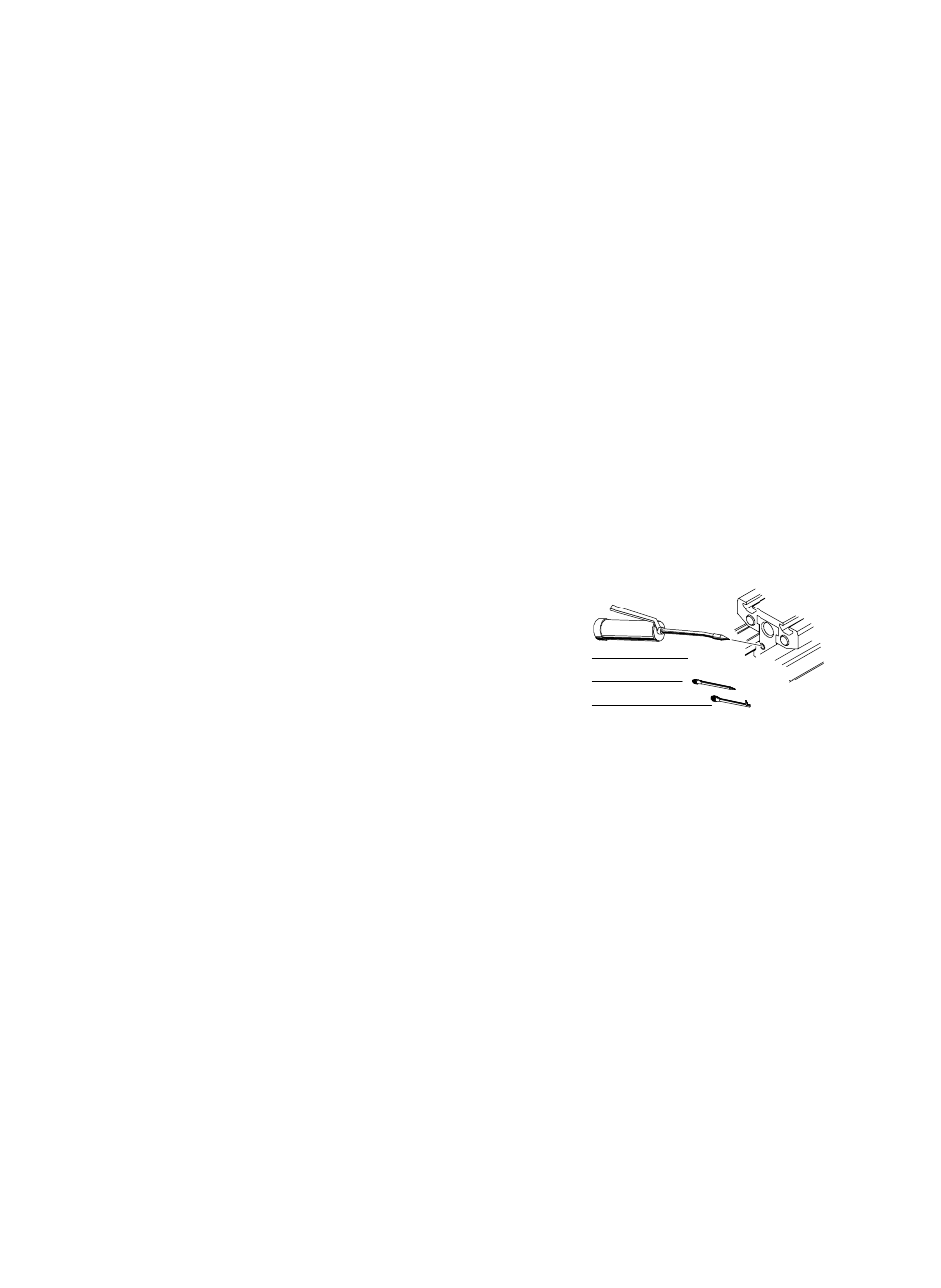

Fig. 14
A
B
C
