FDG−...−ZR−RF
Festo FDG−...−ZR−RF 0404NH English
20
S Fasten the axis fastening kits or centre supports to the FDG−...−ZR−RF as shown
in the following diagram:
If necessary, sliding blocks in the profile grooves can serve as fastening devices.
If the FDG−...−ZR−RF is used in conjunction with a drive axis type DGE−... or
DGP(L)−...:
S Use the distances between supports of the drive axis also for the FDG−...−ZR−RF.
In this way you will avoid distortion due to uneven bending.
S Tighten the fastening screws for the transverse fastening at first only slightly
(see Fig. 7: Q).
The FDG−...−ZR−RF can then be further adjusted until it is mounted correctly.
Fitting the fastening elements
S Make sure that the axis fastening kit or
the centre supports are situated outside
the collision range of the slide, by pushing
the slide once over the complete positionĆ
ing path.

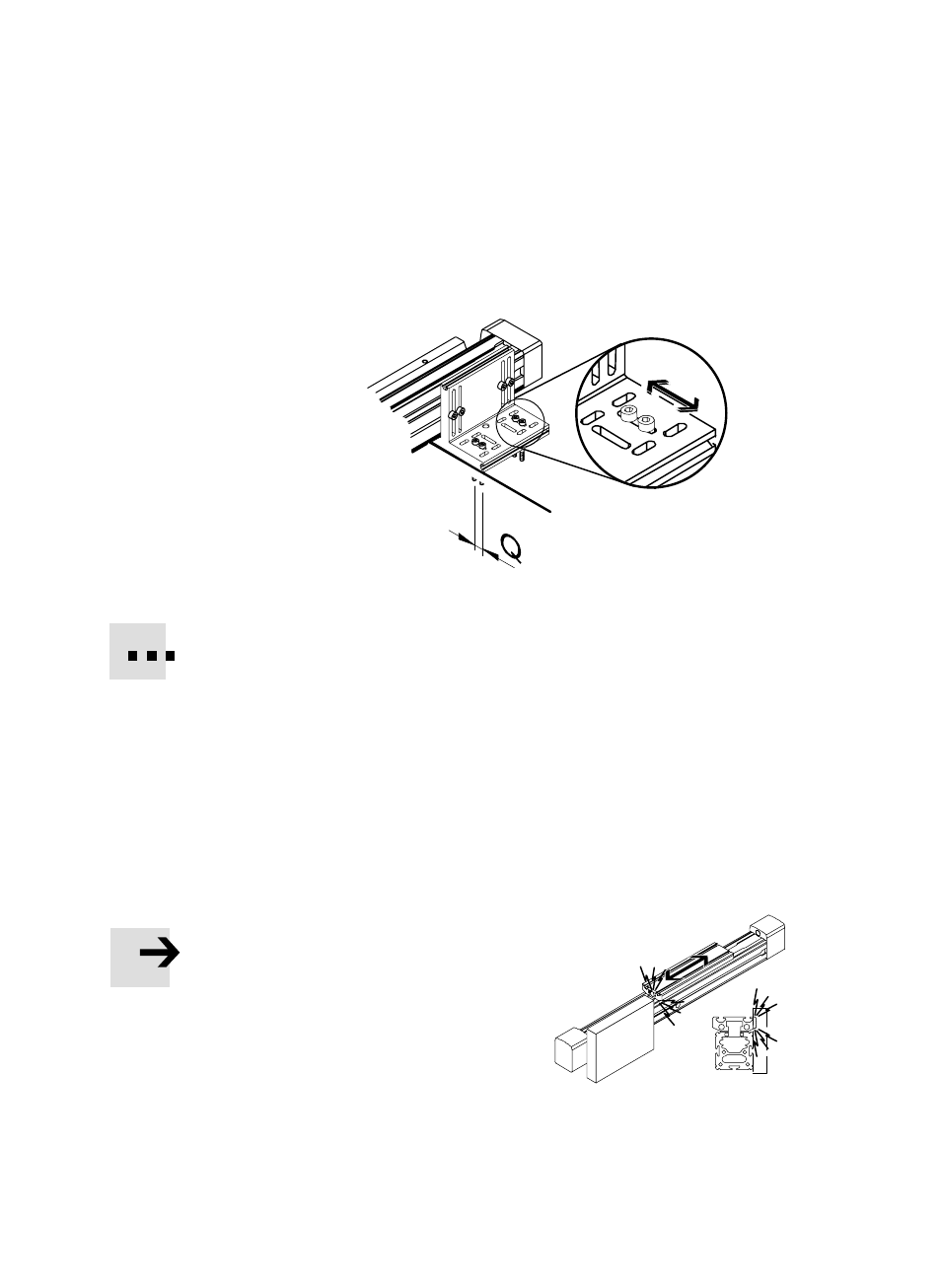

Fig. 7: Q = Play for transverse fastening
УУУУУ
УУУУУ
УУУУУ
УУУУУ
Fig. 8
