FDG−...−ZR−RF
Festo FDG−...−ZR−RF 0404NH English
19
In the case of articles with large stroke lengths:
S Use centre support type MUP−... .

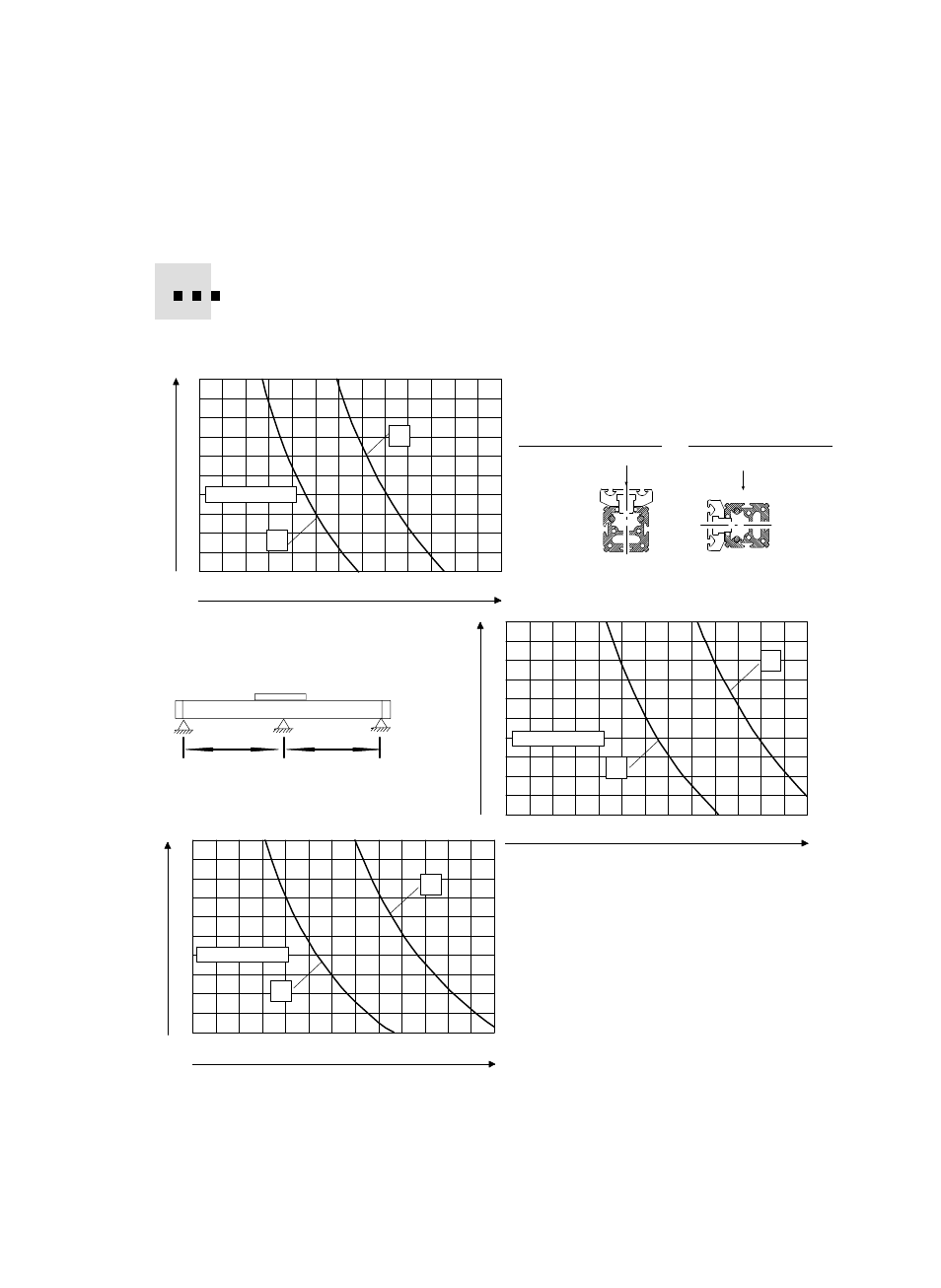

Fig. 6 shows the necessary distances between supports.
L [mm]
F[kg]
1600 2800 3200 3600 4000 2000 2400
0
10
20
30
40
50
60
70
80
90
100
FDG−63−ZR−RF
L [mm]
F[kg]
1200 1500 1800 2100 2400 2700 3000
0
2,5
5
7,5
10
12,5
15
17,5
20
22,5
25
FDG−40−ZR−RF
L [mm]
F[kg]
1200 1500 1800 2100 2400 2700
0
1
2
3
4
5
6
7
8
9
10
3000
FDG−25−ZR−RF
F
Mounting position x
F
Mounting position y x
Fig. 6:
Necessary distance between supports
L for FDG−...−ZR−RF as a factor of
mounting position, rated size and work
load F
y
x
y
x
y
L L
