Goulds Pumps 3393 - IOM User Manual
Page 121
Appendix
NOTICE:Check torqueing tools to ensure the calibration dates are current; the use of an impact
wrench is not allowed for torqueing hardware.

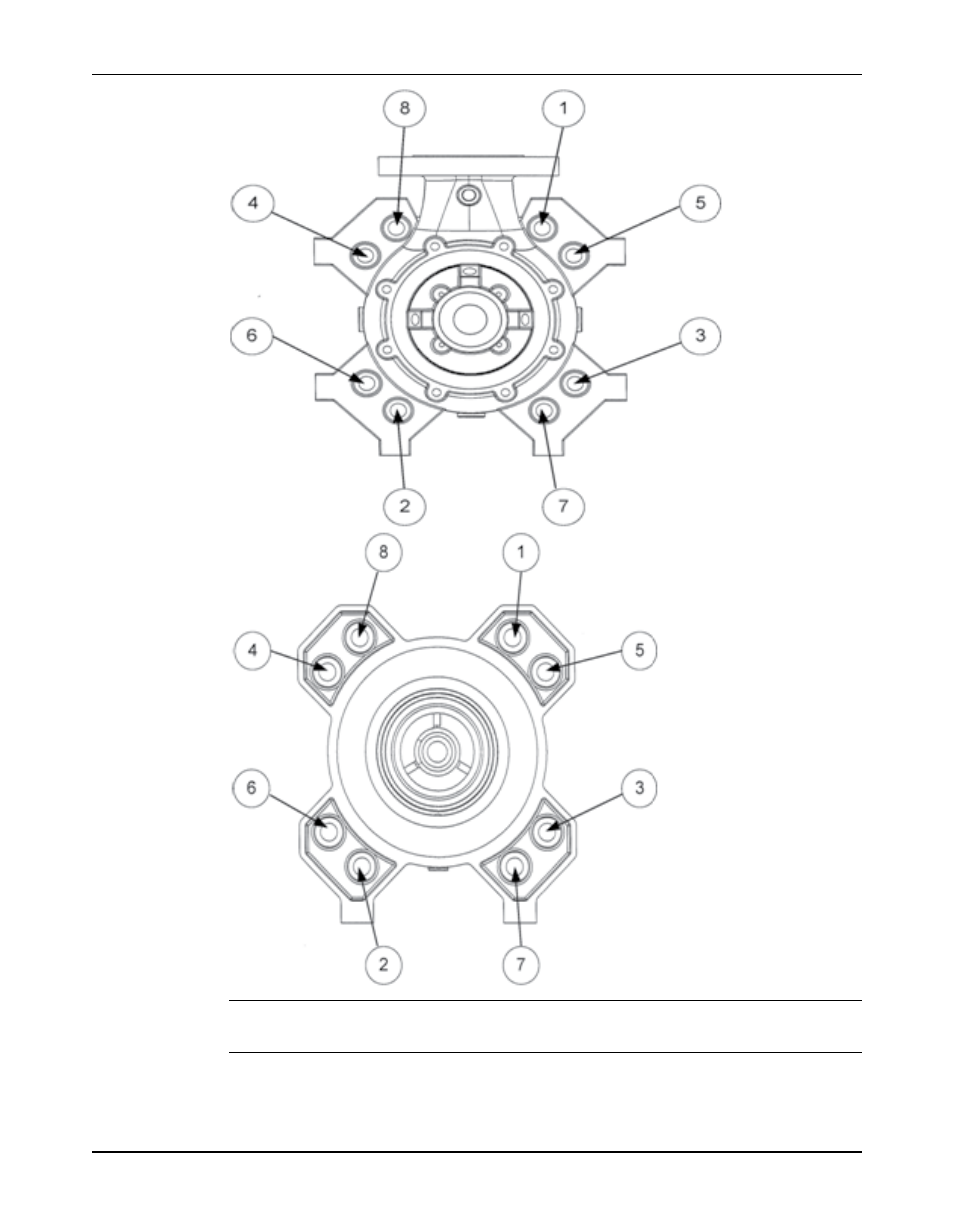

1. Using a cross bolt pattern as noted in the figures above, carefully mate the components in
the liquid end stack to ensure proper metal to metal contact of the assembly.
2. Use tie bolts nuts 1 thru 4 as shown.
Model 3393 Installation, Operation, and Maintenance Manual
119
