Maintenance
Labyrinth oil-seal O-rings are part of the 3196 maintenance kits, or they are sold
separately.

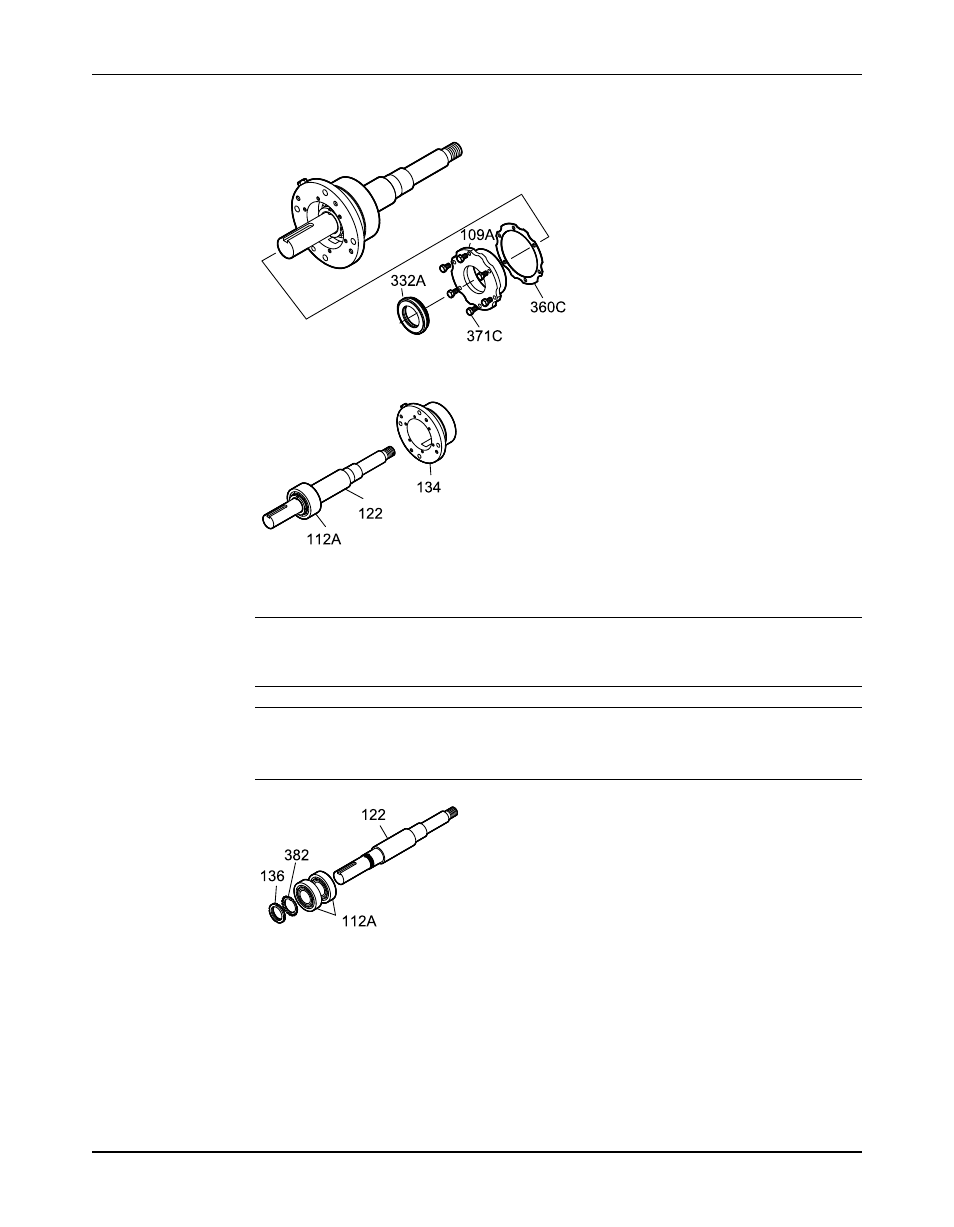

9. Remove the bearing housing (134) and bearings (112A) from the shaft (122) .
10. Remove the bearing locknut (136), the bearing lockwasher (382), and the outboard bearing
(112A).
NOTICE:Use force only on the inner race when you press bearings off the shaft. Do not
use force in situations in which you might break a part. Doing so may result in equipment
damage.
NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in
decreased performance.
Disassemble the bearing frame
1. Remove these plugs from the bearing frame (228A).
• oil-fill plug (113A)
• oil-drain plug (408A)
• sight-oiler plug (408J)
• four oil mist/grease connection plugs (408H)
• oil-cooler inlet and outlet plugs (408L and 408M) or oil cooler
