Maintenance

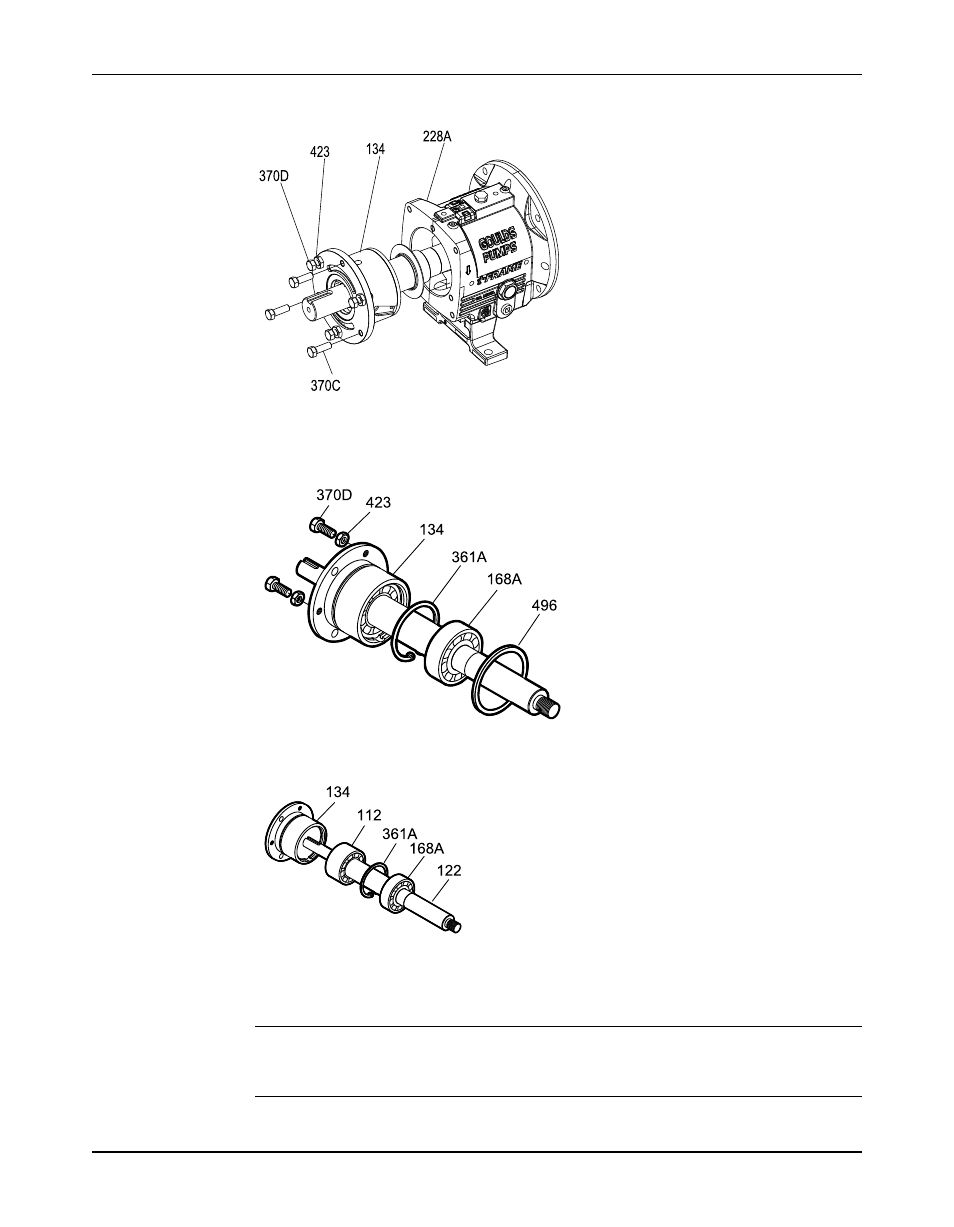

3. Remove the shaft assembly from the bearing frame (228A).
4. Remove the jack screws (370D) with nuts (423).
5. Remove the bearing housing O-ring (496) and the bearings.
6. Remove the outboard bearing retaining snap ring (361A).
7. Remove the bearing housing (134) and bearings (112A and 168A) from the shaft (122).
8. Remove the bearing locknut (136) and bearing lock washer (382).
9. Remove the inboard bearing (168A).
10. Remove the outboard bearing (112A).
NOTICE:Use force only on the inner race when you press bearings off the shaft. Do not
use force in situations in which you might break a part. Doing so may result in equipment
damage.
