Maintenance

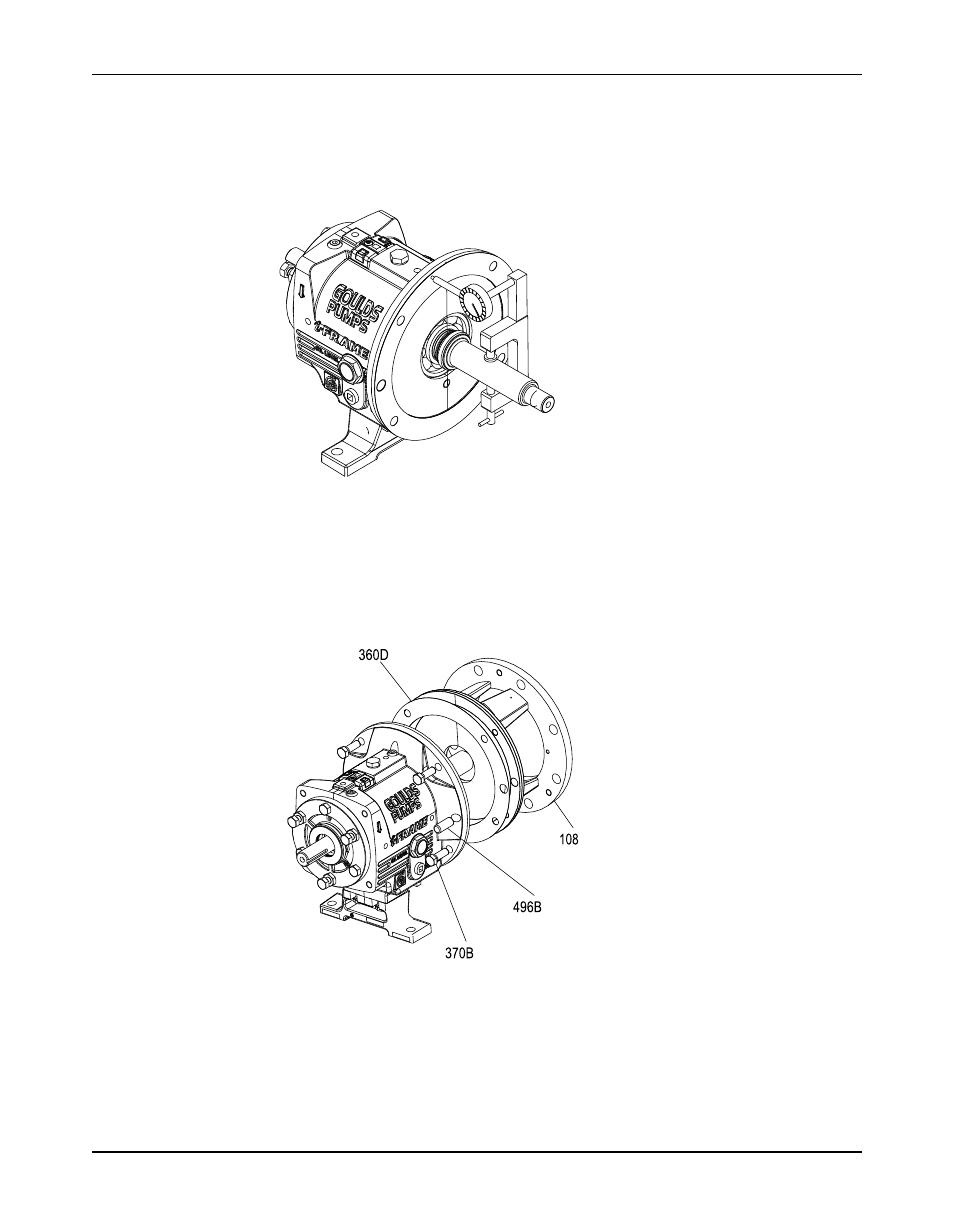

4. Check the frame-face runout by rotating the shaft so that the indicator measures the fit for
360º.
If the total indicator reading is greater than 0.001 in. (0.025 mm), then disassemble and
determine the cause.
5. Place the manila gasket (360D) on the frame (228), and hold the gasket in place by
inserting the dowel pins (469B) in their holes.
The gasket is designed to fit only one way.
6. Install the frame adapter.
a) Place the frame adapter (108) onto the frame assembly.
b) Align the bolt holes and dowel locations on the frame adapter with the bolt holes and
dowel locations on the frame.
c) Install the dowel pins (469B) and bolts (370B). Tighten the bolts in a criss-cross pattern
according to the specifications in the bolt torque values table.
