Product Description

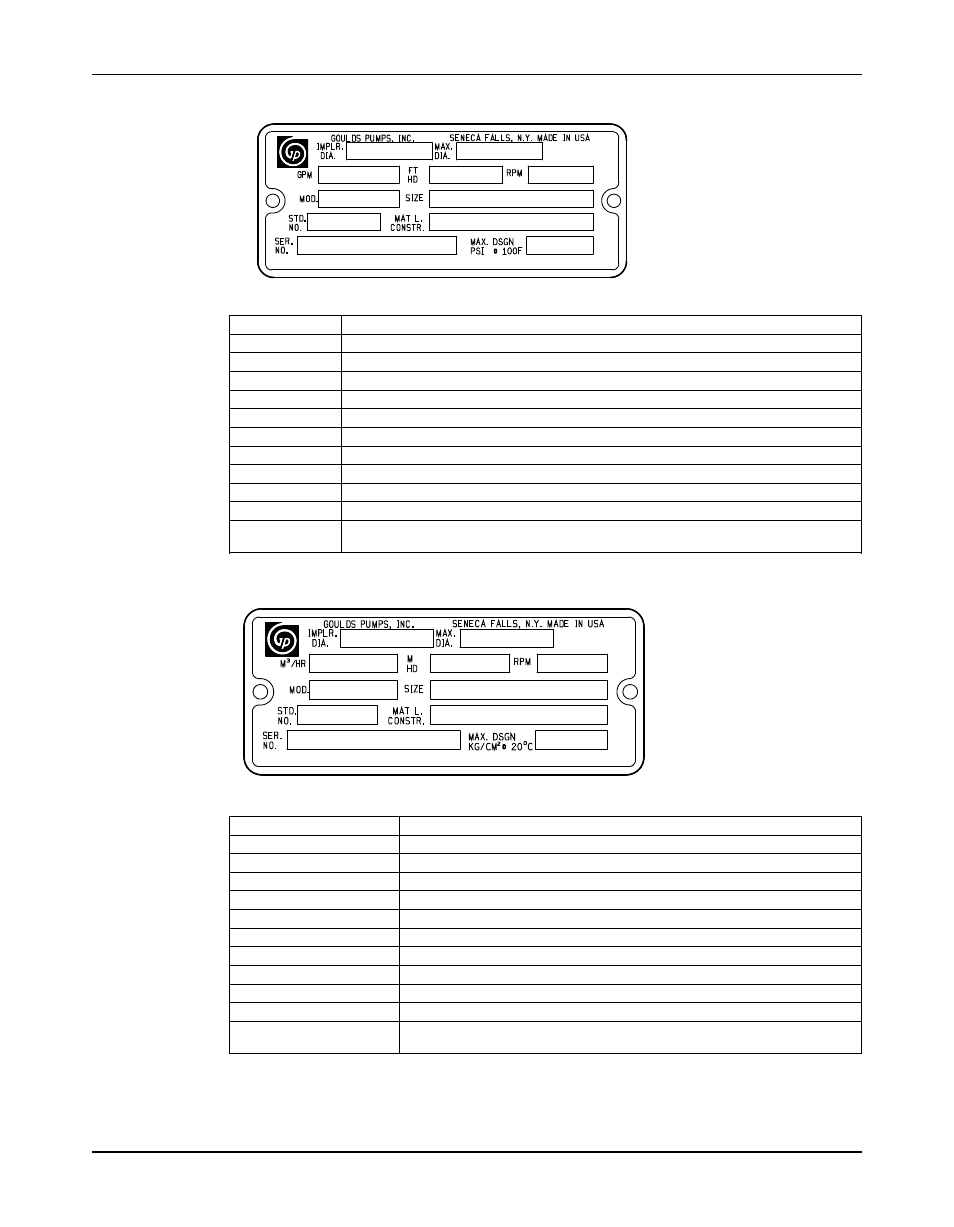

Nameplate on the pump casing using English units
Table 5: Explanation of nameplate on the pump casing
Nameplate field Explanation
IMPLR. DIA.
Impeller diameter, in inches
MAX. DIA. Maximum impeller diameter, in inches
GPM Rated pump flow, in gallons per minute
FT HD Rated pump head, in feet
RPM Rated pump speed, revolutions per minute
MOD. Pump model
SIZE Size of the pump
STD. NO. ANSI standard designation
MAT L. CONST. Material of which the pump is constructed
SER. NO. Serial number of the pump
MAX DSGN PSI Maximum pressure at 100ºF according to the pump design
@ 100F
Nameplate on the pump casing using metric units
Table 6: Explanation of the nameplate on the pump casing
Nameplate field Explanation
IMPLR. DIA. Impeller diameter
MAX. DIA. Maximum impeller diameter
M 3 /HR Rated pump flow, in cubic meters per hour
M HD Rated pump head, in meters
RPM Rated pump speed, in revolutions per minute
MOD. Pump model
SIZE Size of the pump
STD. NO. ANSI standard designation
MAT L. CONST Material of which the pump is constructed
SER. NO. Serial number of the pump
MAX. DSGN KG/CM 3 @ Kilograms per cubic centimeter at 20°C
20°C
Model 3196 i-FRAME Installation, Operation, and Maintenance Manual 17
