Maintenance

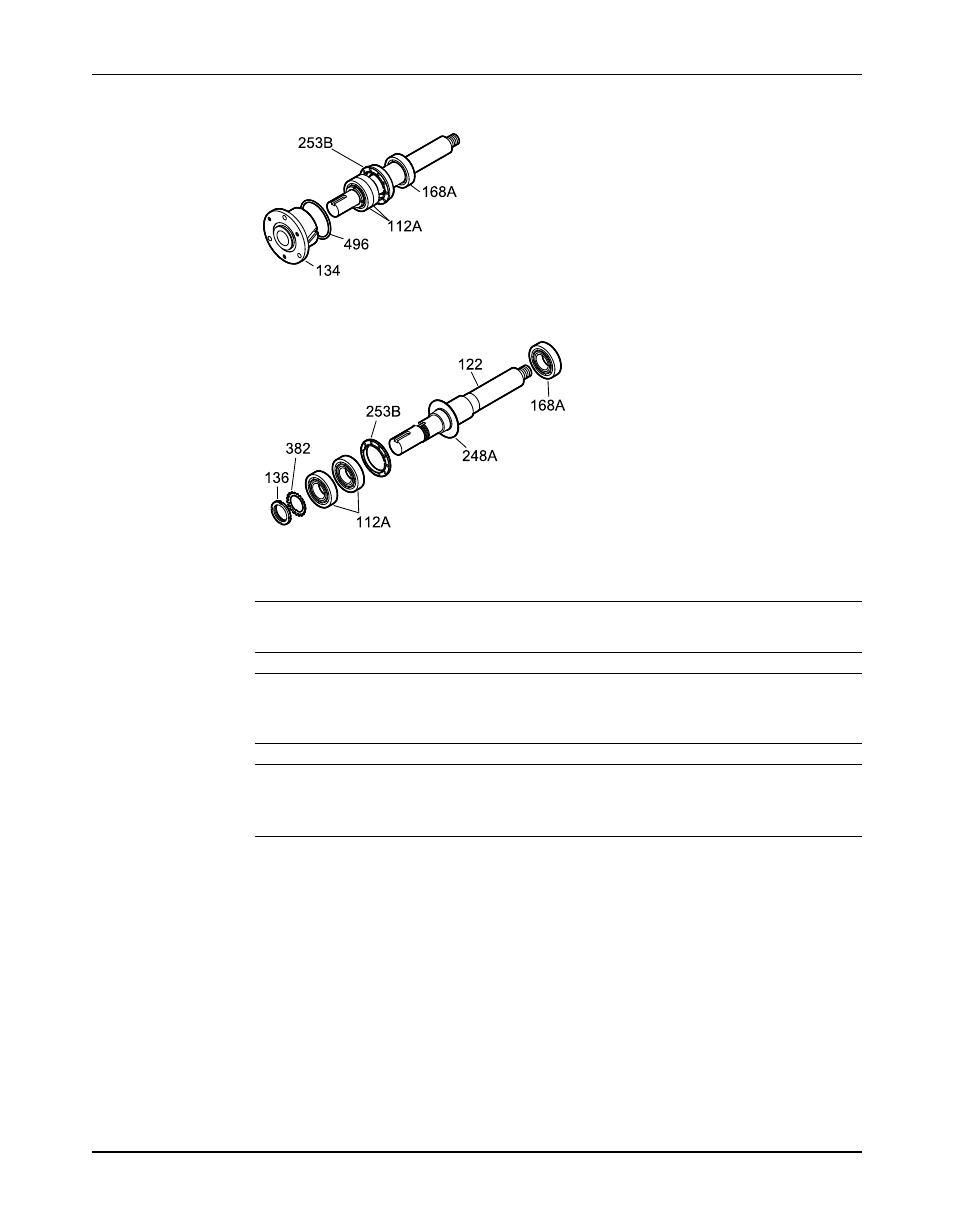

6. Remove the bearing housing (134) and the bearings (112A and 168A) from the shaft (122).
7. Remove the bearing housing O-ring (496) and the inboard bearing (168A).
8. Remove the bearing locknut (136) and the bearing lockwasher (382).
9. Remove the outboard bearings (112A) and the clamp ring (253B).
NOTICE:Do not remove the oil flinger unless it is damaged. Doing so may result in
unnecessary shutdown time or equipment damage.
NOTICE:Use force only on the inner race when you press bearings off the shaft. Do not
use force in situations in which you might break a part. Doing so may result in equipment
damage.
NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in
decreased performance.
10. Remove the outboard labyrinth oil seal (332A) from the bearing housing (134).
11. Remove the O-rings (497F and 497G) if it is necessary.
