Maintenance

9. Remove the O-rings (497F and 497G) if it is necessary.

Labyrinth oil-seal O-rings are part of the 3196 maintenance kits, and they are sold
separately.

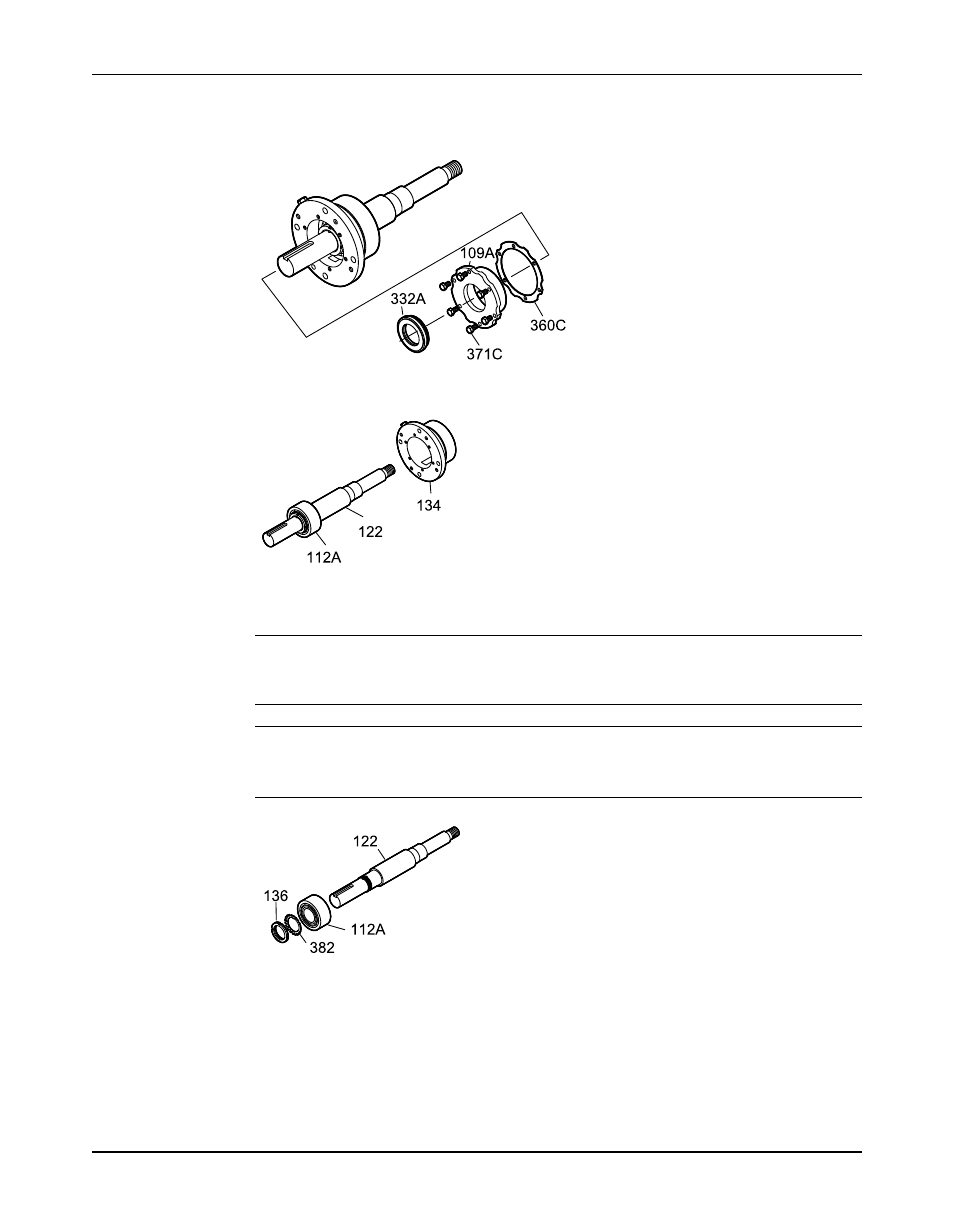

10. Remove the bearing housing (134) and the bearing (112A) from the shaft (122).

11. Remove the bearing locknut (136), the bearing lockwasher (382), and the outboard bearing

(112A).

NOTICE:Use force only on the inner race when you press bearings off the shaft. Do not
use force in situations in which you might break a part. Doing so may result in equipment
damage.

NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in
decreased performance.
