Figure 14 measuring phase noise (1), Figure 15 measuring phase noise (2), Figure 14. measuring phase noise (1) – Agilent Technologies N9340A User Manual
Page 64: Figure 15. measuring phase noise (2)
4
Making Measurements
62
N9340A User’s Guide

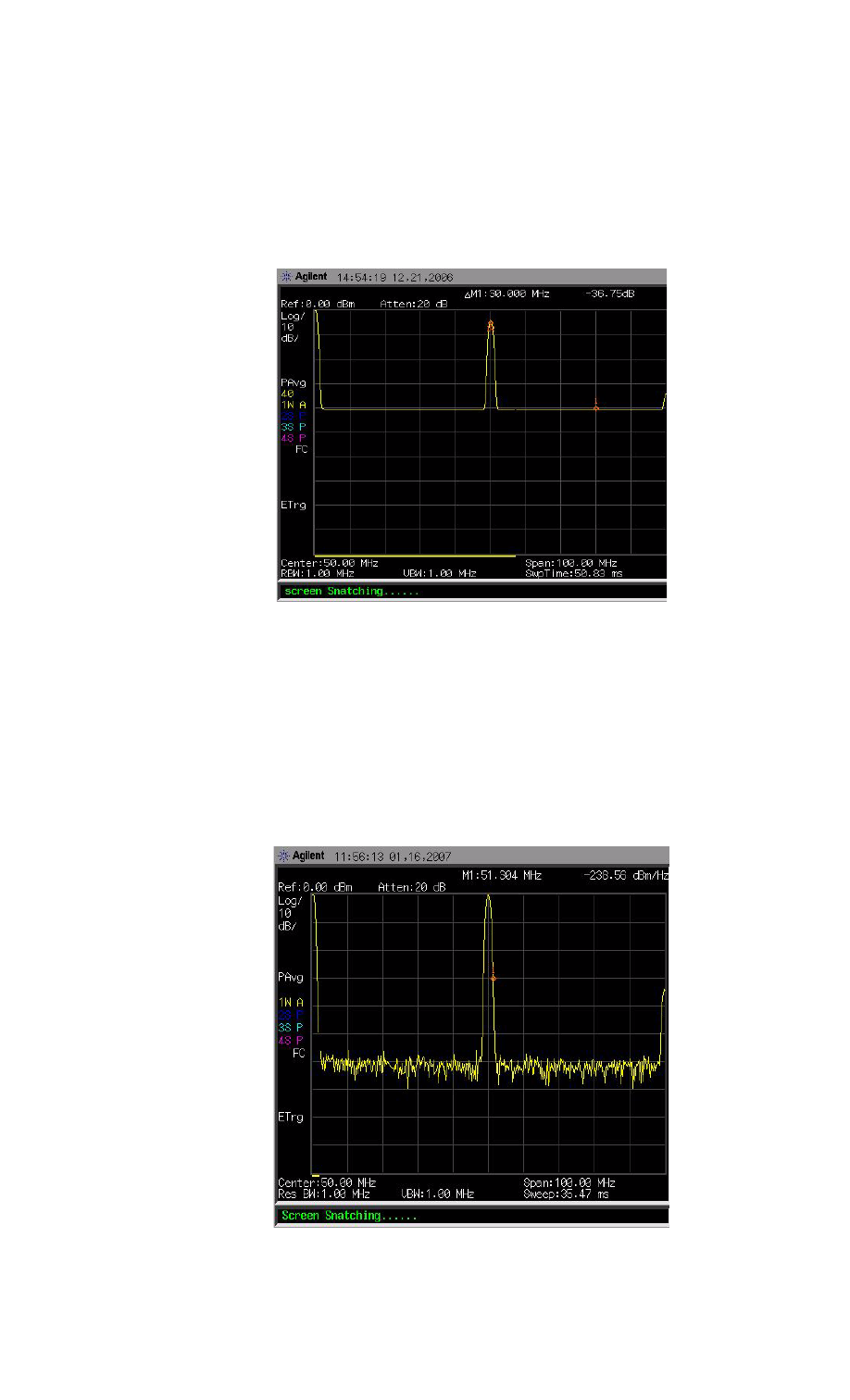

Figure 14 Measuring Phase Noise (1)
N9340A also provides an easy- to- use access for
you to measure phase noise simply by pressing
[MARKER] > {More (1 of 2)} > {Mode} > {Noise}, and
then using the knob, the arrow keys or the
numeric keypad placing the specified marker of
interest.
Figure 15 Measuring Phase Noise (2)
