1 N9340A Overview
12 N9340A User’s Guide

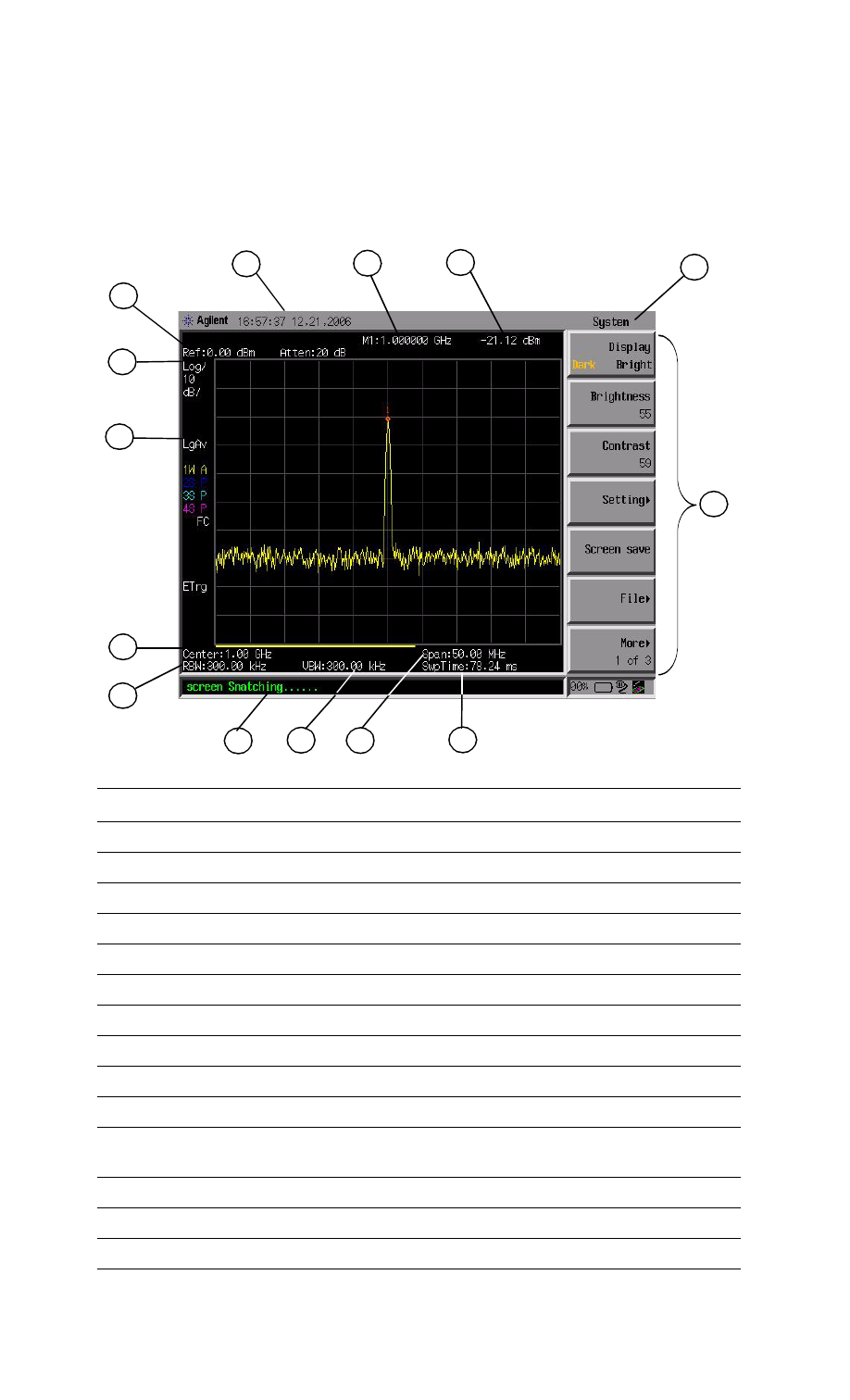

Display Annotations
1
2
3
4
5
6
7 8 9 10
12
11
13 14
Description Associated Function Key
1 Time and Date [SYS] > {Setting} > {General}
2 Reference Level [AMPTD]
3 Amplitude Scale [AMPTD]
4 Detector Mode [TRACE] > {More (1 of 2)} > {Detector}
5 Center Frequency [FREQ] > {Center Freq}
6 Resolution Bandwidth [BW/SWP] > {RBW}
7 Display Status Line Displays analyzer status and error messages.
8 Video Bandwidth [BW/SWP] > {VBW}
9 Frequency Span [SPAN]
10 Sweep Time [BW/SWP] > {Sweep Time}
11 Key Menu See key label description in the key reference for
more information.
12 Key Menu Title Refers to the current activated menu function
13 Marker Frequency [Marker]
14 Marker Amplitude [Marker]
