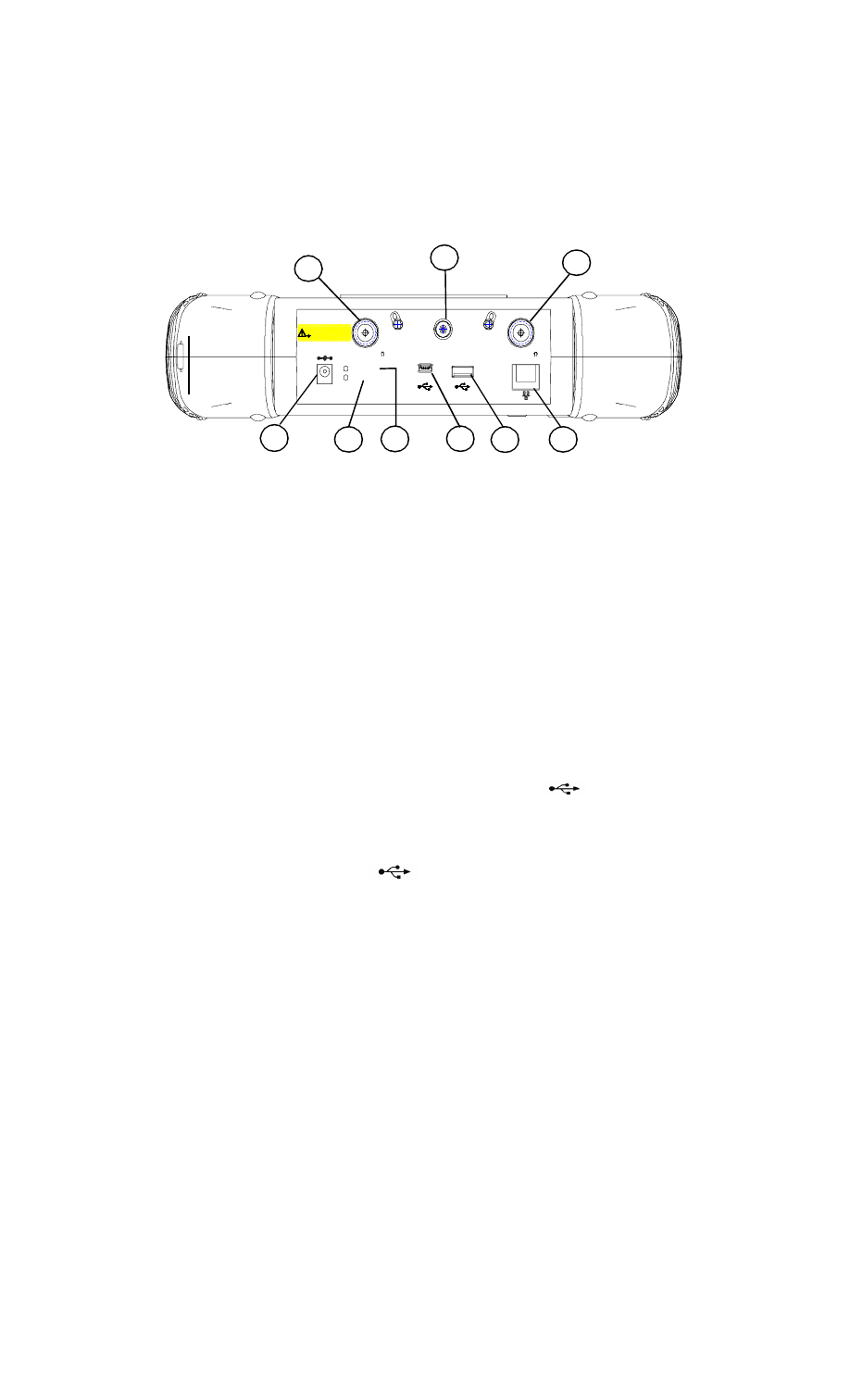

Top Panel Overview
PC
Ext. Po w er
12-18 VD C
80 W MAX
Cha rging
RF IN PUT 50 RF OU T 50
EXT TRIG IN /
EXT REF IN
50 VD C M AX
33 dBm (2 W ) M AX
1 2
8
3 4 5 6
7
9
12-18 VDC
55W MAX
1. DC Connector
Provides input for the DC power source via an
AC- DC adapter. Make sure that the line- power
source outlet has a protective ground contact.
2 . Charging indicator
Lights when the battery is charging.
3. External power indicator
Lights when an external DC power is input to
the analyzer via the AD- DC adapter
.
4. USB interface (for PC connection)
Provides a connection between the analyzer and
a PC for data transfer of further process.
5. USB interface
Provides an connection between the analyzer
and a USB memory disk.
6. LAN Interface (For future expansion)
7. RF OUT Connector (For future expansion)
8. EXT TRIG IN/REF IN (BNC, Female)
Connects to an external TTL signal or a 10 MHz
reference signal. The TTL signal is used to
trigger the analyzer’s internal sweep.
9. RF IN Connector (Type N, Female)
Accepts an external input with a frequency
ranges from 100 kHz to 3 GHz.
PC
