1 N9340A Overview
10 N9340A User’s Guide

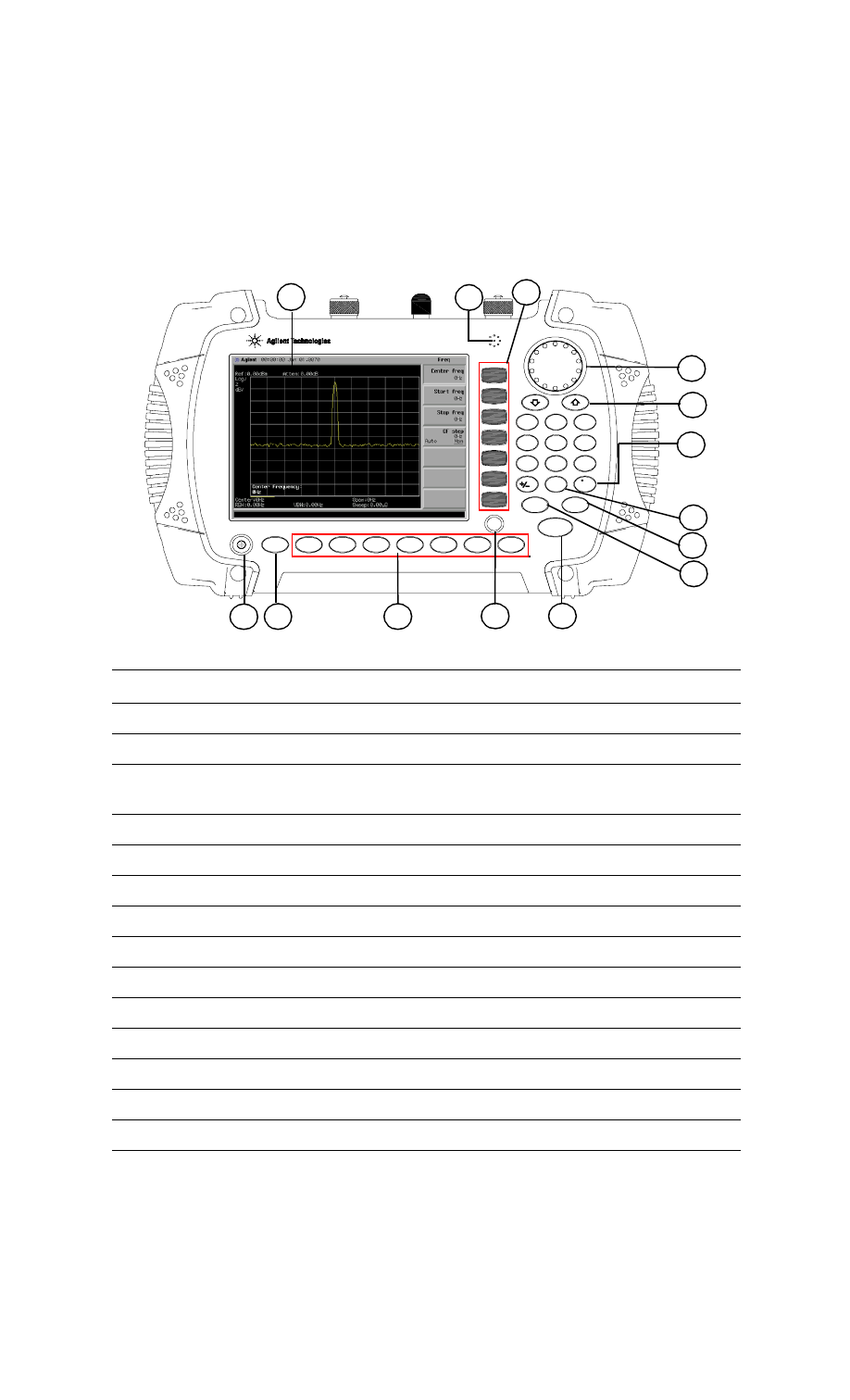

Front Panel Overview
N 9340 A
HAN D HELD SPECTRU M AN ALY ZER
10 0 kH z - 3.0 G Hz
PRESET
EN TER
FREQ SPAN AM PTD
BW /
SW P SYS M O D E M EAS TRACE
ESC/ CLR
2
D EF
3
G HI
1
ABC
5
M N O
4
JK L 6 PQ R
8
VW X
7
STU
9
Y Z_
0
SAVE LIM IT
M ARK ER
14
1 2 3 4 5
6
7
8
9
10
11
12
13
Caption Function
1 Power Switch Toggles the analyzer between on and off
2 SYS Brings up a submenu for system setups
3 Function keys Includes hardkeys: FREQ, SPAN, AMPTD, BW/SWP, TRACE,
MEAS, and MODE
4 Preset Returns the analyzer to a known state
5 Enter Confirms a selection or configuration
6 MARKER Activates marker function
7 ESC/CLR Escapes the dialog box or clears the character input
8 Save Saves the current traces when numeric keypad is restrained
9 LIMIT Sets limit lines for quick Pass/Fail judgement
10 Arrow keys Increases or decreases a parameter step by step
11 Knob Selects an option item or edits a numerical parameter
12 Softkeys Indicates current menu functions
13 Speaker Speaks when in demodulation mode
14 Screen Displays measured traces and status
