Agilent B2200 User’s Guide, Edition 2 3-29
Front Panel Operation
Front Panel Keys

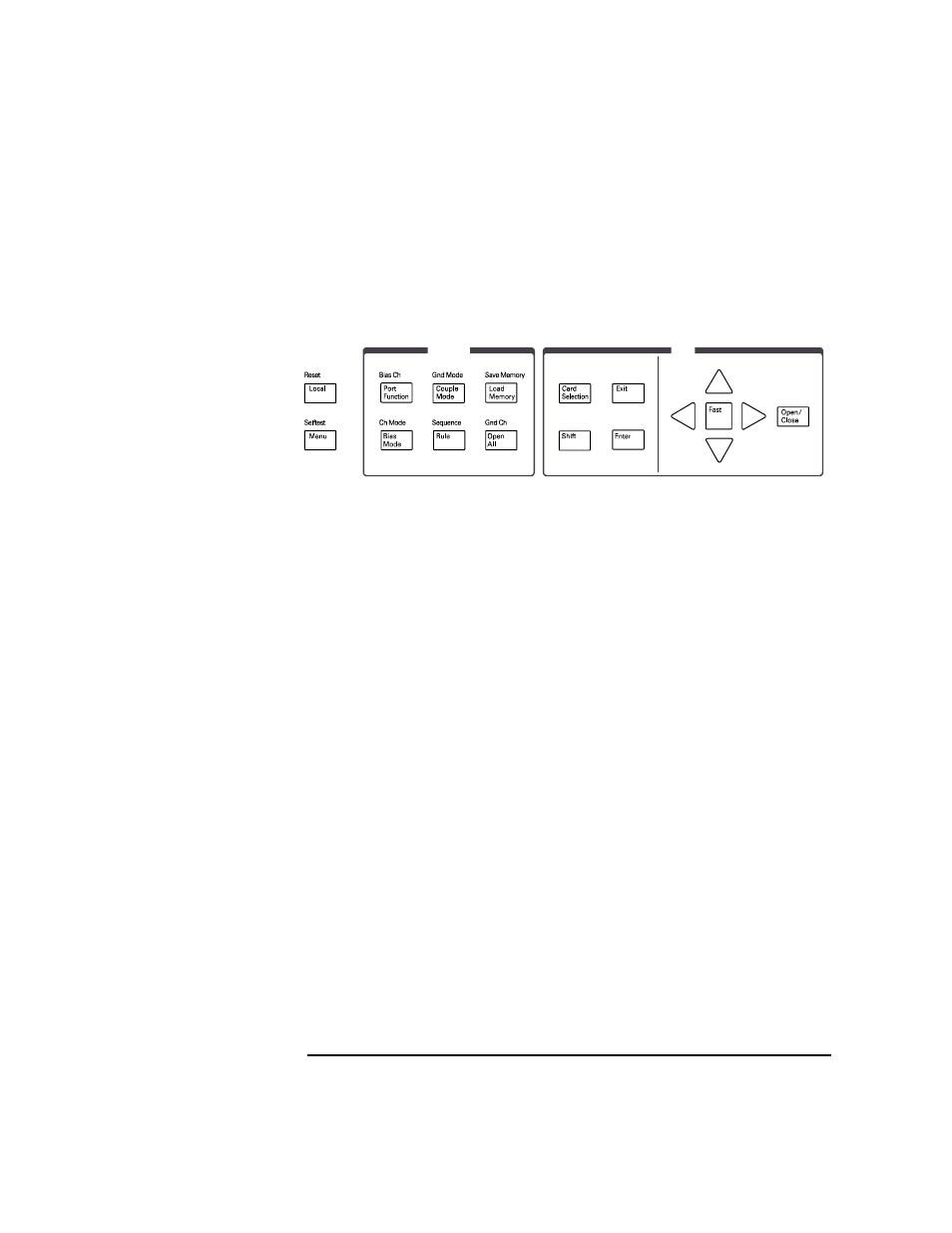

Edit key group
The Edit key group is used to select the switch module to be monitored, move the
cursor in the display, make the setup value effective, return to the previous menu or
display, and so on.
Card Selection Selects the switch module to be monitored on the LCD. The Card# status indicator
will change the slot number (card number) when the
Card Selection key is pressed.
This key is not effective when the Card# indicator shows A (auto configuration
mode).
Shift Enables the sub key function. The sub key label has been printed on the front panel
above the key. The label color is blue.
Exit Returns the display to the previous menu or display without making the setup
effective.
Enter Makes the setup effective, and returns the display to the previous menu or display.
Fast Used with the arrow key. Pressing the Fast key and an arrow key speeds up changing
the setting value.
arrow keys Moves the cursor on the display, displays another selection for a setup message, or
changes the value of the digit specified by the cursor.
For the LED matrix, moves the blink-LED.
Open/Close When no blink-LED is on the LED matrix, enters into the LED matrix based switch
control mode. The blink-LED will appear. In this mode, the arrow keys and
Fast key
are available. Other keys will work to exit this mode.
When the blink-LED is on the LED matrix, changes the condition, open or close, of
the switch specified by the blink-LED.
Function Edit
