4-14 Agilent B2200 User’s Guide, Edition 2
Programming
Programming Examples
Using Couple Mode
The following example uses the couple mode.

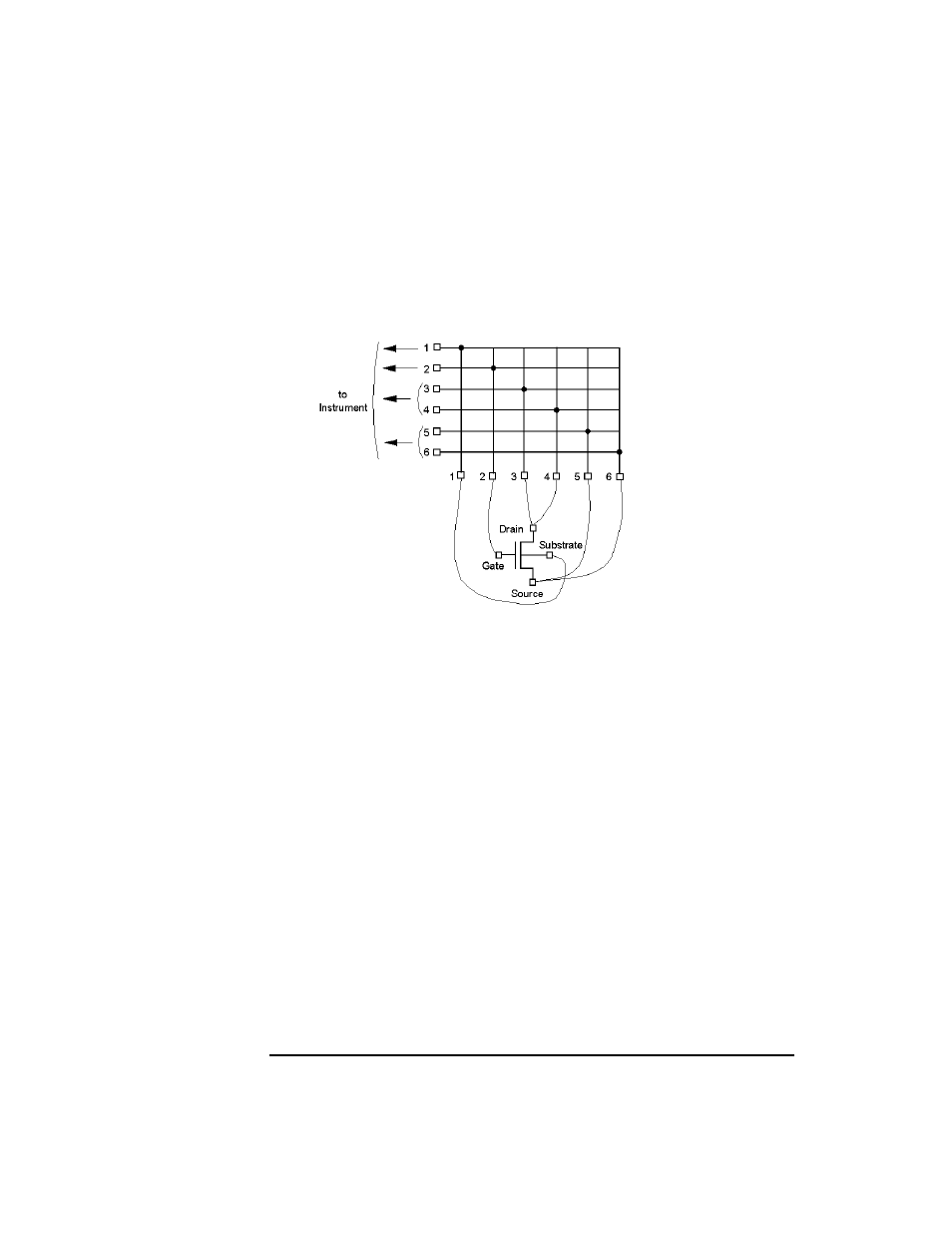

Figure 4-5 Couple Mode Example
Setup: • Channel configuration mode: Auto
• Connection rule: Single
• Connection sequence: Break_Before_Make
• Used module: All switch modules installed in the mainframe.
• Couple port: SMU Input 3-4 and 5-6
• Connection paths:
from SMU1 to Output 1 (channel list 00101)
from SMU2 to Output 2 (channel list 00202)
from SMU3 to Output 3 (channel list 00303)
from SMU4 to Output 4 (coupled with the channel list 00303)
from SMU5 to Output 5 (channel list 00505)
from SMU6 to Output 6 (coupled with the channel list 00505)
