Harmonic Distortion Measurement
The analyzer can simultaneously display the dierence values
between the fundamental and harmonics up to the seventh harmonic .
The test signal used in this example is the output of an amplier with
a 20 MHz sine wave input signal.
T est Signal and T est Device
The following test signal and device are used in this example .
Input T est Signal
Frequency: 100 MHz
T est Device
Amplier
Measurement Setup
Connection
Set up the analyzer as shown in Figure 4-2.

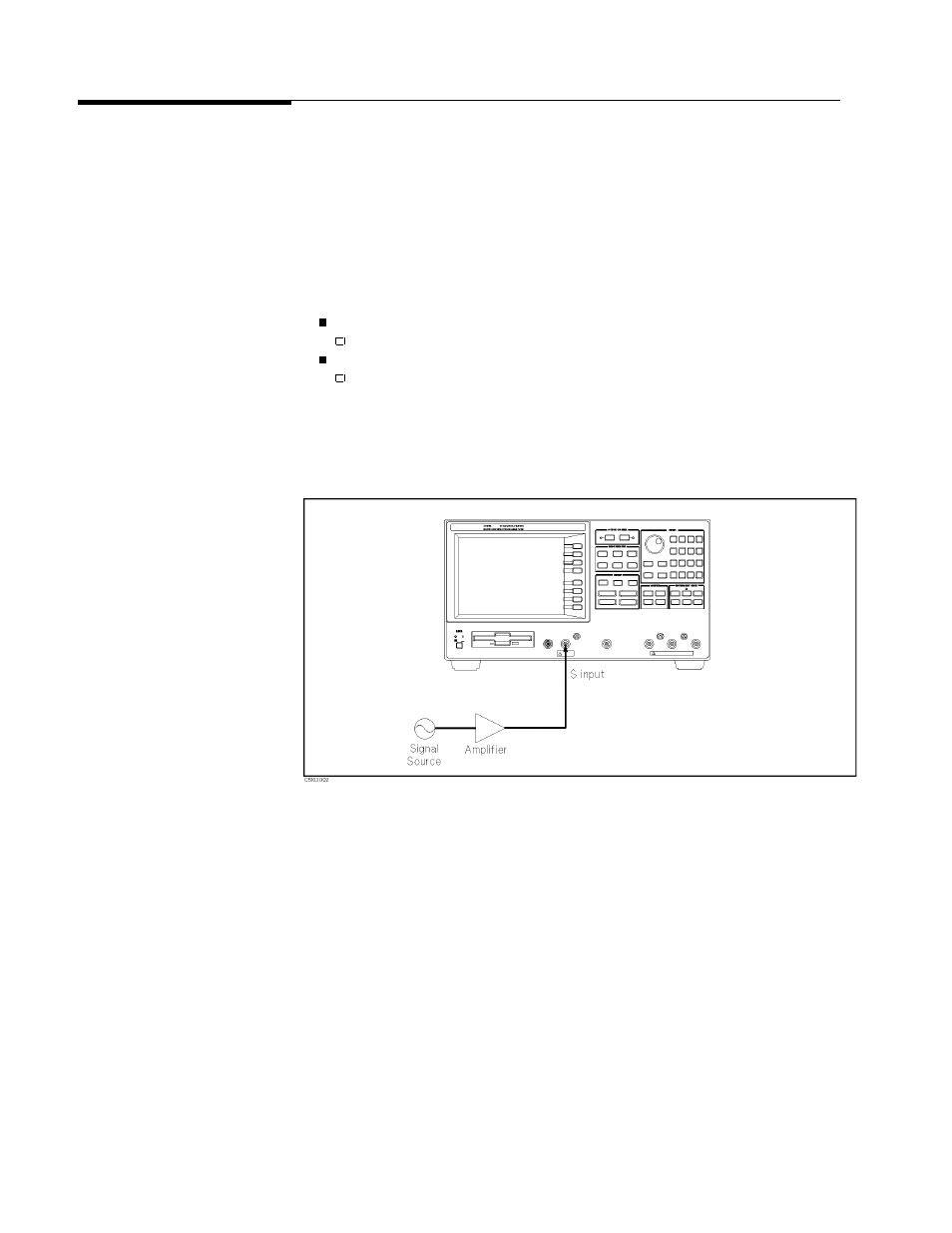

Figure 4-2. Harmonics Measurement Setup
4-2 Spectrum Measurement Examples
