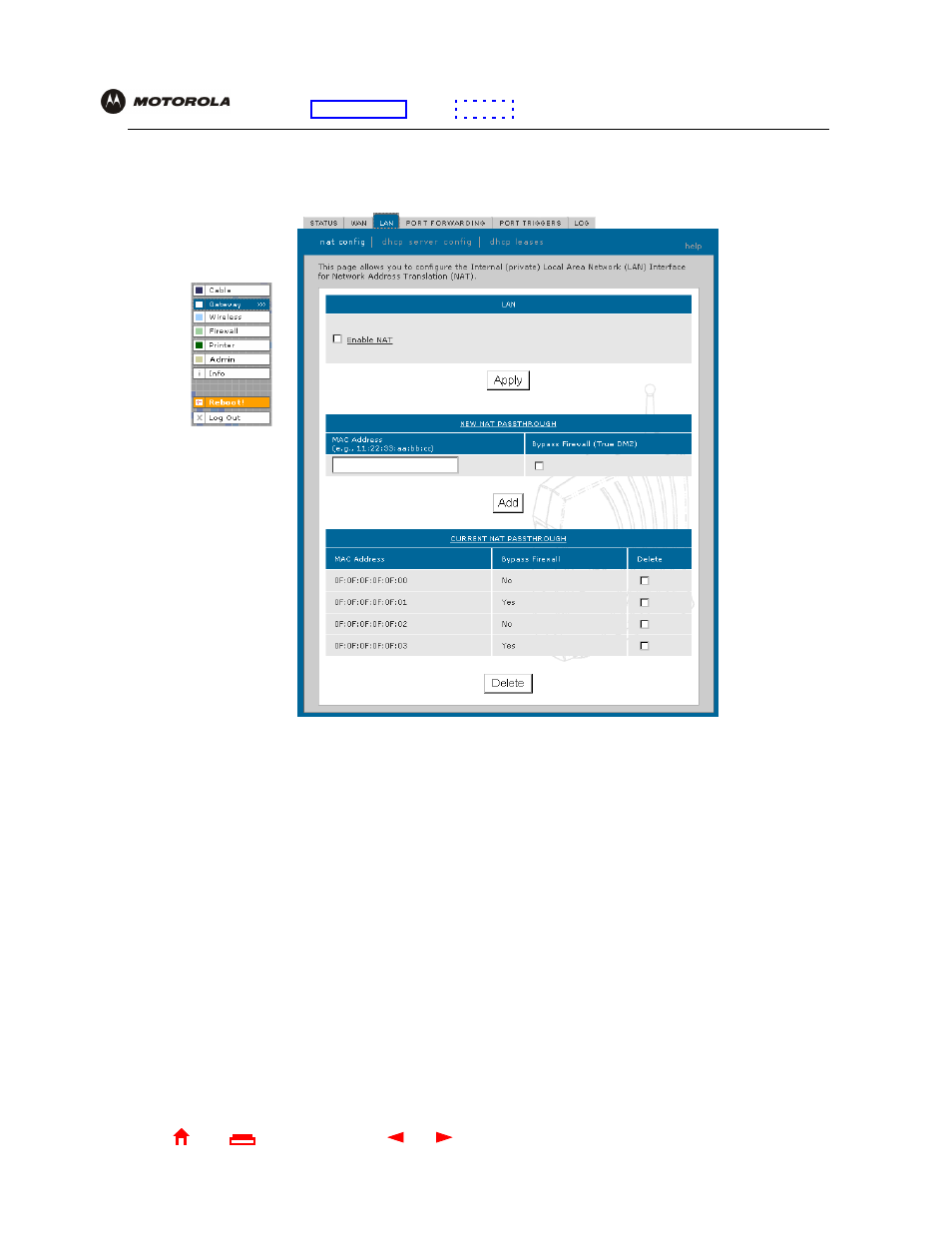

Gateway > LAN — nat config Page

Use this page to enable

NAT

and add clients to the CURRENT NAT PASSTHROUGH list:

Gateway > LAN — nat config page fields

Field or Button

Description

LAN

Enable NAT

If enabled, the single HFC IP Address (public IP address) assigned by the cable provider is
mapped to many private IP addresses on the

SBG1000

LAN.

Apply

Click to apply your changes. You must reboot the SBG1000.

NEW NAT
PASSTHROUGH

Specifies up to 32 computers as passthrough clients not subject to NAT, using their MAC
addresses.

MAC Address

Type the passthrough client MAC address. The format is 16 hexadecimal numerals.

Bypass Firewall
(True DMZ)

Check this box to set the NAT passthrough computer as a DMZ client. Use this setting with
extreme caution because a DMZ client is completely open to Internet hackers.

Add

Click to add the MAC address to the CURRENT NAT PASSTHROUGH list.

CURRENT NAT
PASSTHROUGH

Lists the computers on the LAN that are configured for NAT passthrough.

Delete

Click to delete the selected MAC address from the NAT passthrough list.
