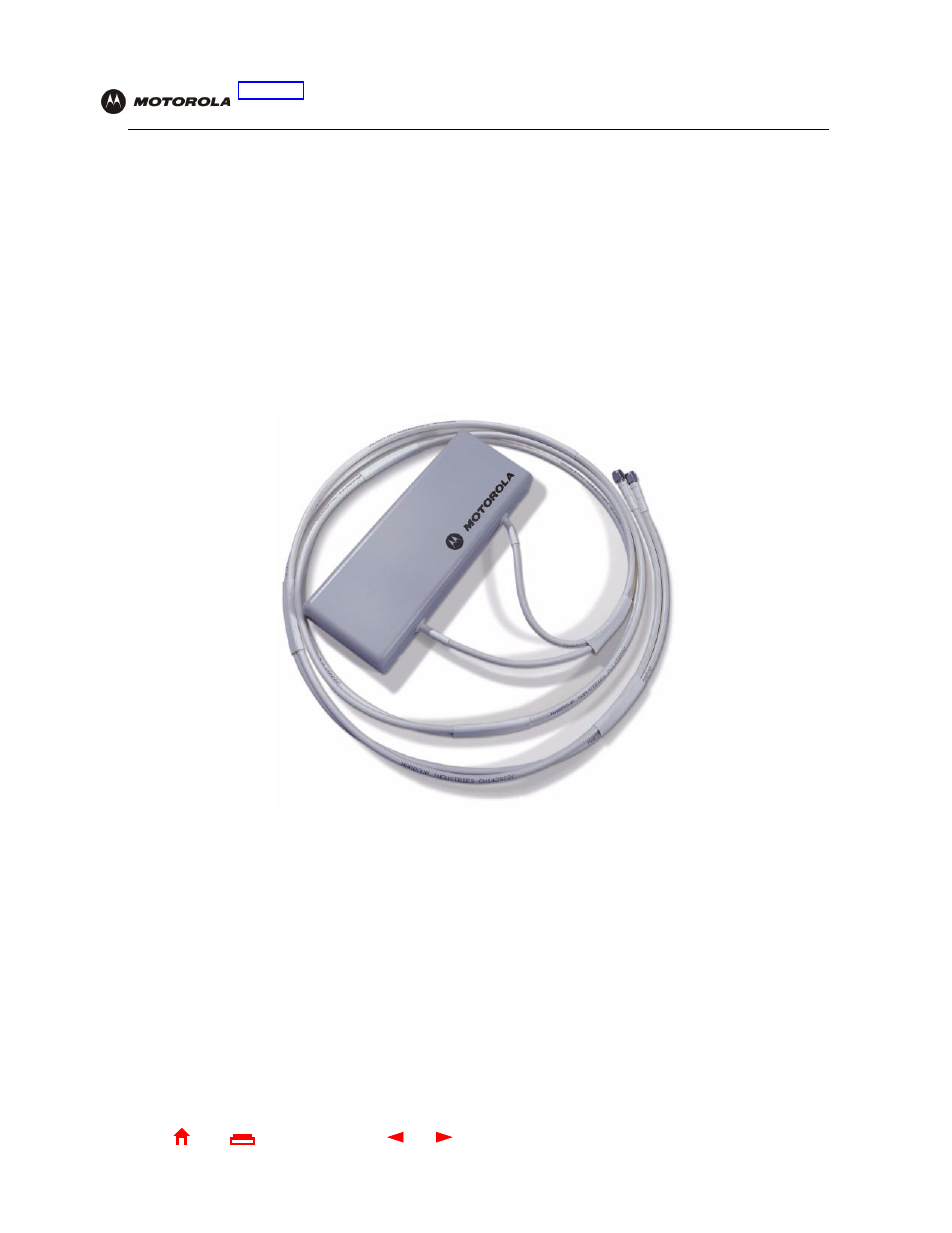

The Motorola ANT11b External Diversity Antenna increases wireless LAN performance and coverage, even in
obstructed locations. The External Diversity Antenna specifications are:
For information about connecting the external antenna to the SBG1000, see “
Installing the Optional External
Motorola ANT11b
External Diversity Antenna
Frequency
2400 to 2500 MHz
Gain
5 dBi peak gain, nominal
Pattern Type
Directional, vertically polarized
Connection
Reverse-polarity TNC male, RG-142 cable
