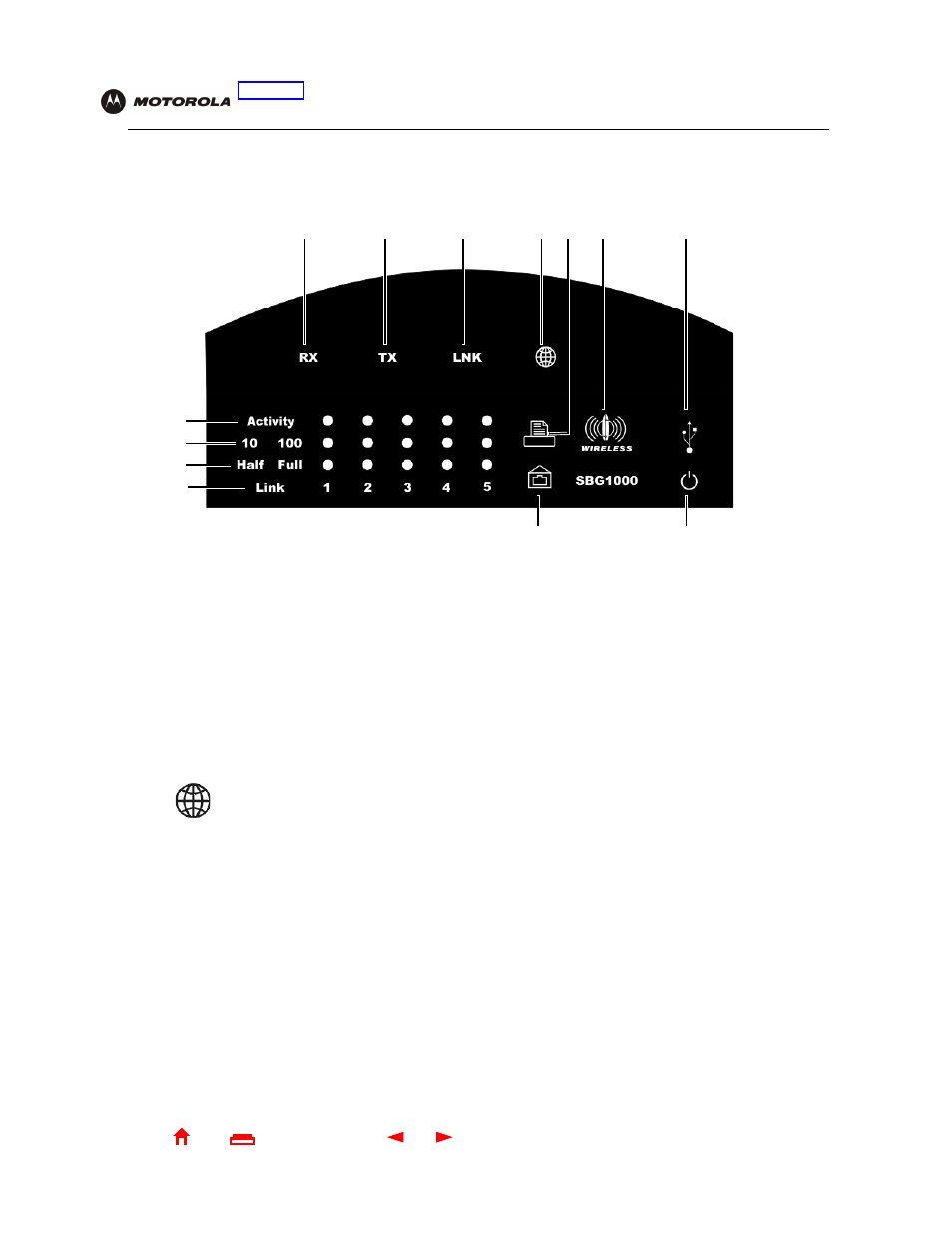

Front Panel
The front panel provides indicator lights:
Front-panel top section lights
Key Light
Flashing
On
1
RX (Receive)
Scanning for a receive (
)
channel connection
The downstream channel is connected
2
TX (Transmit)
Scanning for a send (
channel connection
The upstream channel is connected
3
LNK (Link)
Scanning for a network connection
The startup process is complete and the
SBG1000
is
online
4
Transmitting or receiving data
Never solidly on
1
2
3
4
10
7
12
5
6
13
11
8
9
