- 5

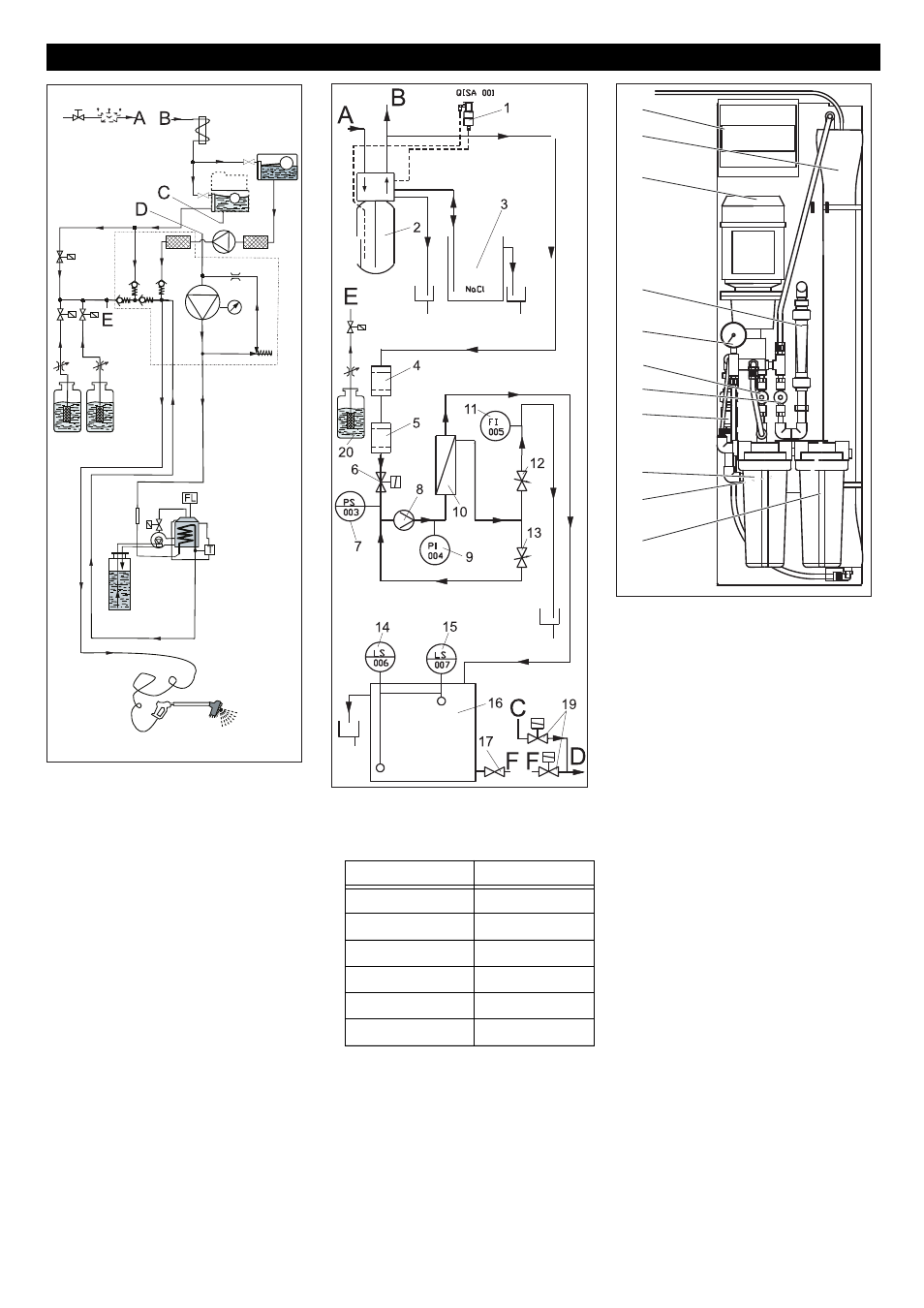

Flow -chart SS wash
Flow-chart ABS WSO
Hose connections to be established:
1 Hard water sensor
2 Base exchanger
3 Salt tank
4 Finest filter
5 Active carbon filter
6 Inlet valve
7 Pressure switch - Water scarcity
8 Pump
9 Manometer for operating pressure
10 RO membrane
11 Flow meter for concentrate
12 Valve for concentrate
13 Valve for operating pressure
14 Level switch Buffer tank is full
15 Level switch Buffer tank is empty
16 Buffer tank for permeate
17 Locking valve for permeate tank
18 Controls
19 Solenoid valve block soft water/ perme-
ate (built-in in SS wash)
20 Detergent container (Chem 3)
Function
SS Wash ABS WSO
A A
B B
C C
D D
E E
F F
4
7
5
6
12
13
9
11
8
10
18
19 EN
