Installation guide
Parts QTY PARTS QTY
MCW6000-NX™ water-block 1 6-32 x 7/8” Philips screws 4
Worm drive clamps 2 .600 x .250 Nylon spacer 4
SP4 hold-down plate 1 4-40 Nylon retaining washers 4
This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to
your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The
following instructions are subject to change without notice. Please visit our web site at
www.swiftnets.com for updates.
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 S604-NOCONA Motherboard & CPU assembly
3 1 spring-backplate retention spring (provided by motherboard vendors)
4 1 chassis
5 4 STANDOFF-0.187
6 1 MCW6000-FLAT MCW6000 waterblock flat base
7 1 SP4-Bckt SP4 Holding plate for Intel Pentium 4 and Xeon
9 4 90272A152-6-32x7-8-philips 6-32 x 7/8" (22mm) Philips screw
10 4 4-40 nylon retaining washer 4-40 nylon retaining washer
11 4 custom_spacer-r1 Nylon spacer .600 x .250 (15 x 6mm)
6
7
1
1 1
1 0
3
5
4
9
Copyright Swiftech 2004 – All rights reserved – Last revision date: 11-23-04
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28
th Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769 - E Mail:
[email protected] – URL: http://www.swiftnets.com - Information subject to change without notice Page 26 of 38

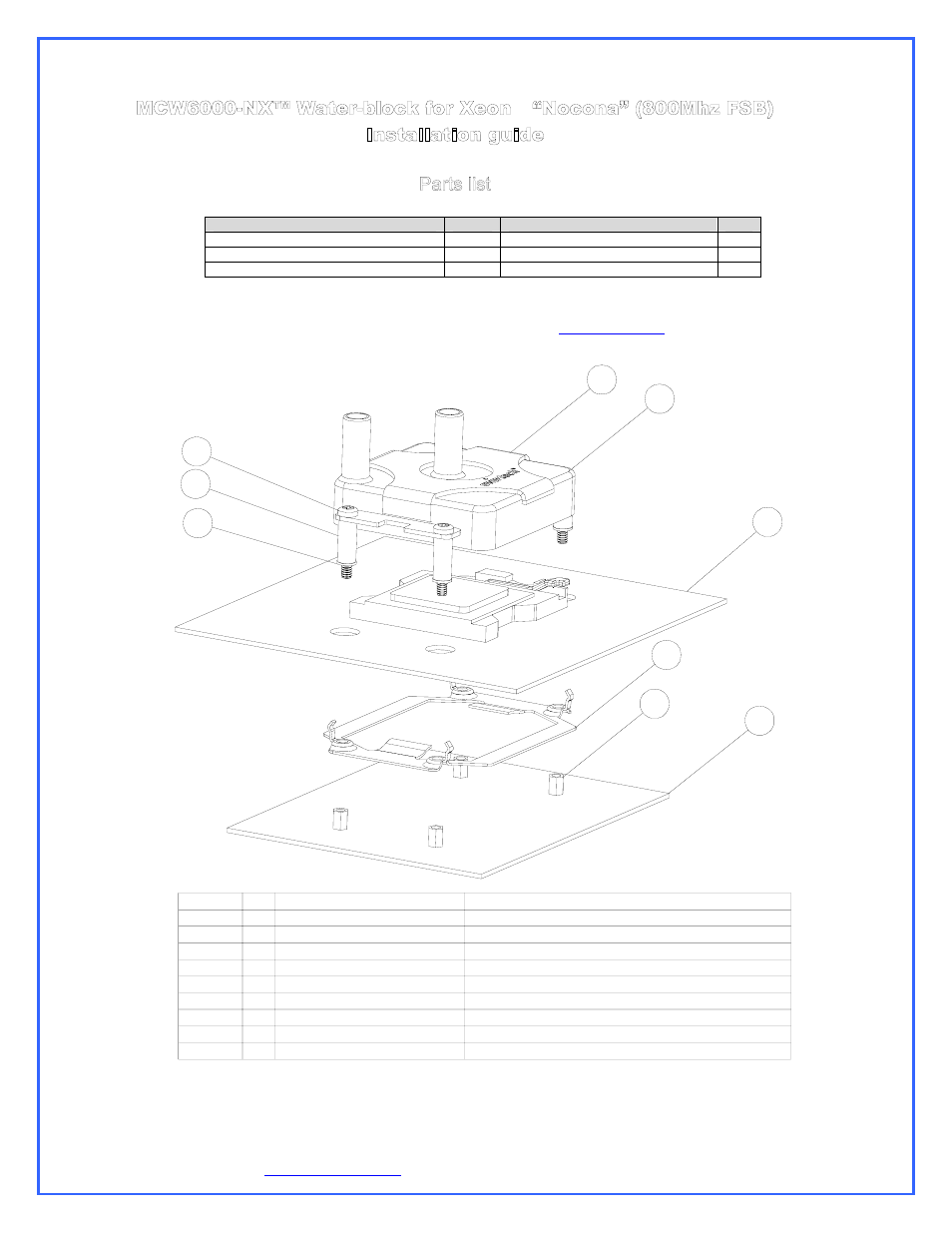

Figure 1
