Swiftech MCW20 R User Manual
Parts list, I. preparation steps common to both platforms
Swiftech Inc., 1703 E. 28
th
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
Parts list
Common parts to both platforms
Intel platform specific parts
AMD platforms specific parts
Part
Qty
Part
Qty
Part
Qty
MCW20 ™ assembly
1
Neoprene pads (strip of 4)
1
4-40 x 1 1/2” Philips screws
2
Tube inserts
2
4-40 HOOKS
2
Black fiber washers
6
Arctic Alumina Thermal
compound
1
Nylon tension limiter ½”
2
4-40 mini-nuts
2
4-40 x 3/16” socket screw
0.880” Spring
2
0.300” Spring
2
Socket wrench tool
2
Long bracket (1.10”)
2
¼” tension limiters
2
1
Acorn nuts
2
Short bracket (.71”)
2
Knurled
knobs
2
This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in damage
to your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The
following instructions are subject to change without notice. Please visit our web site at
I. Preparation steps common to both platforms

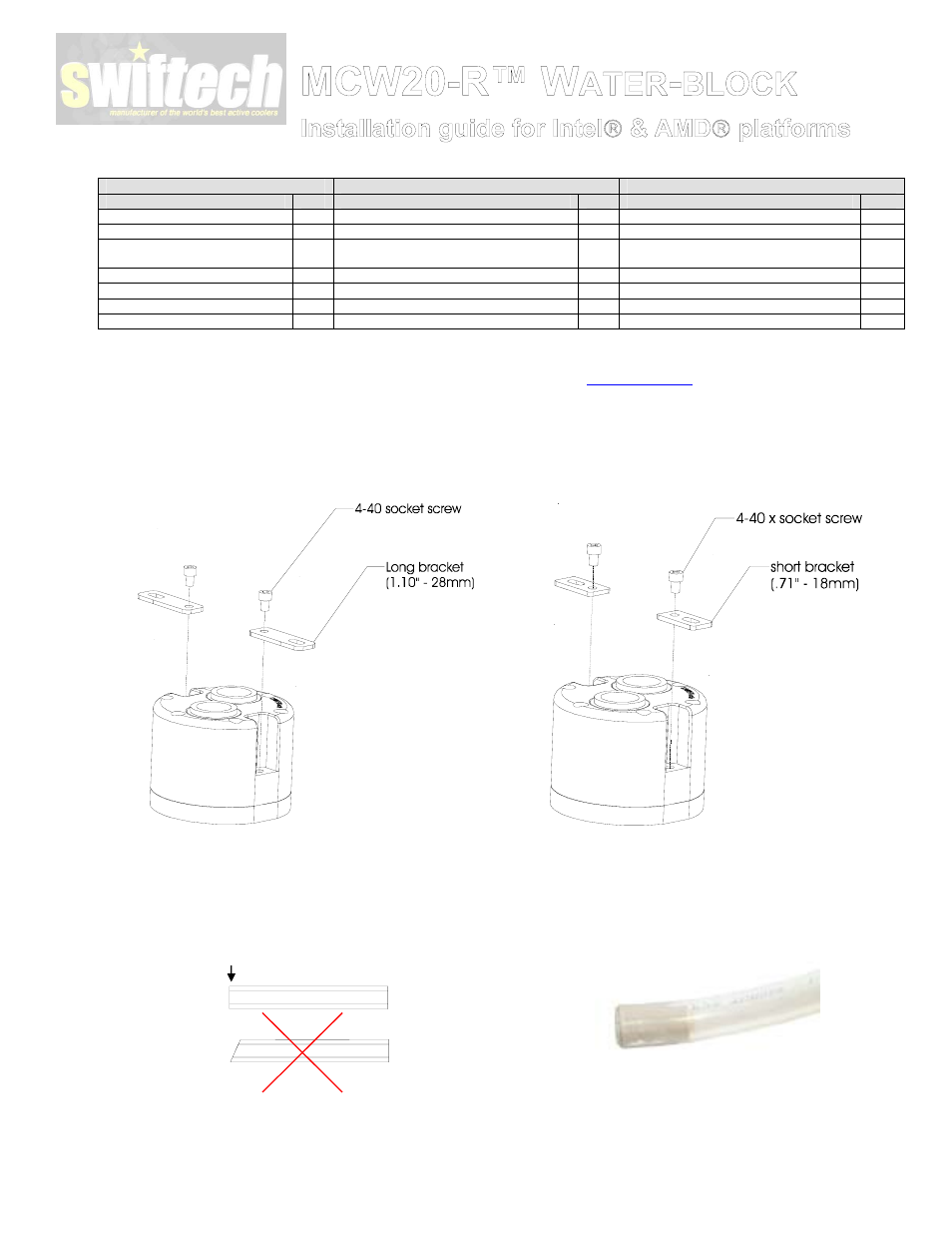

Step 1: Pre-installation assembly schematics
Attach the brackets to the water-block with the provided socket wrench tool.
Intel
Platforms
AMD
platforms
Figure 1
Figure 2
Step 2: Prepare the tubing
a. Prepare two pieces of tubing of sufficient length to connect to the
rest of your circuit. The cuts must be square as shown in figure 1 or
leaks may occur:
b. Install the provided plastic tube inserts at each end of the
tubes, as shown in figure 4: these inserts are absolutely imperative
when using any kind of soft tubing, such as vynil, ClearFlex,
Taigon, etc...
Square cut
Figure 3
Figure 4
Page 1 of 2
