Swiftech H20 120 R3A - Manual (Page 17)

Parts list
Parts QTY PARTS QTY
MCB-120™ Housing assembly 1 Coolsleeves™ 20” (*)
Retention hardware (screws, etc.) 1 PCI Pass-Thru kit 1 (*)
½” tubing 2’ (*) Worm drive clamps 4 (*)
(*) Only included with complete kit
1. PCI PASS - THRU KIT INSTALLATION

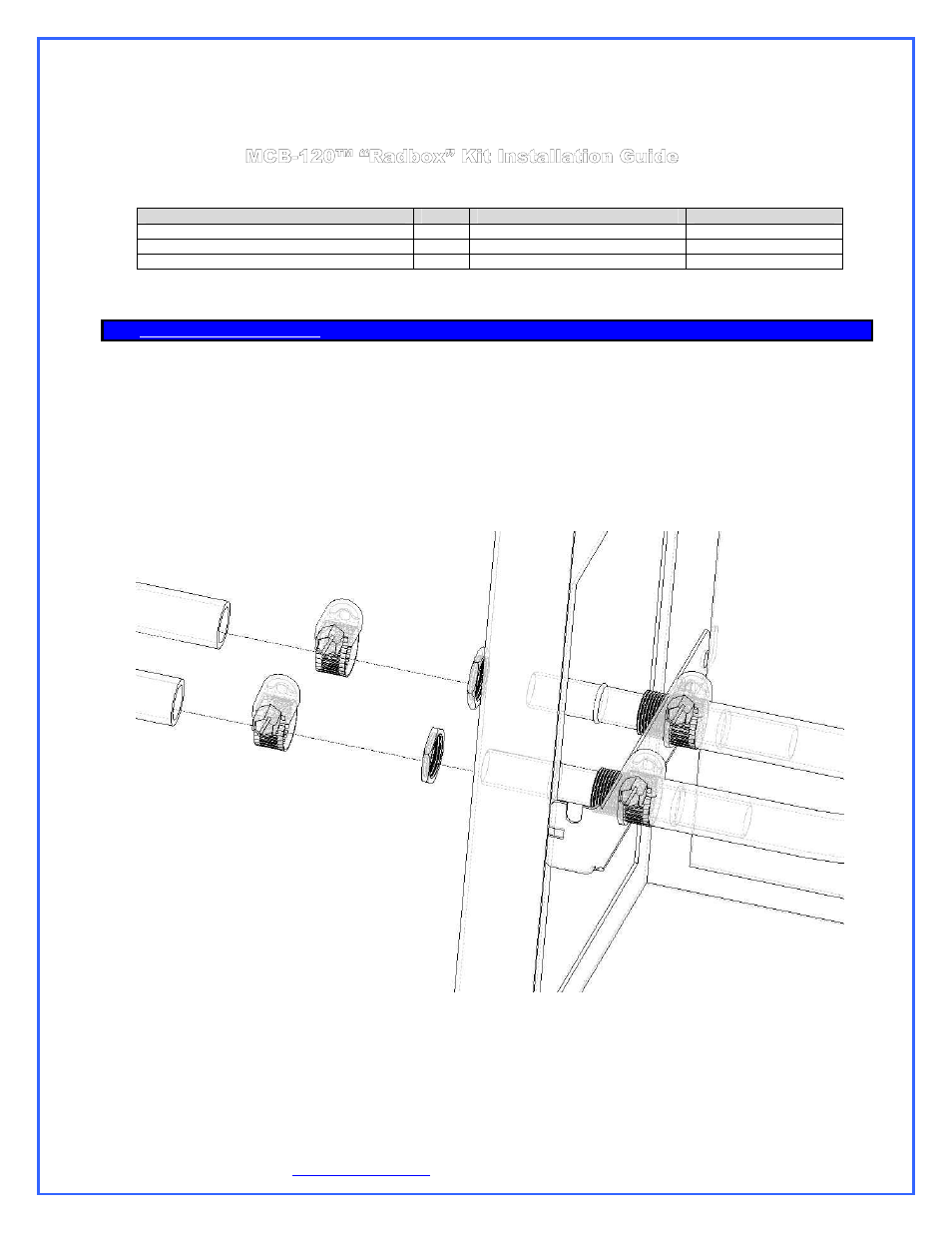

o Insert the PCI bracket into an available opening, and secure it to the chassis.
o Insert your fan electrical connector through the slotted hole of the PCI bracket now. Only 3-pin
connectors (the type that connect to the motherboard) are small enough to pass through the slotted hole.
4-pin Molex connectors (the type that connect to your power supply) will require that the terminals be
removed from the Molex housing first.
o From inside of the chassis, insert the pass-thru adapters through each hole of the PCI bracket. The
threaded portion of the adapters should be exposed outside of the case.
o
Screw the nuts to the adapters. The nuts are designed to slightly overlap the edges of the PCI chassis
opening, to provide a more secure installation.
